5.6 Installing the WiFi Module (For RT860i)

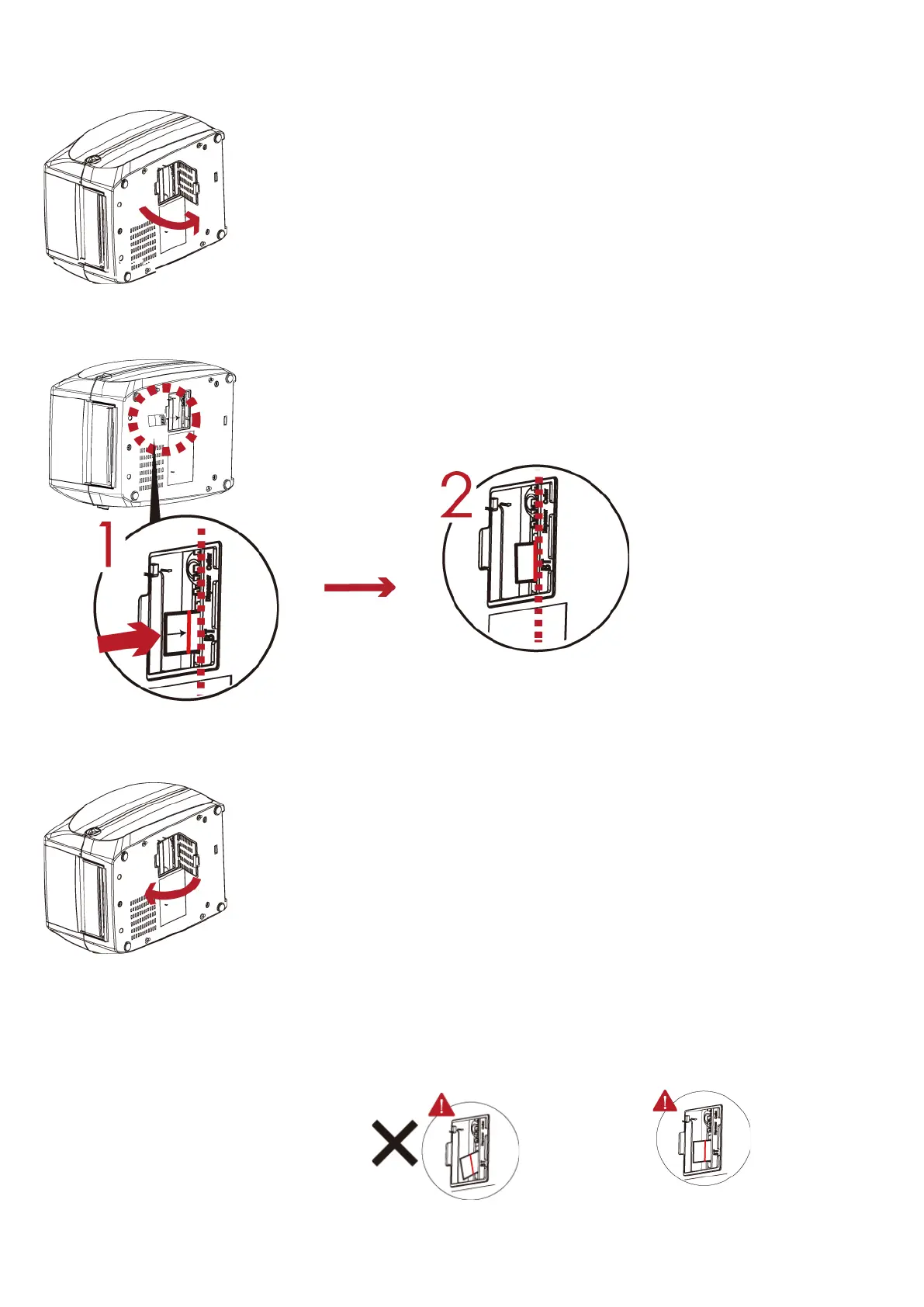

Step 1.
Step 2.
Step 3.
Note
1. Incorrect installations below must be avoid.
2. Power off before installing the WiFi module.
* Due to RT800i Series WiFi module message communication through LAN port, please make sure WiFi module has been removed when you
want to use LAN port.
Module not inserted parallel
to the mainboard.
Module not completely inserted.
Power off and open the option cover.
Insert Bluetooth module into the slot.
Push the module till the indication line
aligns to the edge of mainboard to avoid
signal error.
Close the option cover.
