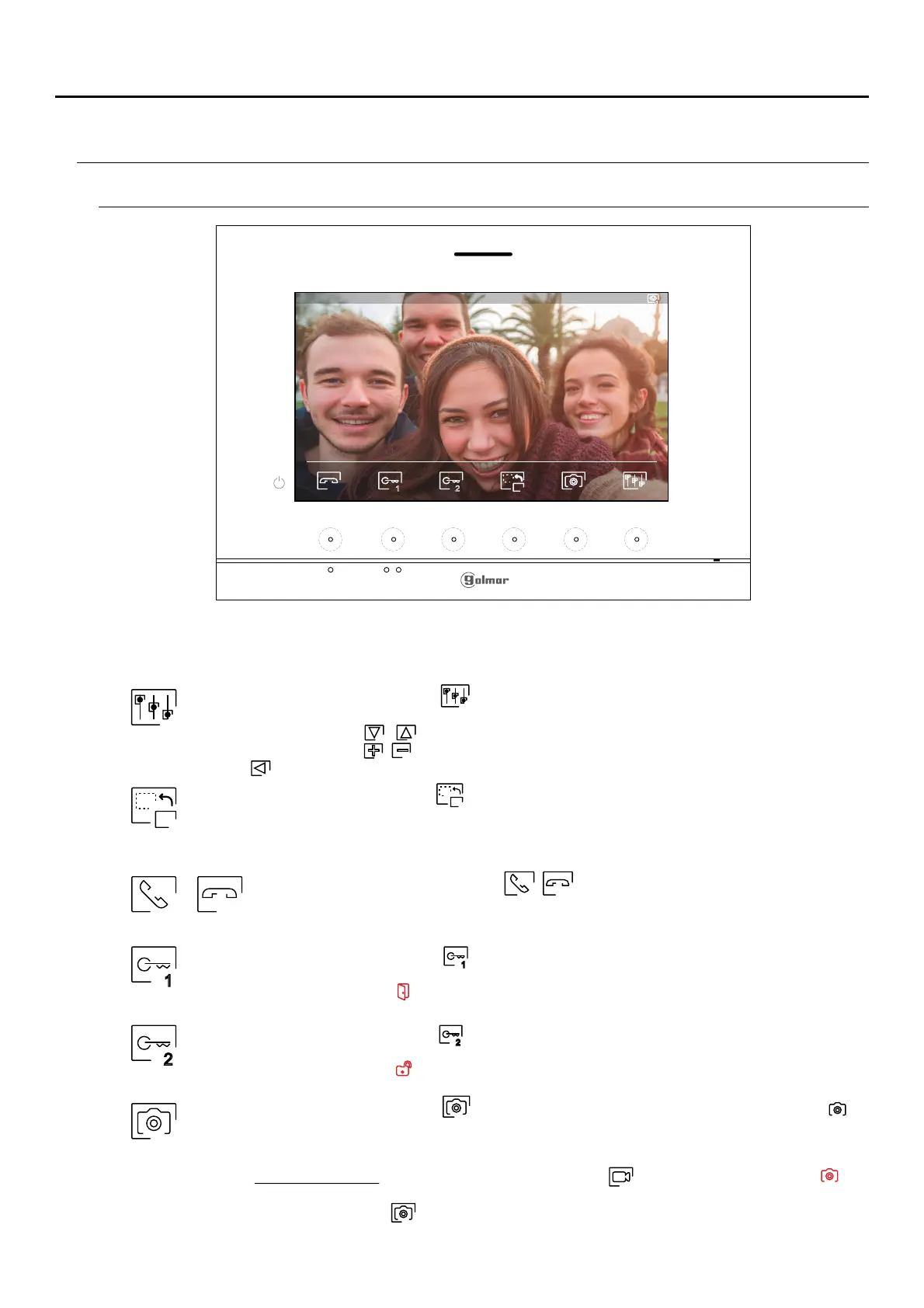

Communication screen
SOU S5110/ART 7 VIDE ENTL O DOOR RY SYSTEM KIT
This screen is displayed during a communication process. In the top centre of the screen, the date and time are
shown and, on the right, the source of the image is displayed (door panel 1, door panel 2, camera 1 or camera 2).
Press the hidden button below icon / to start or end audio communication with the
door panel displayed respectively. Communication has a maximum duration of 90
seconds. Once communication has ended, the screen will turn off.
Press the hidden button below icon to change the source of the image as long as the system has
more than one door panel or has an external camera connected and display has been activated
(see pp. 32-34). This enables the door panel camera to be changed, the audio of the
corresponding door panel to be activated and the door to be opened.
Press the hidden button below icon to take a picture. In the top left of the screen, icon is
displayed.
Note: If a Micro SD card is inserted, a 15-second video automatically starts recording a few seconds
after . In the top left of the screen, icon is displayed and indicator will
illuminate (see p. 14 to configure video recording mode). Then a short 1-second press on the
hidden button below icon will take a photograph or a long 2-second press will record a video.
receiving the call
Press the hidden button below icon to access the image and monitor in communication volume
settings menu. Go to the option to be modified by pressing the hidden buttons below
corresponding icons / , change to the desired level by pressing the hidden buttons below
corresponding icons / and validate the changes made by pressing the hidden button below
icon , (see p. 19).
1 2
0 -0 -21 7 019 11:17:10
1
Press the hidden button below icon to activate the lock release (or device connected to the CV
output of the door panel) for 3 seconds(factory setting, programmable by the installer; see pp. 32-34 .
During activation, indicator will illuminate.
)
Press the hidden button below icon to activate the lock release (or device connected to the relay
output of the door panel) for 3 seconds ( )factory setting, programmable by the installer; see pp. 32-34 .
During activation, indicator will illuminate.
1
2
1
2
