30

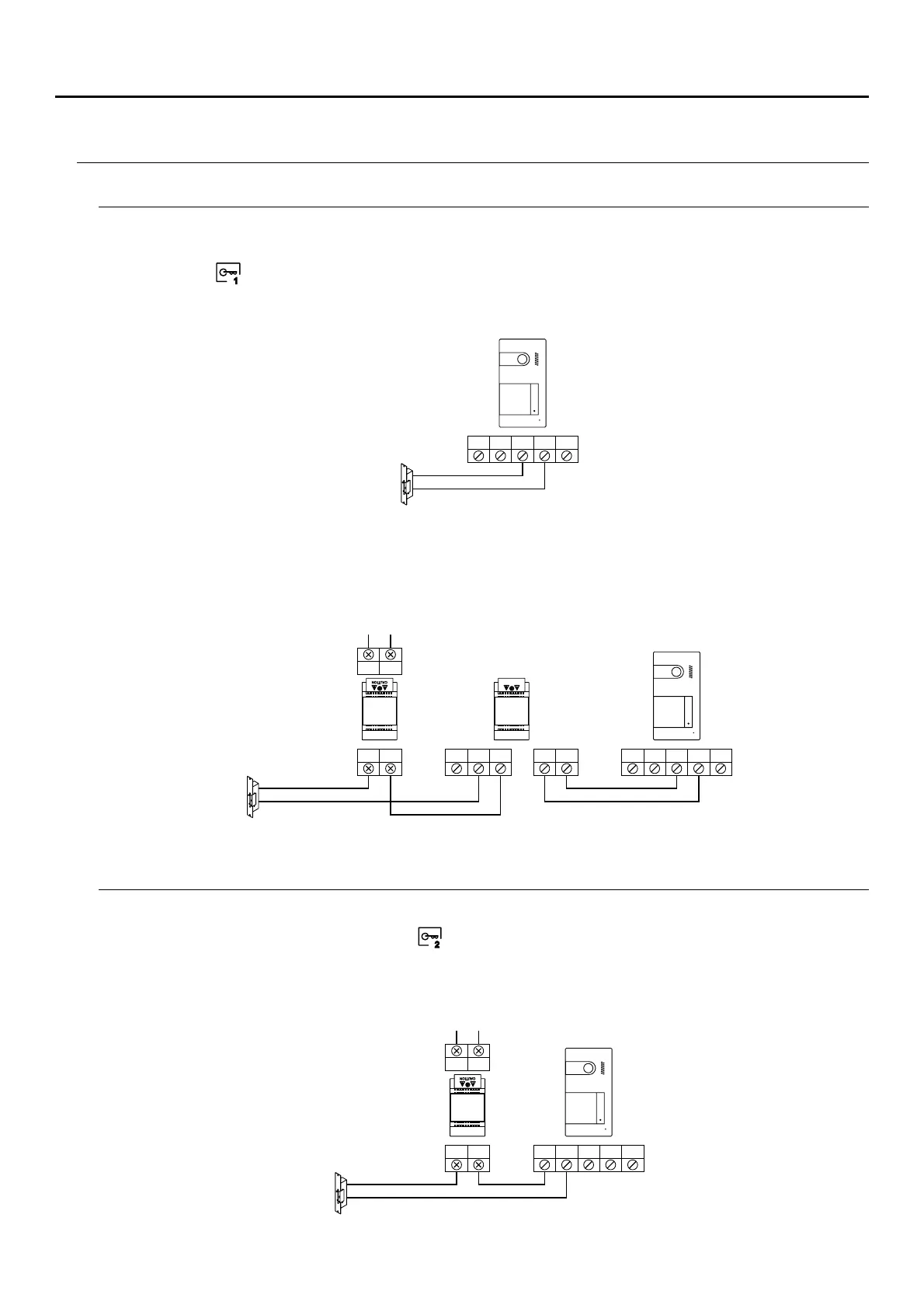

WIRING DIAGRAMS
Connection of a lock release
Connection of an auxiliary device at the relay output
The drawing shows the connection of a 12Vdc lock release, with a maximum consumption of 270mA. The use of
Golmar CV-14/DC, CV-24/DC, CV-14P/UNI or CV-24P/UNI models is recommended. Activation is carried out
through icon
.
The activation time is 3 seconds, with the possibility of setting it to between 0.5 and 10 seconds (see pp. 32-34).
The activation time is 3 seconds, with the possibility of setting it to between 0.5 and 10 seconds (see pp. 32-34).
The drawing, by way of example, shows the connection of a second AC lock release. The relay can switch 6A / 24V
loads.Activation is carried out through icon
.
If the lock release to be used is alternating current, use a relay and transformer suitable for the consumption, as
well as the varistor supplied. The example shows a Golmar SAR-12/24 relay and a TF-104 transformer (12Vac /
1.5A)
CV-BUS CV+ AP+BUS
CV-BUS CV+ AP+BUSININCNC NA
PRIPRI
Mains
100~240V ac
SECSEC
GNDC CCTV AP-NA
PRIPRI
Mains
100~240Vca
SECSEC
SOU S5110/ART 7 VIDE ENTL O DOOR RY SYSTEM KIT
1
2
SOUL PANEL/1
SOUL PANEL/1
SOUL PANEL/1
SAR-12/24
TF-104
