4

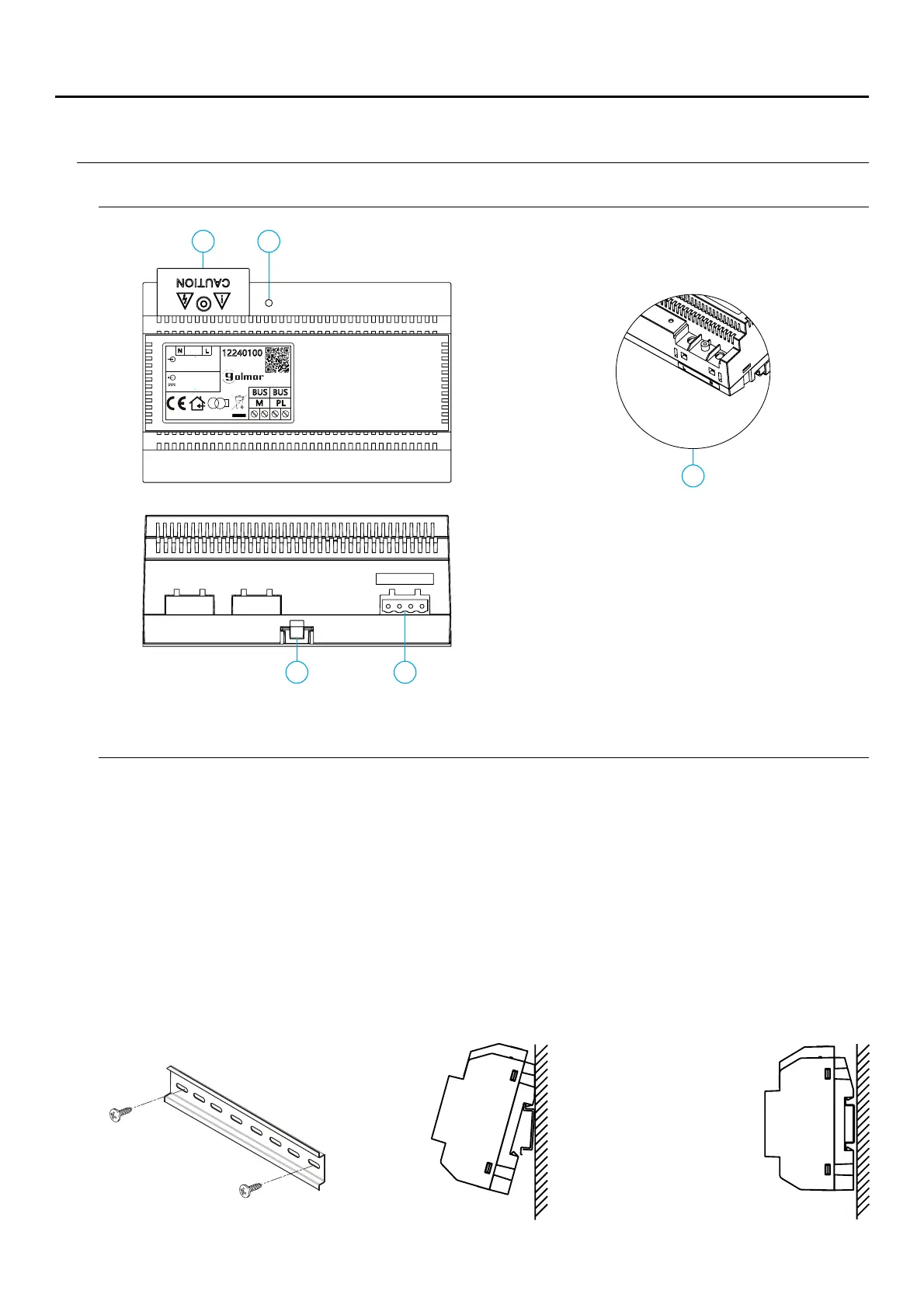

FA-G2+ POWER SUPPLY
Description
B
D. Fastening tab on DIN rail.
A. On/off indicator light.
B. Protective current input cover.
C. Detail of current input terminals without protective
cover.
E. Installation terminals.
A
ED
BUS(M) BUS PL( )
Installation
Install the power supply in a dry, protected and ventilated location. Make sure that the vents are not obstructed.
Use a DIN 46277 rail for fastening (8 elements).
To prevent electric shock, do not remove the protective cover without first disconnecting the power supply. Replace
it once all connections have been made
.
Connect the wires to the installation terminals following the instructions in the diagrams.
The fitting and handling of the power supply must be carried out by authorised personnel in the absence of
electrical current
.
Note that current regulations stipulate that the power supply must be protected by a circuit breaker.
C
12240100
OUTPUT
N
L
GOLMAR S.A. C/ Silici, 13 08940 - SPAIN
MADE IN CHINA
BUS 30V 2V 1.2A±
INPUT ~100-240V
0.8A 50-60Hz
FA-G2+
PL
BUS BUS
SOU S5110/ART 7 VIDE ENTL O DOOR RY SYSTEM KIT
