NOTICE
The battery system supports capacity expansion. A maximum of 5 battery modules can
be used to extend the usable energy of the battery system. Strictly follow the expansion
requirement. For details, please contact the Dealer or Manufacturer. Otherwise, undervoltage,
overvoltage or voltage dierence might occur to the battery system.
The battery system, which consists of a power control unit (PCU for short) and battery modules,
can store and release the electric energy according to the requirements of the solar energy
storage system. The input and output ports of the energy storage system are high voltage direct
current ports.
LX F6.6-H
6.55kWh
LX F9.8-H
9.83kWh
LX F13.1-H
13.10kWh
LX F16.4-H
16.38 kWh
A max of eight battery systems can be parallel connected in one energy storage system. Ensure
that the usable energy of each battery system is the same.

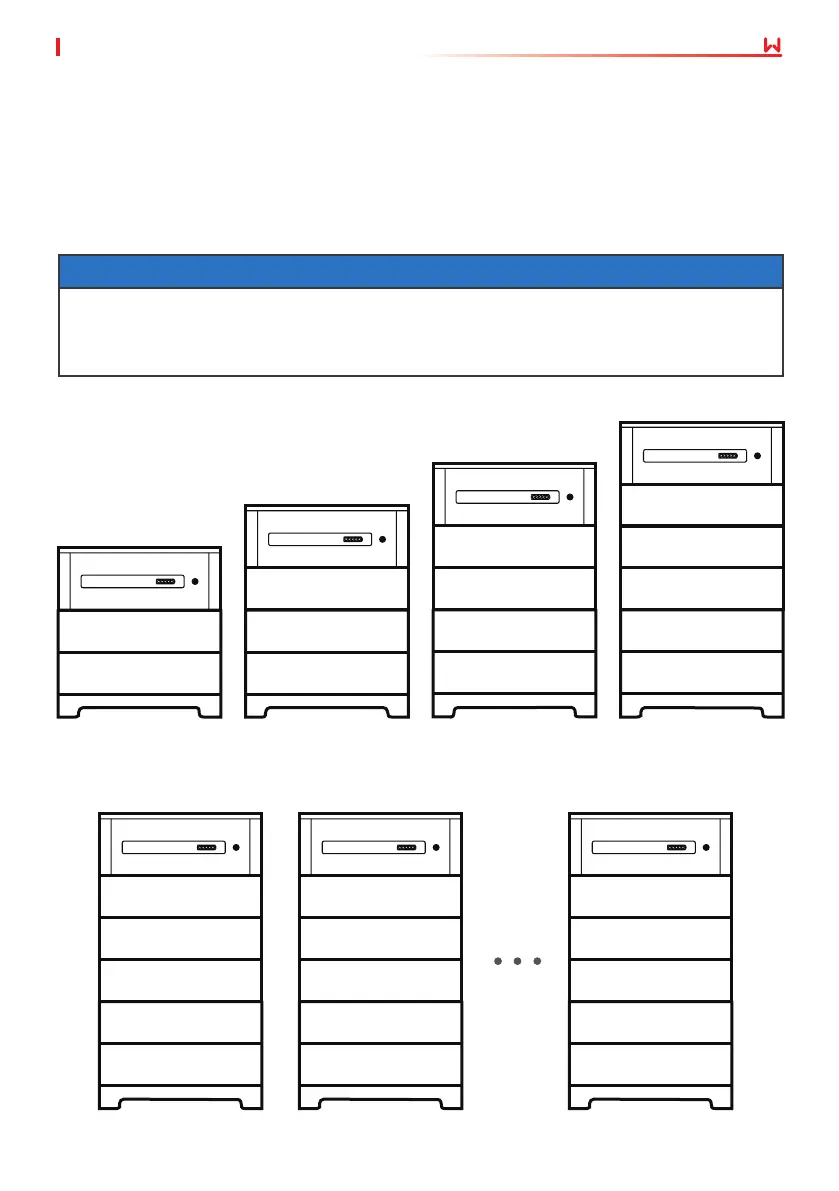

3 Product Introduction
3.1 Product Overview
PCU
PCU
PCU
PCU
Intended usage
Usable energy description
Battery 1 Battery 1 Battery 1 Battery 1
Battery 3Battery 3
Battery 2 Battery 2 Battery 2 Battery 2
Battery 4Battery 4
Battery 5
Battery 3
Battery system 1 Battery system 2 Battery system N
2≤N≤ 8
