Goodwe Lynx Home F Plus+ Series User Manual

35
07 System Operation
User Manual V1.9-2023-04-30
7.2 Power ON the Battery System
Inverter
Breaker (only
for Australia)
Air switch
Battery
System
NOTICE
• The DC breaker between the inverter and the battery (DC Breaker 2), and between the two
batteries (DC Breaker 5), shall be installed in accordance with local laws and regulations.
• The breaker should isolate both positive and negative conductors simultaneously.

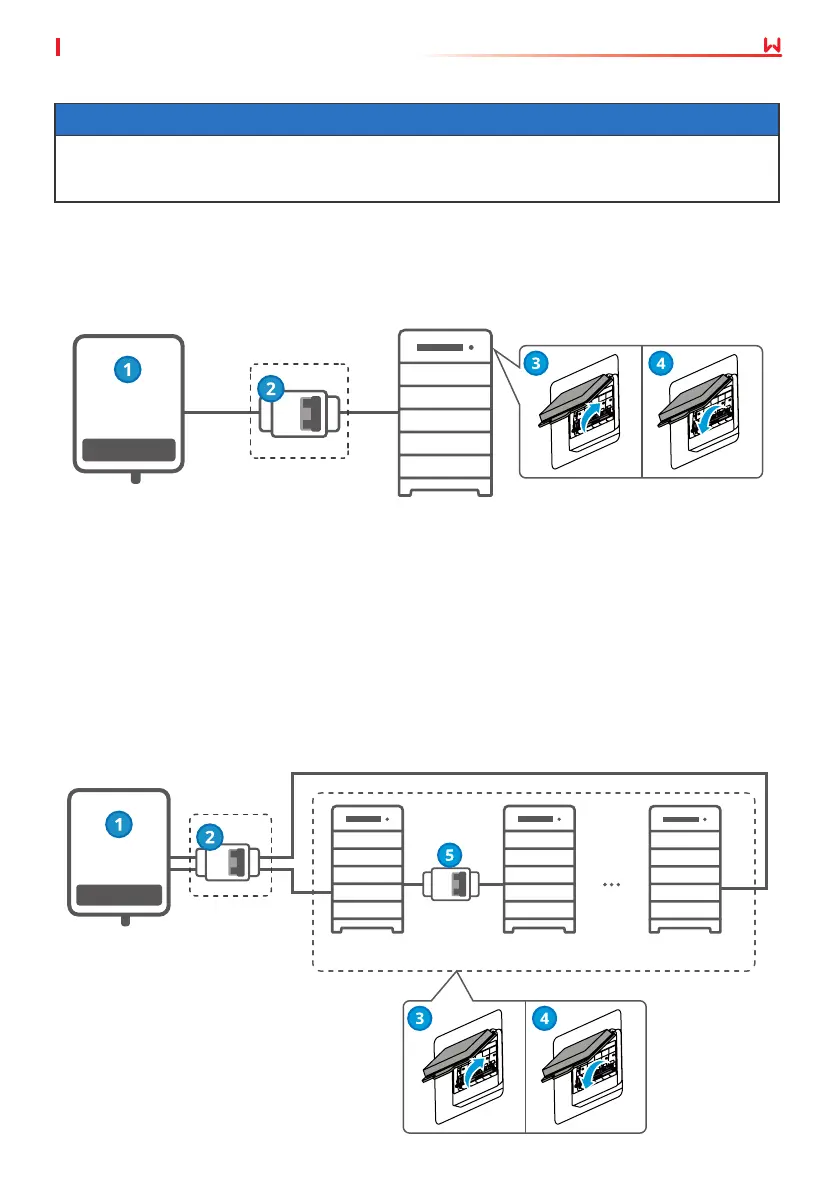

Step 1: (Optional) Turn on the breaker between the inverter and the battery system.
Step 2: Turn on the air switch of the battery system.
Step 3: Turn on the inverter in the system following the instructions in the user manual of the
inverter.
Step 1: (Optional) Turn on the breaker between the inverter and the battery system.
Step 2: Turn on the breakers between the battery systems.
Step 3: Turn on the air switches of the battery systems in turn.
Step 4: Turn on the inverter in the system following the instructions in the user manual of the
inverter.
Inverter
Battery
System 1
Battery
System 2
Battery
System N
DC Breaker
(Only for Australia )
DC Breaker
(Only for
Australia )
2≤N≤ 8
Parallized battery systems
Only for Lynx home F Plus+ series.
