Goodwe Lynx Home F Plus+ Series User Manual

23
06 Electrical Connection
User Manual V1.9-2023-04-30
NOTICE
• Connect the PE cable rst before installing the equipment. Disconnect the PE cable before
dismantling the equipment.
• The drawing force of the cable after crimping should be at least 400N.
• Connect the PE cable to the PCU or to the base in the same way.
• The PE cable should be prepared by the customer. Recommended specications:
• Type: single-core outdoor copper cable
• Cross-sectional area: 4-6mm
2
6.3 Connecting the PE cable
Only for Lynx home F Plus+ series.

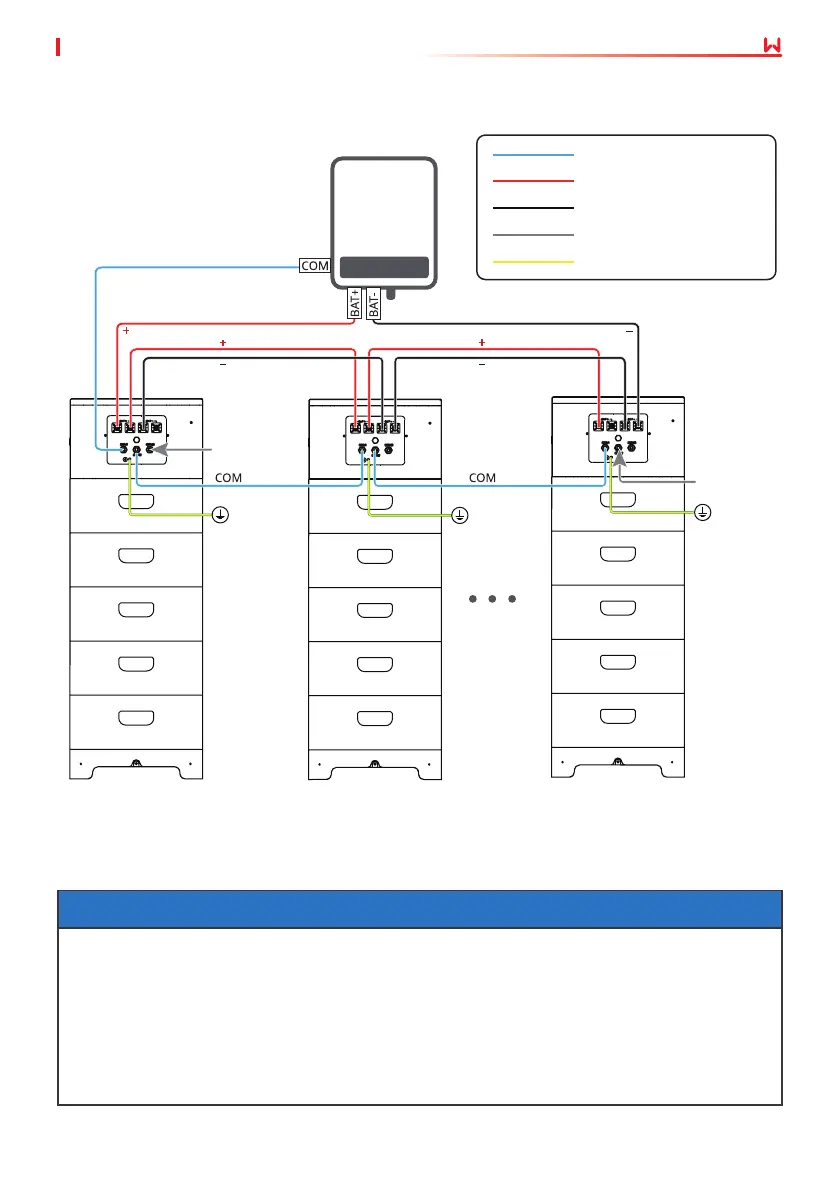

Parallized battery systems
Terminal
resistor
Terminal
resistor
Terminal resistor
Battery System 1 Battery System 2 Battery System N
Ground Cable
Power Cable for Negative Pole
Power Cable for Positive Pole
2≤N≤ 8
Communication Cable
Inverter
