24
06 Electrical Connection
User Manual V1.9-2023-04-30

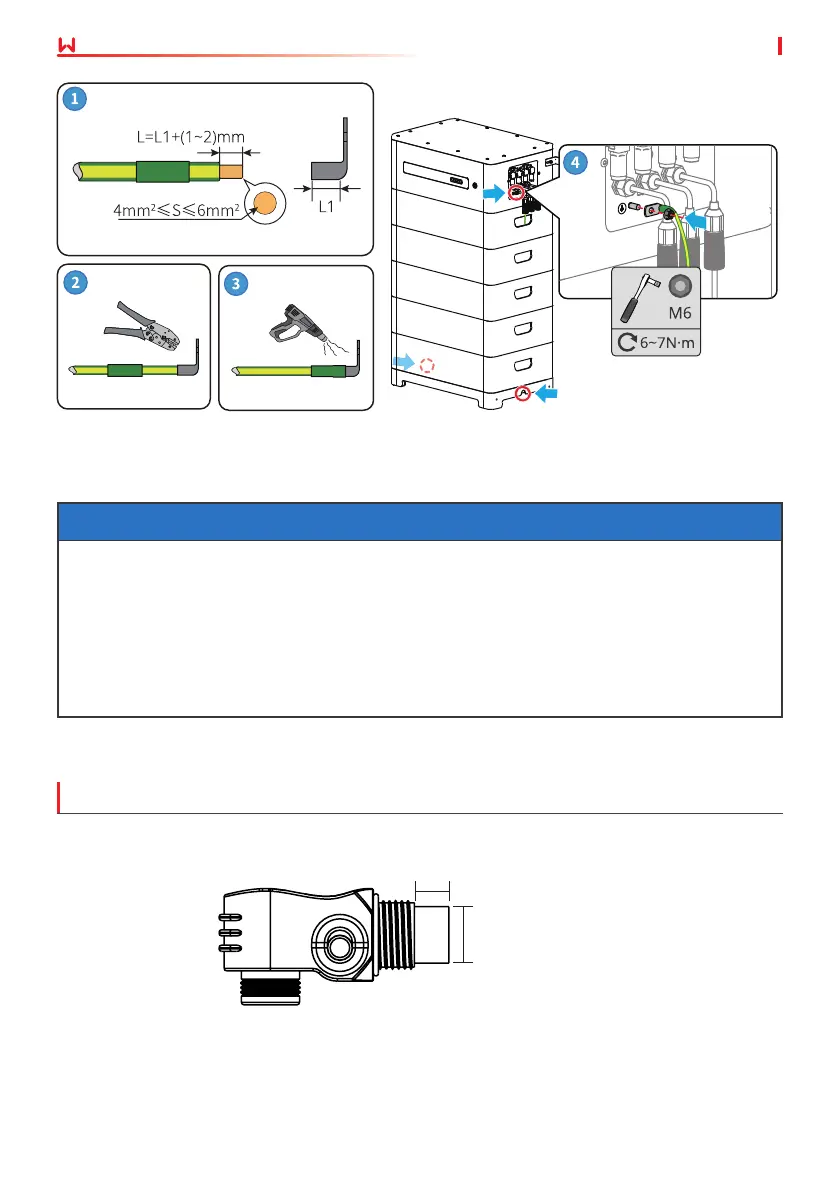

6.4 Connecting the Power Cable
NOTICE
Power o the battery system before connecting the power cable to avoid high voltage
danger.
The DC input cable should be prepared by customers. Connect the red power connector to
the red wire harness. And the black power connector to the black wire harness. The cable
should meet standards for outdoor use.
Install the back cover properly and make sure there is no space.
The unused ports shall be protected using a cover.
Grounding
point
Connecting the power cable (Type 1)
Crimping length: 7.5±0.2mm
Crimping hight:
7.5±0.2mm
