06 Electrical Connection
User Manual V1.9-2023-04-30
NOTICE

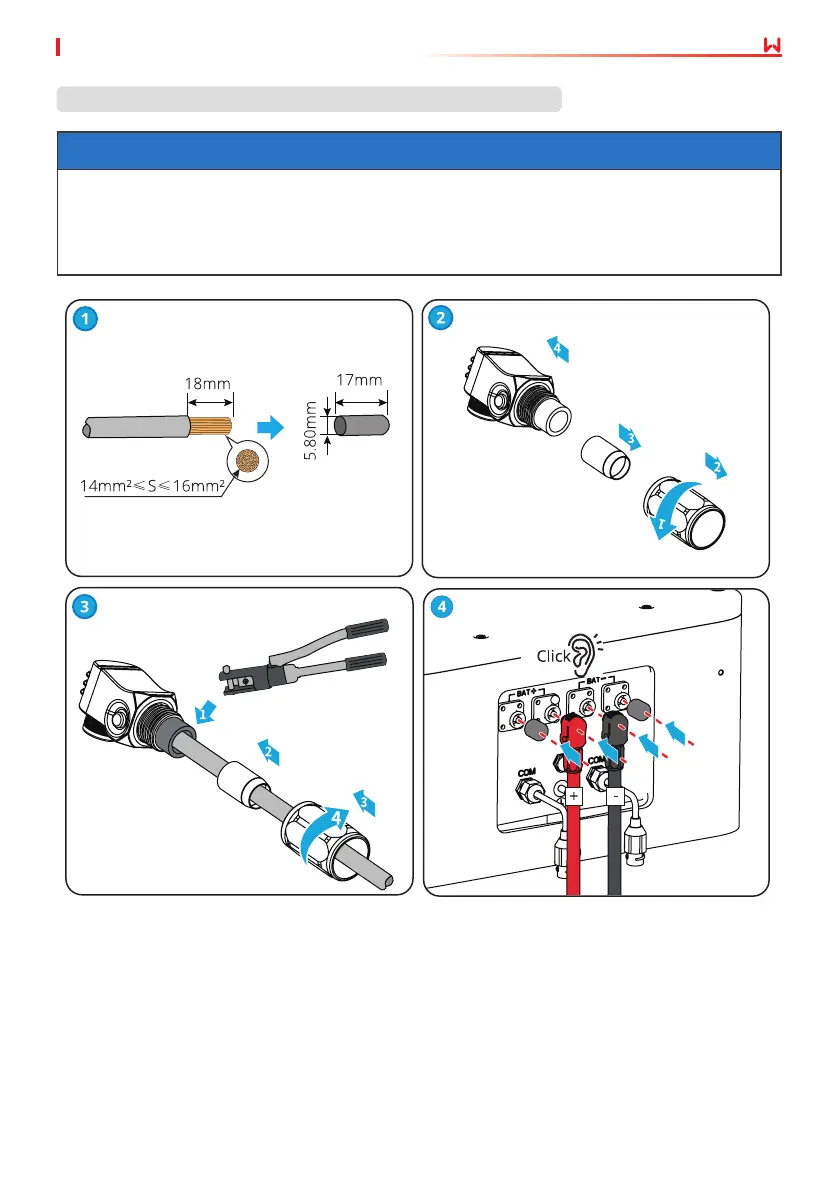

• Recommended tool: manual hydraulic press plier. Crimping hight: 7mm; moulding: 16mm
2
• The drawing force of the cable after crimping should be at least 1200N.
• The copper tube should be prepared by customers. Copper tube length: 17mm, copper
tube inner diameter: 5.80mm.
Cross-sectional area of the power cable S: 14mm
2
≤S≤16mm
2
