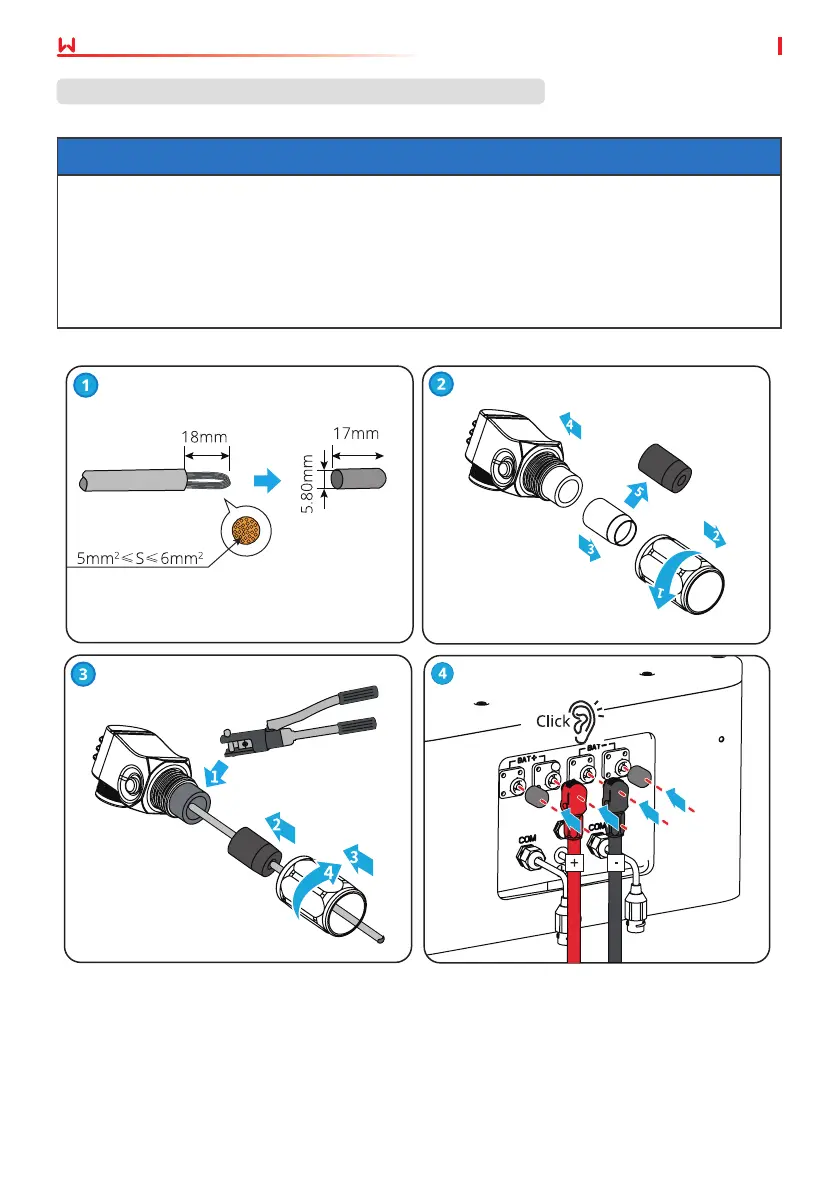

06 Electrical Connection
User Manual V1.9-2023-04-30
Cross-sectional area of the power cable S: 5mm
2
≤S≤6mm
2
NOTICE
• Replace the white seal ring inside the power connector with a black seal ring (inner
diameter 4.59mm) before crimping the power cable.
• Make sure the conductor cut is at after folding in half.
• The copper tube should be prepared by customers. Copper tube length: 17mm, copper
tube inner diameter: 5.80mm.
• The drawing force of the cable after crimping should be at least 500N.
