Goodwe Lynx Home F Plus+ Series User Manual

10
03 Product Introduction User Manual V1.9-2023-04-30

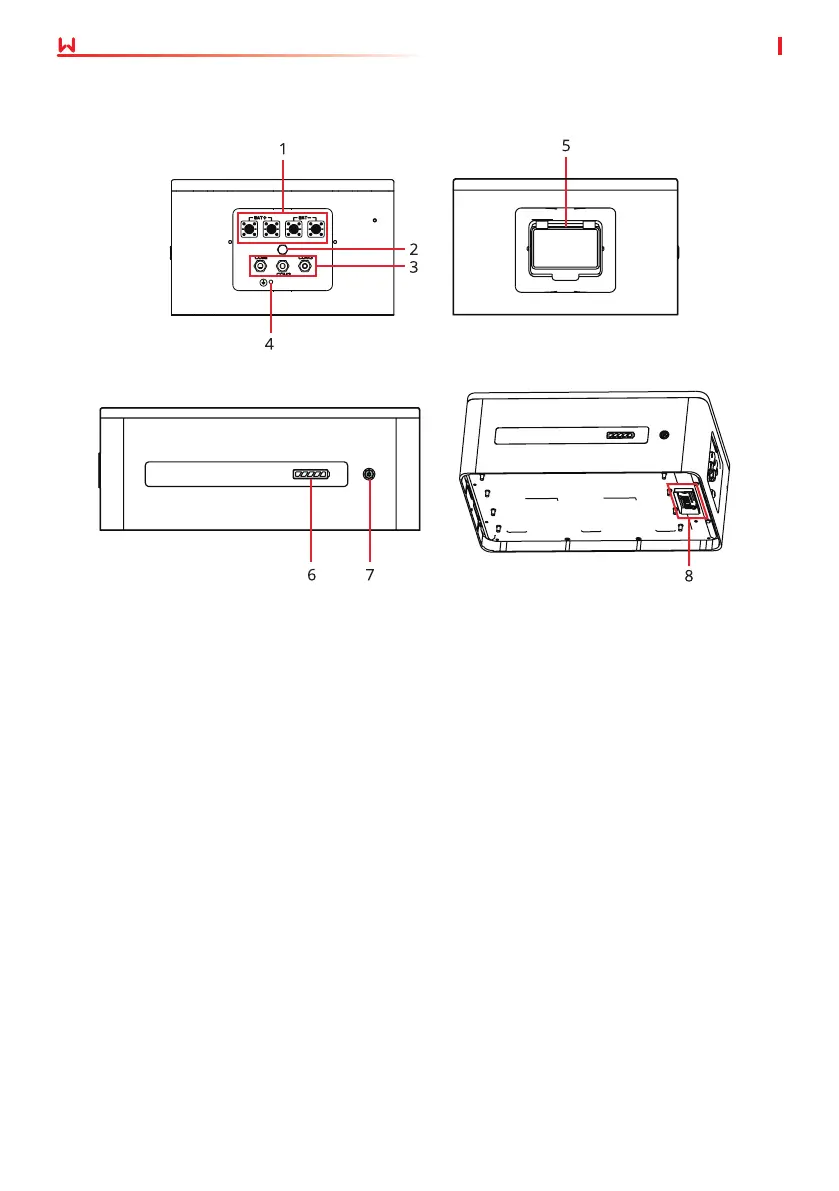

1. DC terminal (BAT) 2. Ventilation valve 3.
Communication terminal
(COM)
[1]
4. Grounding point 5 Air switch 6. SOC indicator
7.
Multifunction button
indicator
[2]
8.
Battery serial connection
interface
Right View
Left View
Front View Bottom View
[1]. Some models do not have the COM3 terminal, which is designed for battery system parallel
connection.
[2]. The multifunction button indicator is designed as an indicator, black start switch, and power
o button.
Power control unit appearance
