06 Electrical Connection

User Manual V1.9-2023-04-30

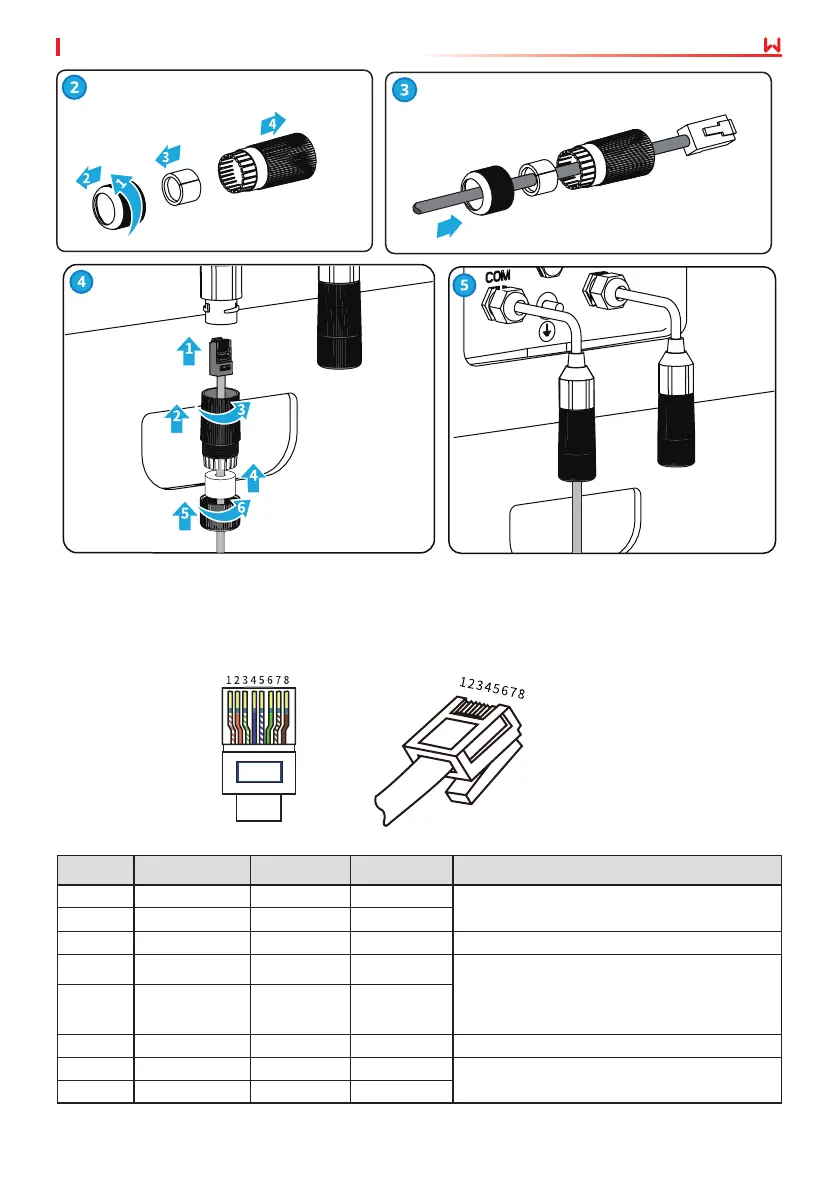

RJ45 Connector

PIN Denition

PIN COM1 COM2 COM3 Description

1 CAN_3H CAN_3H CAN_3H BMS communication for battery system

parallel connection

2 CAN_3L CAN_3L CAN_3L

3 N/A N/A N/A Reserved

4 CAN_2H N/A N/A

COM1: connects to the inverter BMS

communication port to communication

with the inverter

COM2, COM3: reserved

5 CAN_2L N/A N/A

6 GND GND GND PIN for grounding.

7 HVIL_IN HVIL_IN N/A

COM1, COM2: interlock function

COM3: reserved

8 HVIL_OUT HVIL_OUT N/A

Lynx home F Plus+ series
