116
4.1.2
Configuring
RAID
in
Legacy
Boot
Mode
ļ
Enter
the
RAID
card
configuration
int
erface
a)
During
the
BIOS
startup
proc
ess,
when
the
interface
shown
in

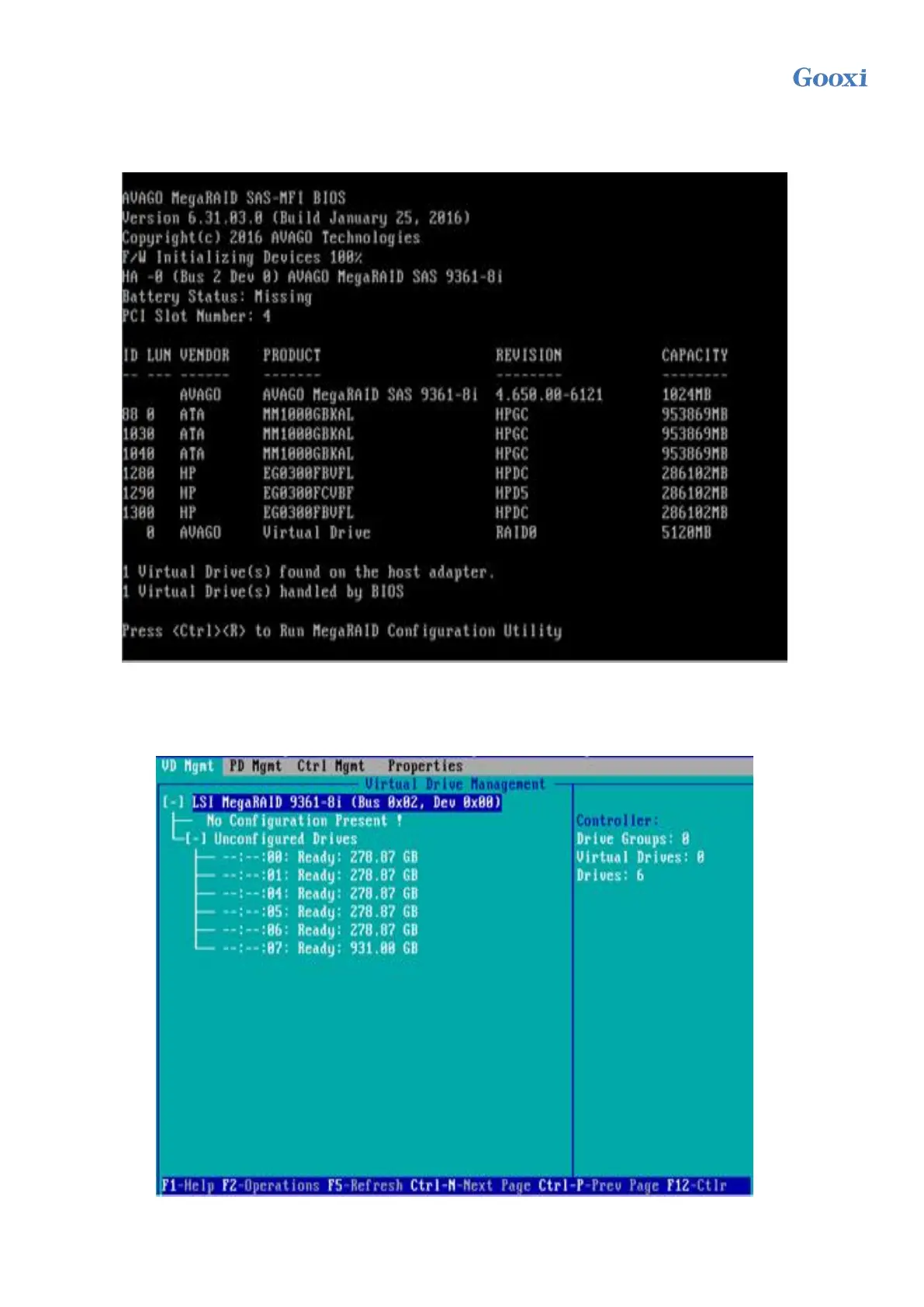

Figure
4
-83
is
d
isplayed,
press
Ctrl+R.
Figure
4-83
b)
En
ter
the
interface
shown
in
Figu
re
4-84.
Please
refer
to
th
e
key
operation
tips
on
the
lo
wer
border
of
the
interface
to
navigate
and
modify
settings
in
the
interfac
e.
Figure
4-84
116
