Version: V1.2 135
DynamicBMCDHCP, and DynamicBMCNonDHCP. Static is a static mode, you can manually set the IP address, DHCP
is a dynamic mode, setting this item allows BMC to automatically obtain an IP address from a DHCP server.
5.1.3 IPMI interface configuration Static mode
If you choose to configure Static mode for the IPMI interface, you should pay attention to the following issues:
(1) If there are multiple IPMI devices in your LAN, it should be noted that the IP addresses between the devices
cannot be repeated, otherwise communication cannot be established.
(2) If the IP of your IPMI device is an intranet address, the terminal device communicating with it must be in the
same network segment as the address of the IPMI device.
(3) The IP address of the IPMI device can be mapped to the WAN through the routing device to realize remote
management.
(4) The IPMI port has the function of obtaining an IP address through DHCP.
(5) IPMI supports TCP/IP v4 and TCP/IP v6 protocols.
Configure the IP address and subnet mask according to your actual situation. For example, here we set the IP address
to 192.168.0.236 and the subnet mask to 255.255.252.0, as shown in Figure 5-7 below. After setting, press F4 to save and
exit the BIOS interface.

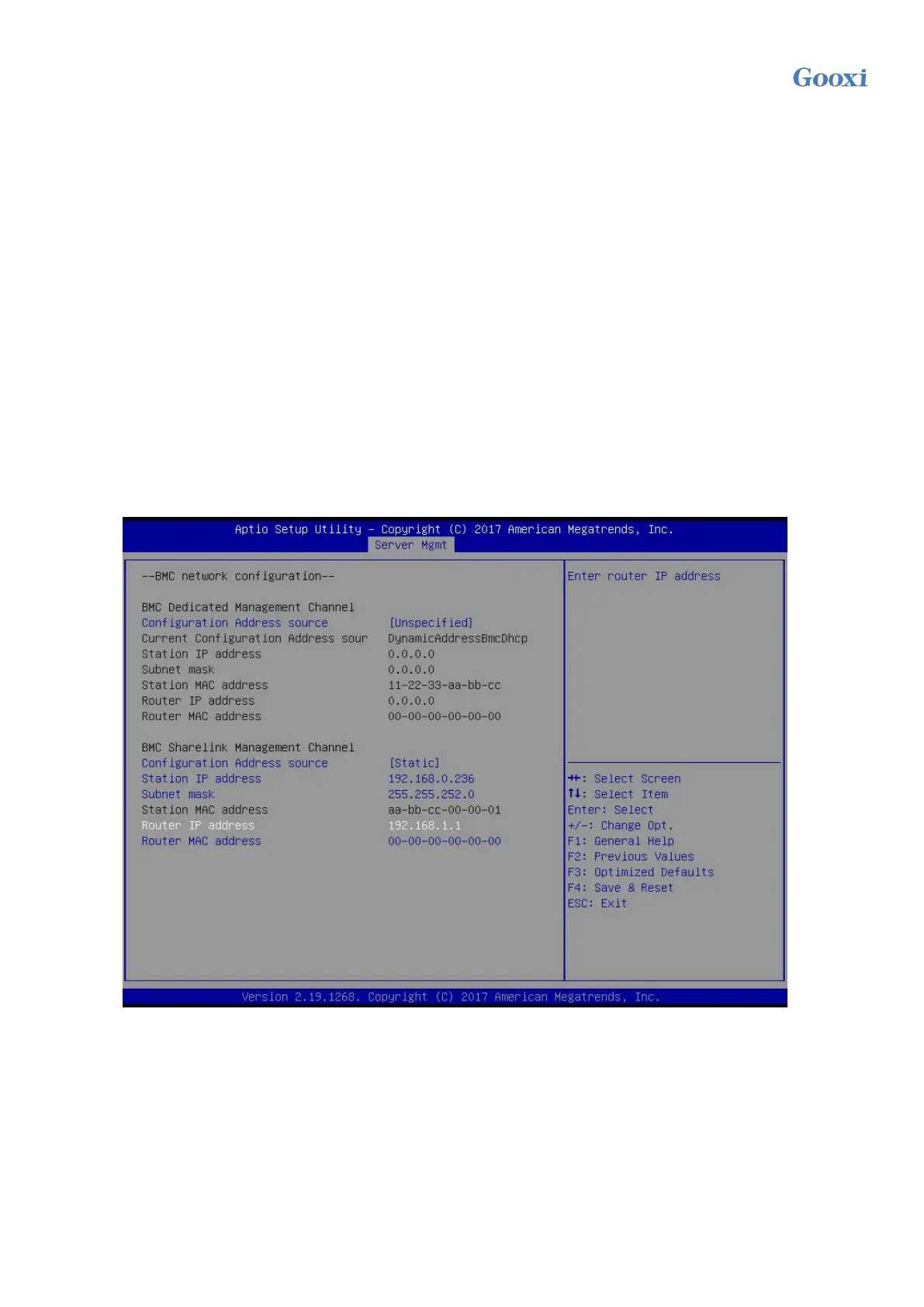

Figure 5-7 Satic mode settings
So far we have completed the operation of configuring the IPMI function.
5.1.4 IPMI configuration Java SOL
1. Press the <Del> key when the system starts to enter the BIOS setup interface.
2. Switch to the Advanced menu, select Serial Port Console Redirection, and press the <Enter> key.
