THERMAL BARCODE PRINTER SERIES 8
9. SHIFT
Description

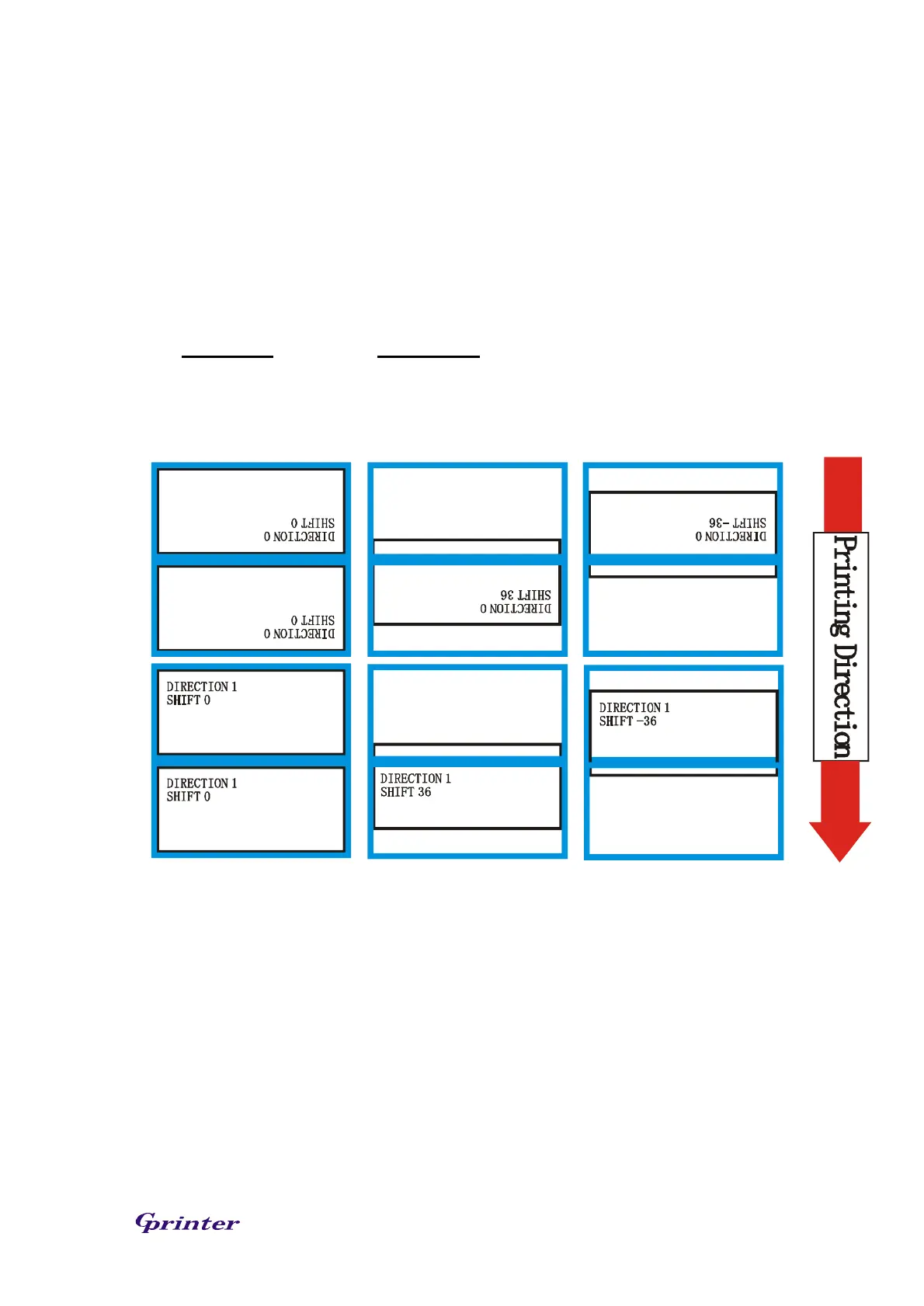

This command can be used to fine-tune the entire label up or down from its
current position. The position relates to the top edge of the label. A negative
value moves the entire label away from the top of the label; a positive value
moves the entire label to the top of label.
Syntax
SHIFT n
Parameter Description
n The maximum value is 1 inch. For 203 DPI printers,
the range is –203 to 203; The unit is dot.
Example
SIZE 3,2.5
GAP 2 mm,0
DIRECTION 0
SHIFT 0
OFFSET 0
CLS
TEXT 400,200,"3",0,1,1,"DIRECTION 0"
TEXT 400,250,"3",0,1,1,"SHIFT 0"
BOX 10,0,600,490,8
PRINT 3,1
See Also
OFFSET, REFERENCE
