7
Caution
1. Avoid measuring when battery low. (The unit will stop working if the battery voltage falls below 3.3V,
which may happen before the battery level shows 0%) Do not get the meter wet. Use a sealed plastic bag
if measuring in the rain.
2. Turn off the unit when not in use in order to conserve the battery.
3. When the unit is not in use, store it in a dry place or box. This will avoid oxidation of the mechanical parts,
such as the button or battery contacts.

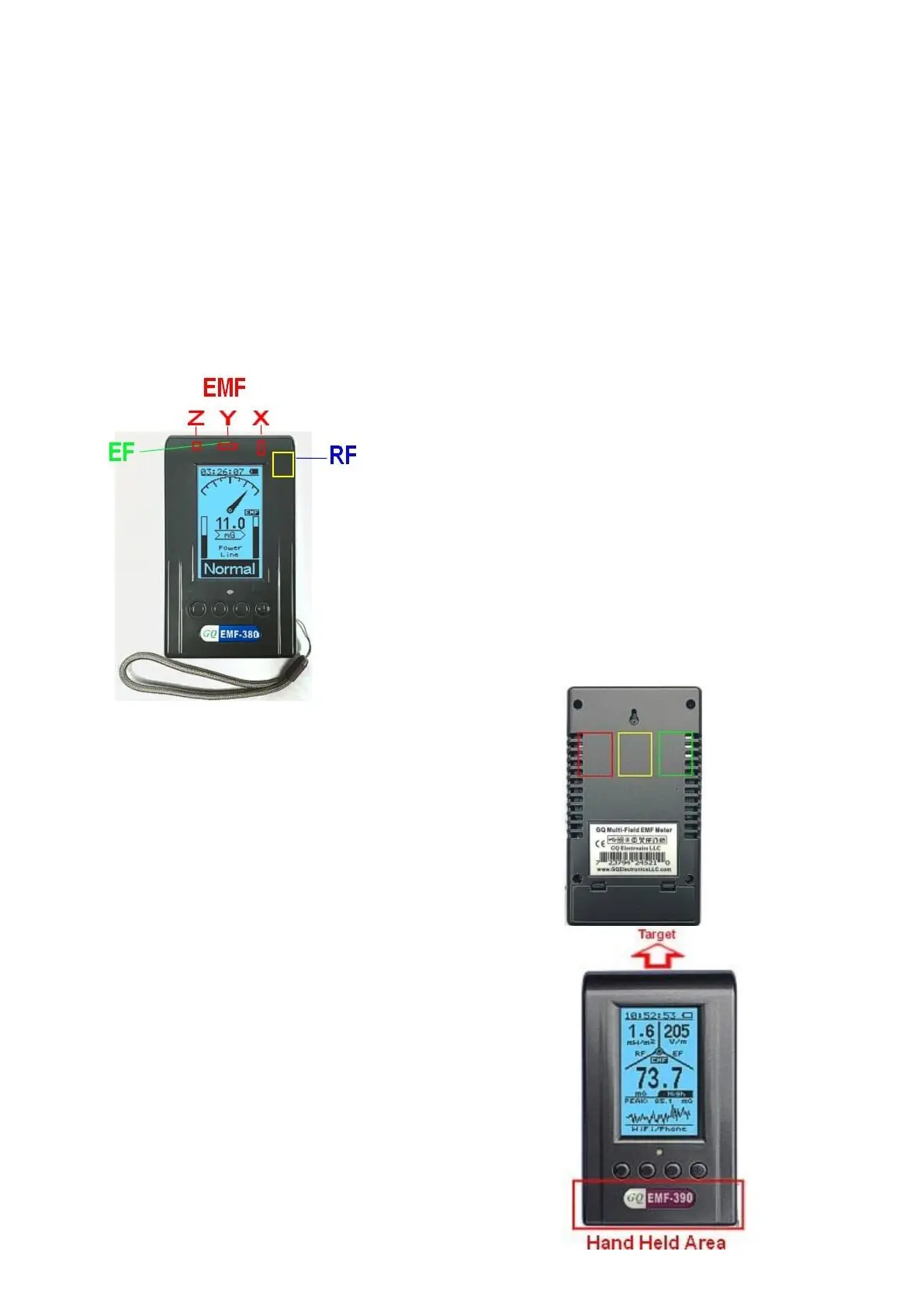

Location of the sensors
The EF should pick up with same direction as the X, Y, and Z.
However, Y direction is preferable.
RF Spectrum Analyzer sensor location
Red: 240-1040 MHz band
Yellow: 2.4-2.5GHz band
Green: 150K-125.34MHz bands
Hold and position the meter
To get as accurate reading as possible, always point the
meter front (sensors) side to the source.
