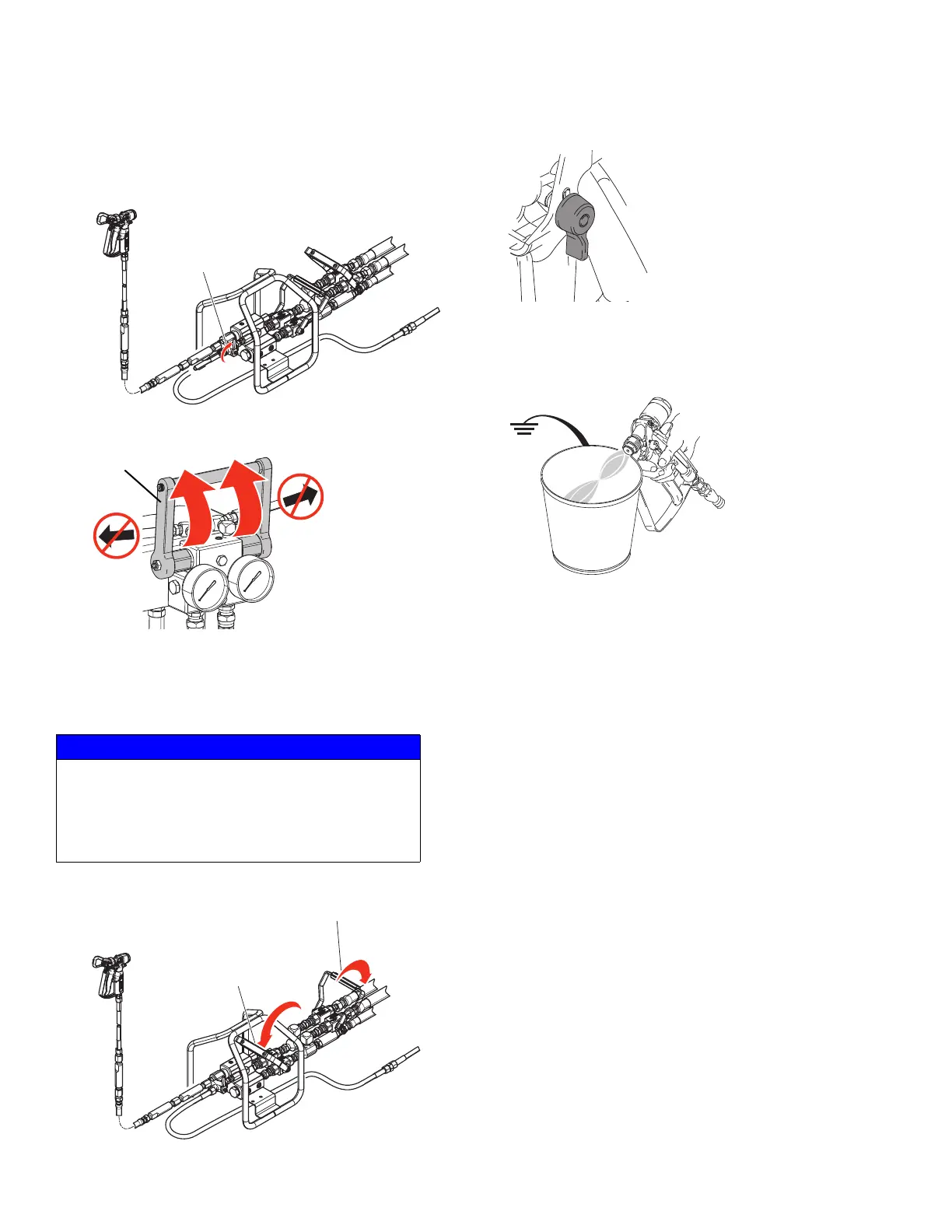

1. Close the solvent inlet valve (AG).
2. Close the recirculation handle (E).
3. Close the remote recirculation handle (CE), if
eq
uipped.
4. Open the dual shutoff handle (AE).
5. Disengage the trigger lock.
6. Hold the metal part of the gun firmly to a grounded
me
tal pail with a lid to avoid splashing. Trigger the
gun until mixed coating material is evident and
purge solvent is gone.
7. Proceed spraying.
NOTICE
To prevent damage to the valve balls and seats,
always fully open or fully close the dual shutoff
handle. Also increase the fluid pressure after
opening the ball valves to allow valves to last
longer.
