Accessories
36 3A0590R
Accessories
10,000 psi Fluid Pressure Gauge (2.5 in)
114434 - 1/4 npt(m) back mount pressure gauge can be
used in ports as gun pressure gauge.
551387 - 1/4 npt bottom mount version.
High Pressure Hoses and Accessory
Fittings
See brochure 349329 for parts and accessories.
2262478, 7250 psi Static Mixer Housing
3/8 npt(m) holds 1/2 in. 12 element plastic sticks.
511352, Mixer
Stainless 3/8 npt(m) pipe with 12 element stainless
welded stick; 7250 psi (50 MPa, 500 bar).
248927, Plastic Mix Elements
25 pack of 1/2 in. x 12 element plastic sticks.
B-side screen
40 mesh strainer for low viscosity fluids only.
15T630, Screen Installation Tool
Use to reinstall B-side screen.
24F375, Ratio Check Kit
Use to check ratio at mix manifold. See manual 3A0421
for instructions.
Accessory Ports
AP1 and AP2:
These 1/4 npt ports are located after “A” and “B” shutoff
ha
ndle.
Can be used for an inlet pressure gauge. These are
be
fore the fluid check valves and hardener restrictor.
AP3 and AP5:
Can be used for a pressure gauge to measure outlet
pr
essure or check ratio with the 24F375 kit. These ports
are downstream of the check valve.
The AP
3 port is used as the second flush inlet on the
Quickset model of the mix manifold. It flushes across the
resin check ball, but not through it.
AP4:
Can be used for a pressure gauge to measure hardener
pr
essure before the restrictor, but after the check valve.
AP1
AP3
AP4
AP5
r_258987_3a0590_9a
AP2
Ref. Part Description Qty.
17 185416 STRAINER, 40 mesh 1
18 121410 PACKING, screen retainer; PTFE 1
F

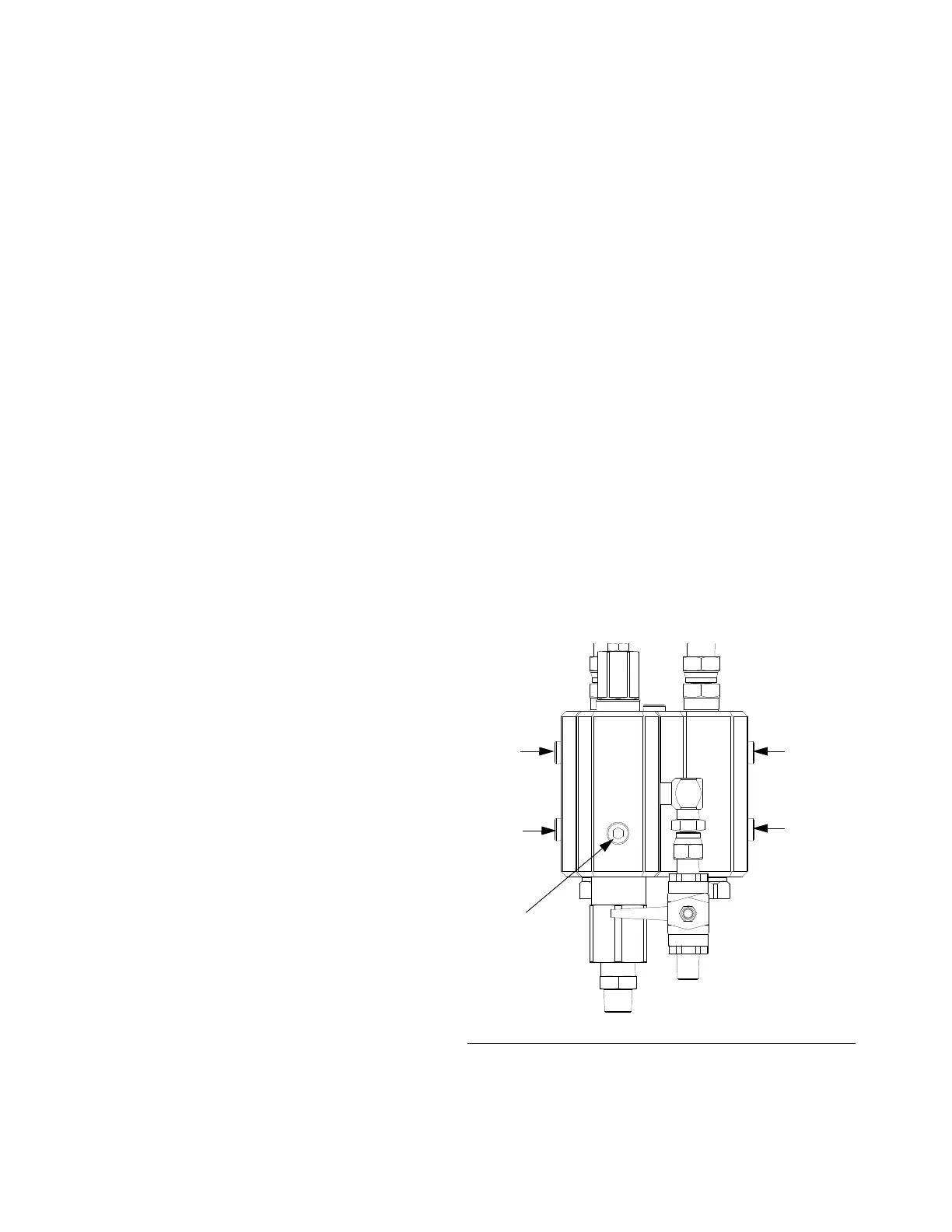

IG. 7: Accessory Ports
