Component Identification
3A0590R 9
Component Identification
Standard XP Mix Manifold 262807
Ref. Description
AA “A” Material Inlet
AB “B” Material Inlet
AC Solvent Inlet, 1/4 npt(m)
AE Dual Shutoff Handle
AF Hardener Restrictor Adjustment
AG Solvent Shutoff Handle
AH Mix Manifold Outlet, 1/2 npt(f) with 3/8 npt(m) adapter
AP Accessory Ports (see Accessory Ports, page 36)
AR Solvent Inlet Check Valve
AV Fasteners (assembled on Mix Manifold)
$&
$5
$)
$(
$%
$$
$3
$+
$9
WLD
$*

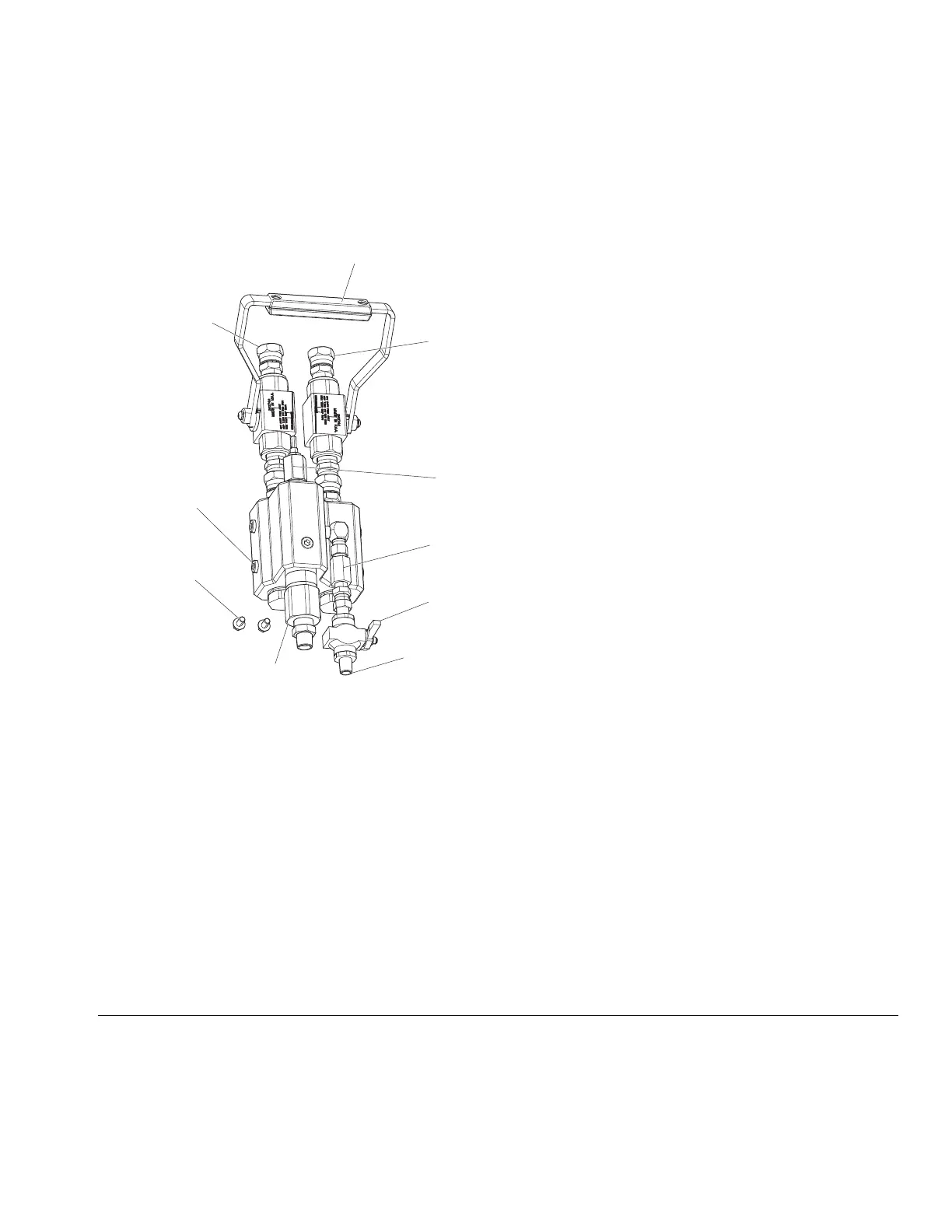

FIG. 1: Mix Manifold Component Identification
