Installation
14 313046A

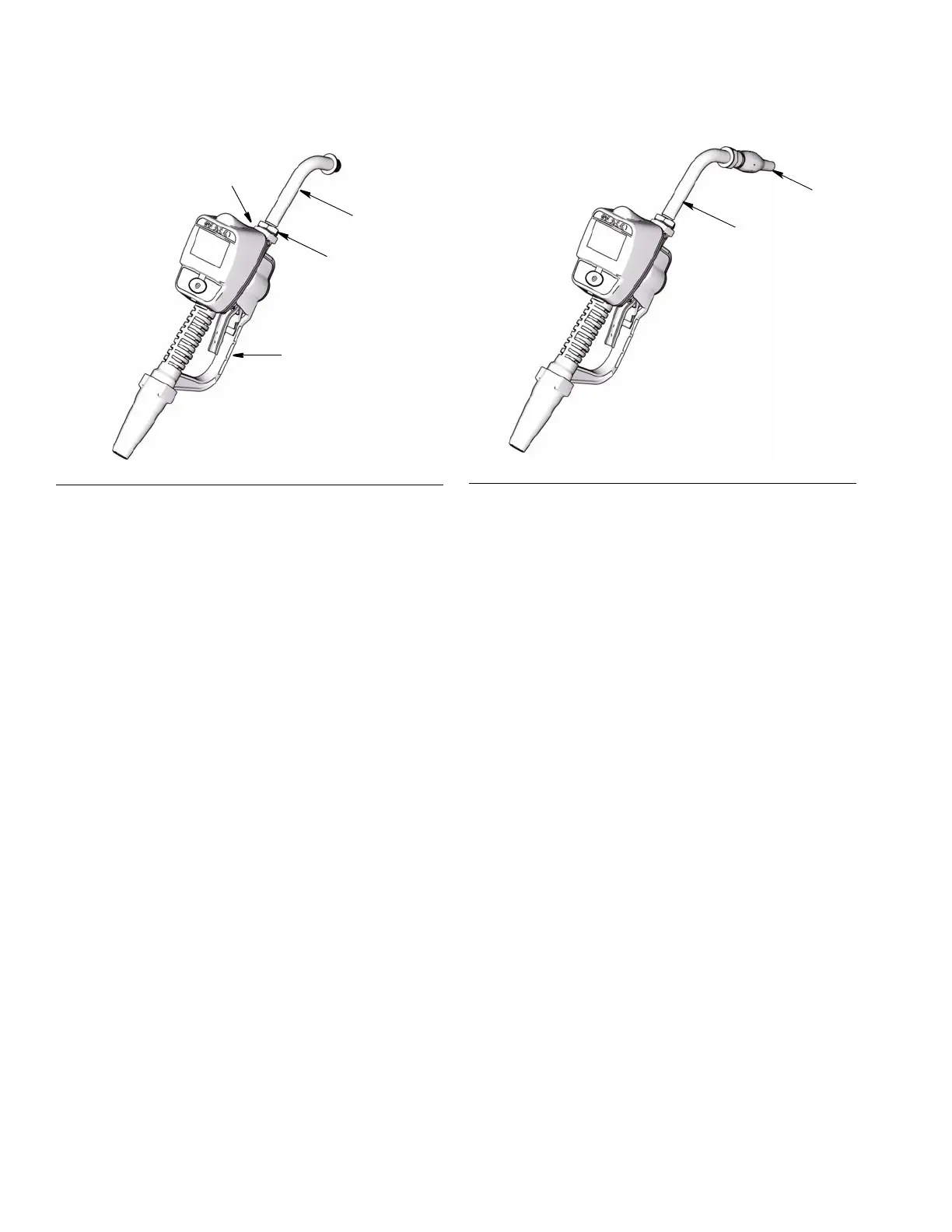

Installing Tube Extension (FIG. 18)
1.
a. Loosen nut (a).
b. Thread extension (20) into housing (b) until it
bottoms out.
c. Align extension (20) with meter housing and
handle (c).
d. Firmly tighten nut (a).
Installing Nozzle (FIG. 19)
1.
a. Thread new nozzle (33) onto extension (20).
b. With an open-end adjustable wrench on flats of
nozzle bushing, tighten firmly.
NOTE:
• Only tighten nozzle with wrench on flats of the
nozzle bushing.
• Do not disassemble the bushing from noz-
zle. Disassembly will affect performance of the
nozzle.
2. Open automatic twist lock nozzle and all fluid
shut-off valves. Start pump to pressurize system.
3. To ensure dispensing accuracy, purge all air from
the fluid lines and dispense valve before you use it.
4. Set the system flow to the desired flow rate.
F
IG. 18
20
a
c
b
ti10615A2
FIG. 19
20
33
ti10615A
