Pressure Control (On/Off Switch)
32 3A4587D Operation, Repair, Parts
Pressure Control (On/Off Switch)
Removal
1. Perform Pressure Relief Procedure, page 9.
2. Remove two screws (108) and open cover (62a).
3. Disconnect ON/OFF switch connector from PC
board.
4. Press in on two retaining tabs on each side of
ON/OFF switch (62d) and remove switch from
cover.
Installation
1. Install new ON/OFF switch (62d) so tabs of switch
snap into place on inside of cover.
2. Connect ON/OFF switch connector (B) to PC board.
3. Close cover (62a) and secure with two screws
(108).

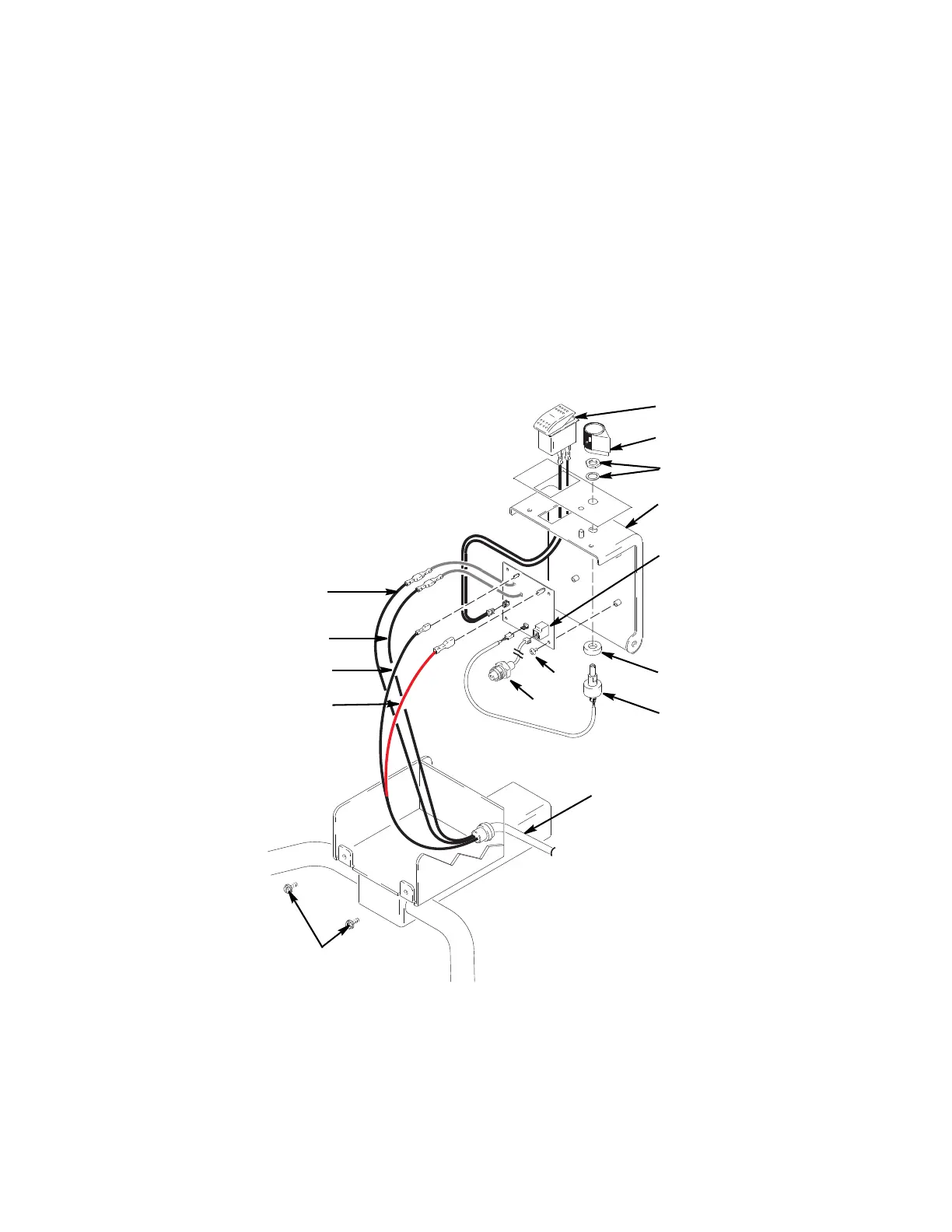

ti6389a
