Gun Placement
3A4587D Operation, Repair, Parts 15
Gun Placement

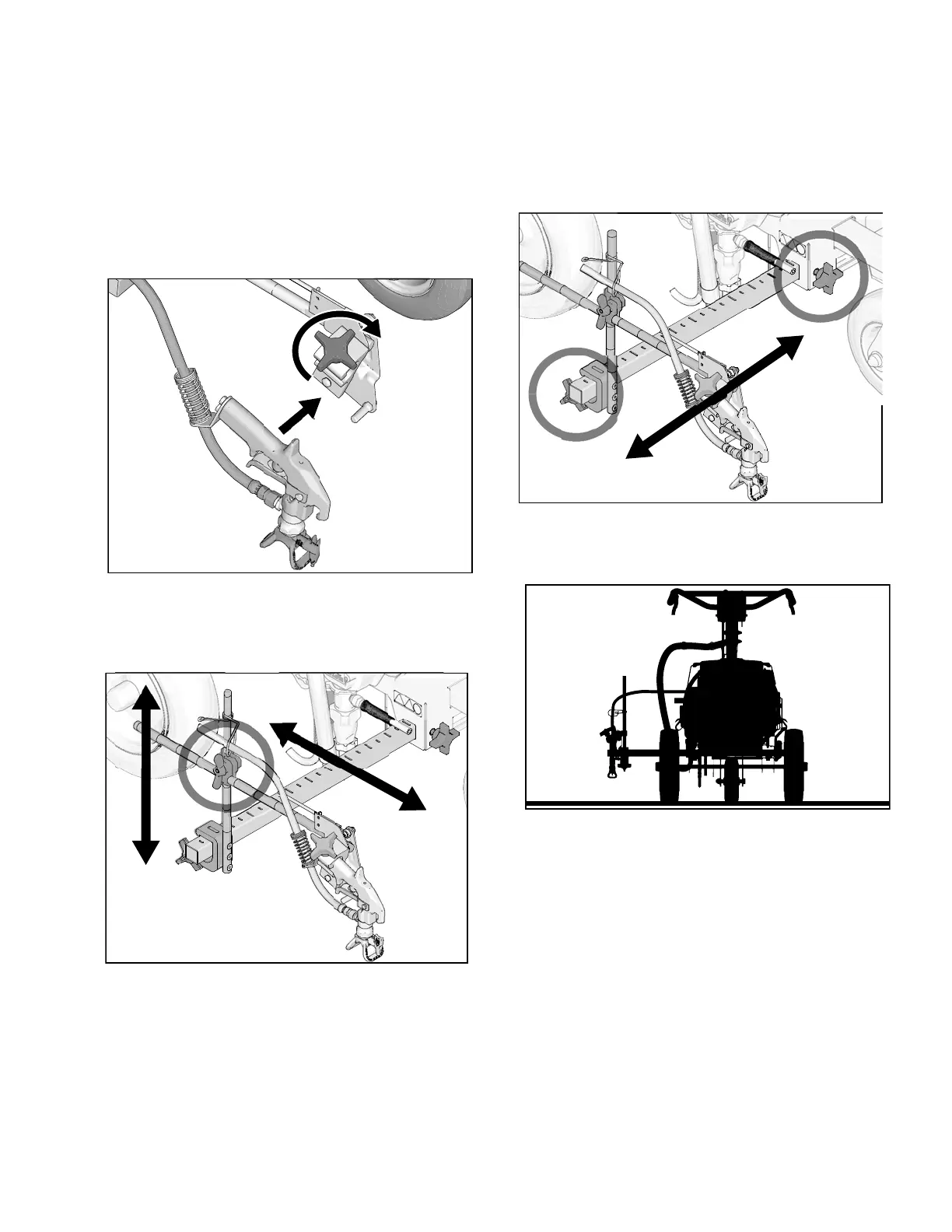

Install Gun
1. Insert gun into gun holder with hose guard pressed
against the holder assembly bracket. Tighten gun
into clamp.
Position Gun
2. Position gun up/down and forward/reverse.
3. Position gun left/right.
a. Right-side gun position: Place gun and
related hardware on right-hand side.
To Next Page
