Graco 25M224 - Gun Arm Parts

Gun Arm Parts
3A4587D Operation, Repair, Parts 39

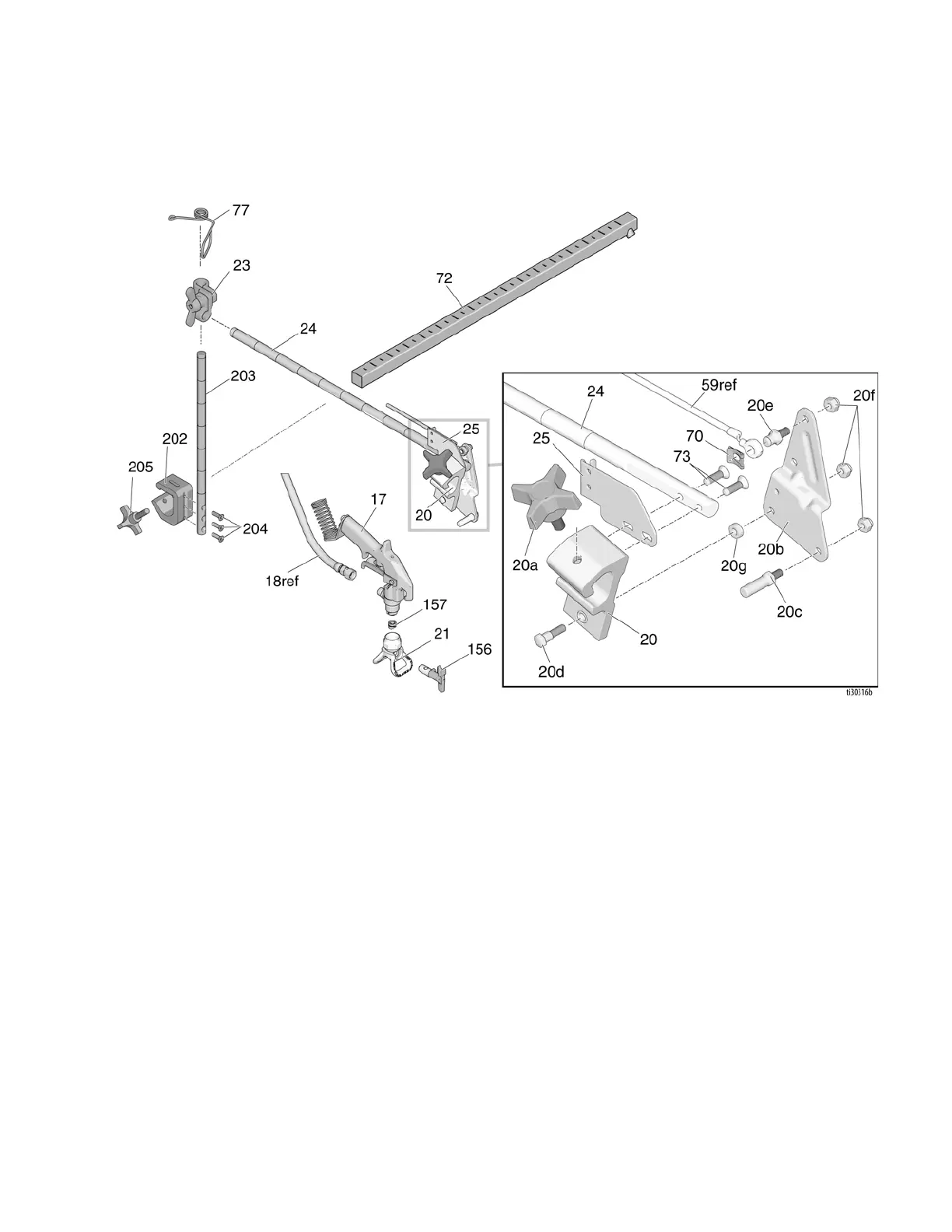

Gun Arm Parts
Ref Part Description Qty
17 248157 GUN, flex 1
20 15F216 HOLDER, gun 1
20a* 15F750 KNOB, holder, gun 1
20b* 15F214 LEVER, actuator 1
20c* 15F209 STUD, pull trigger 1
20d*† 17J575 FASTENER, special 1
20e* 17H673 STUD, cable 1
20f*† 102040 NUT, lock 3
20g*† 17J576 SPACER, special 1
21 243161 GUARD, Rac V 1
23 24Y645 KIT, clamp 1
24 17J145 ARM, holder, gun 1
25* 15F213 BRACKET, cable 1
70 *126111
RETAINER, CirClip, external, 8mm 1
72 17J407 BRACKET, support gun 1
73 119647 SCREW, cap, socket, flthd 2
77 188135 GUIDE, cable 1
156 LL5319 TIP, spray, striping, includes 157 1
*17H720 STRAP, tie, 5 in. 3
202 17J424 BAR, height, adjustment, assy,
includes 203, 204, 205
1
203 17J139 BAR, gun, holder 1
204 113428 SCREW, machine 3
205 108471 KNOB, pronged 1
* Included in Gun Holder Repair Kit 25A528
† Included in 4-finger Gun Kit 24Y991
