Graco A Series Repair Manual

Service
12 3A6584A
B) For all QuikPak Throat Repair Kits (provided
pre-soaked in oil).

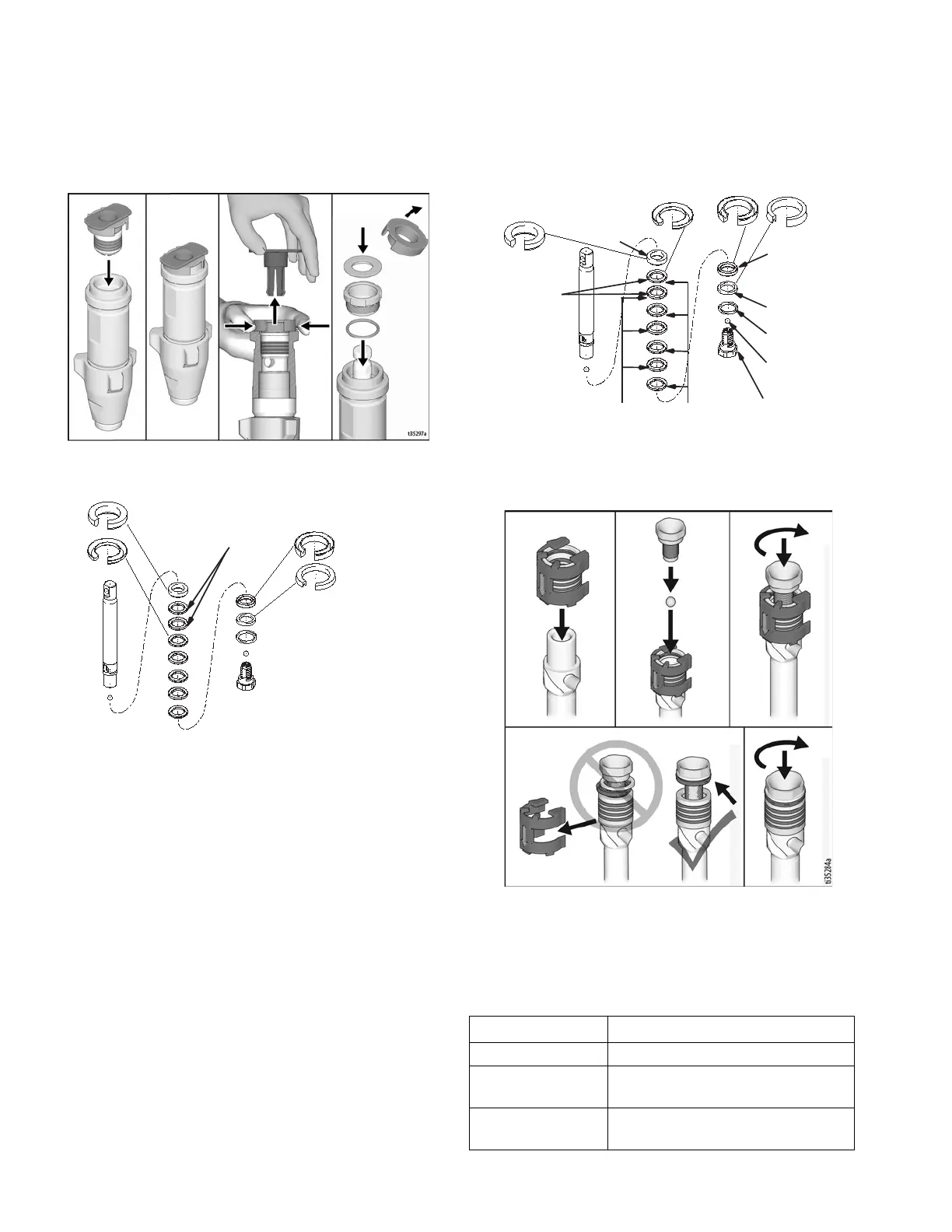

14. Remove packings and glands from piston rod.
15. A) For all non-QuikPak Repair Kits.
Soak all leather packings in SAE 30W oil for one hour
minimum prior to assembly. Stack male gland (219)
on piston rod. Alternately stack UHMWPE (208)and
leather (218) packings (note orientation) on piston
rod. Install female gland (217). Install piston wiper
(216) and backup washer (229) (note orientation) on
piston valve (210). The special sealing patch on
piston valve threads is good for four repackings. Use
thread sealant on piston valve threads after four
repackings.
B) For all QuikPak Piston Repair Kits (provided
pre-soaked in oil).
16. Install ball (206) in piston rod.
If thread sealant is applied to piston valve threads, make
sure none gets on ball. Install piston valve on piston rod.
Torque as follows:
ti3939a
Not used on
16Y598,
17H828
Models Torque
16Y598, 17H828 27 ± 3 ft-lb (36.6 ± 4.1 N•m)
16Y706, 17H830,
17H829
55 ± 3 ft-lb (74.6 ± 4.1 N•m)
16X423, 17H831,
25E689
100 ± 5 ft-lb (136 ± 7 N•m)
210
218
206
208
219
217
229
216
ti3941a
Not
used on
16Y598,
17H828
