Graco A Series Repair Manual

Parts - Pump 16Y598, 17H828
16 3A6584A

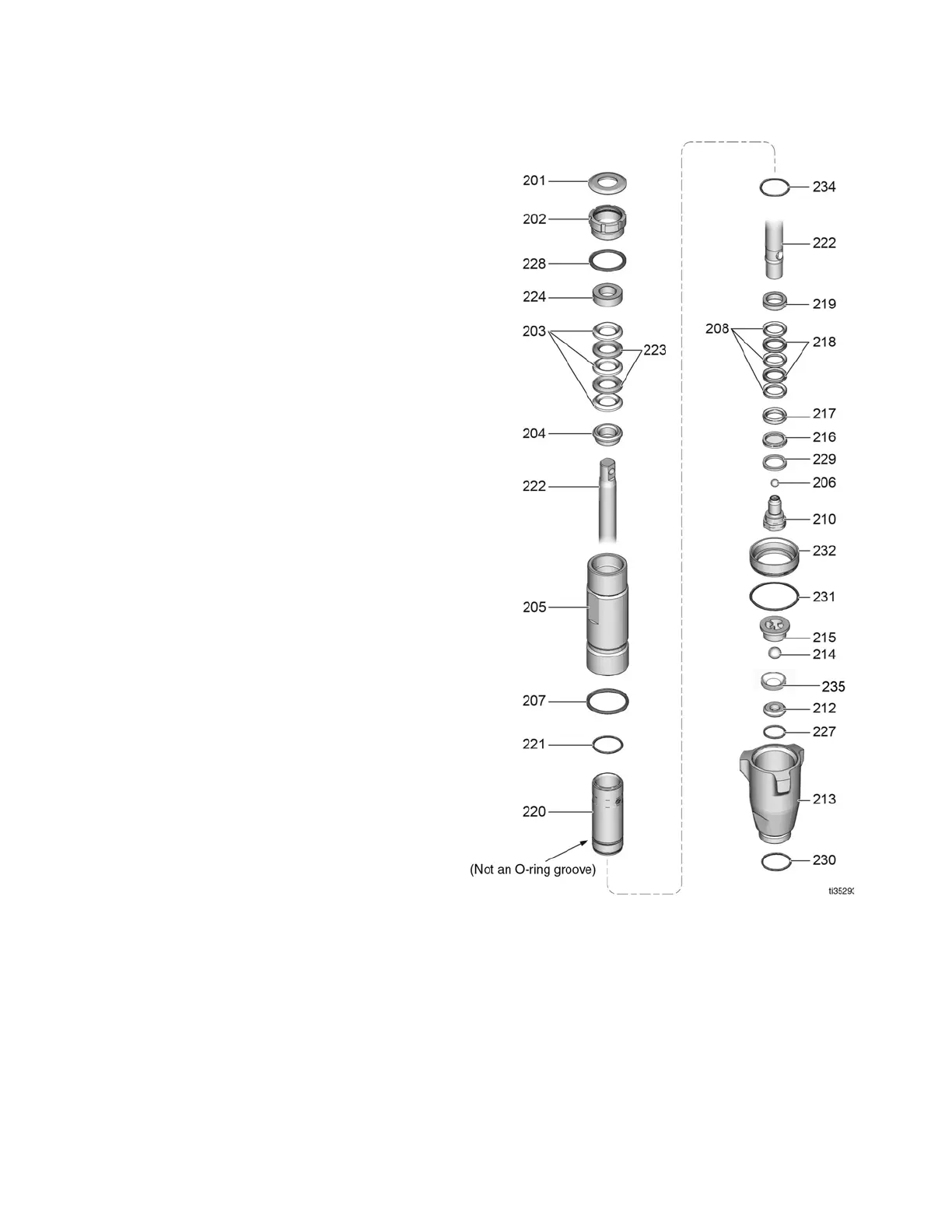

Parts - Pump 16Y598, 17H828
Ref. Part Description Qty.
201*† 179810 SEAL, throat
1
202 193046 NUT, packing
1
203*† 192692 V-PACKING, throat, V-Max,
UHMWPE, blue
3
204*† 15C987 GLAND, male, throat,
1
205 CYLINDER, pump
1
17A030 Model 16Y598
287876 Model 17H828
206 BALL check
1
105444* Model 16Y598 (Stainless steel)
17R145† Model 17H828 (Ceramic)
207*† 156593 PACKING, o-ring
1
208*† 192693 V-PACKING, piston, V-MAX,
UHMWPE, blue
3
210 287877 VALVE, piston
1
212 KIT, seat, carbide
1
239922 Model 16Y598,
(includes 214, 215, 227)
244571 Model 17H828
(includes 214, 227)
213 VALVE, intake (foot)
1
15C785 Model 16Y598
287878 Model 17H828
214 BALL, check, inlet
1
105445* Model 16Y598 (Stainless steel)
17Y533† Model 17H828 (Ceramic)
102972 Model 17H828 (Stainless steel)
215 GUIDE, ball
1
192624 Model 16Y598
17Y280 Model 17H828
216*† 118503 WIPER, piston
1
217*† 178969 GLAND, female, piston
1
218*† 178939 V-PACKING, leather, piston
2
219*† 196880 GLAND, male, piston
1
220 248209 SLEEVE, cylinder
1
221*† 108526 O-RING, ptfe
1
222 ROD, piston
1
248206 Model 16Y598
249969 Model 17H828
223*† 178940 V-PACKING, leather, throat
2
224*† 15C988 GLAND, female, throat
1
227 O-RING, ptfe
1
107079* Model 16Y598
108526† Model 17H828
228*† 158776 O-RING
1
229*
† 15C997 WASHER, backup
1
230* 118494 O-RING, fluoroelastomer
(not used on 17H828)
1
231† 17E792 O-RING, FX90 (Model 17H828 only)
1
232† 15G494 SPACER, sleeve (Model 17H828 only)
1
234*† 17V093 O-RING, FX90
1
235 17Y287 SEAL, ball guide, Mark IV and Mark V
(Model 17H828 only)
1
* These parts are also included in Repair Kit 17H838, which may be
purchased separately.
† These parts are also included in Repair Kit 17H845, which may be
purchased separately.
