Graco A Series Repair Manual

Parts - Pump 16Y706, 17H829, 17H830
3A6584A 17

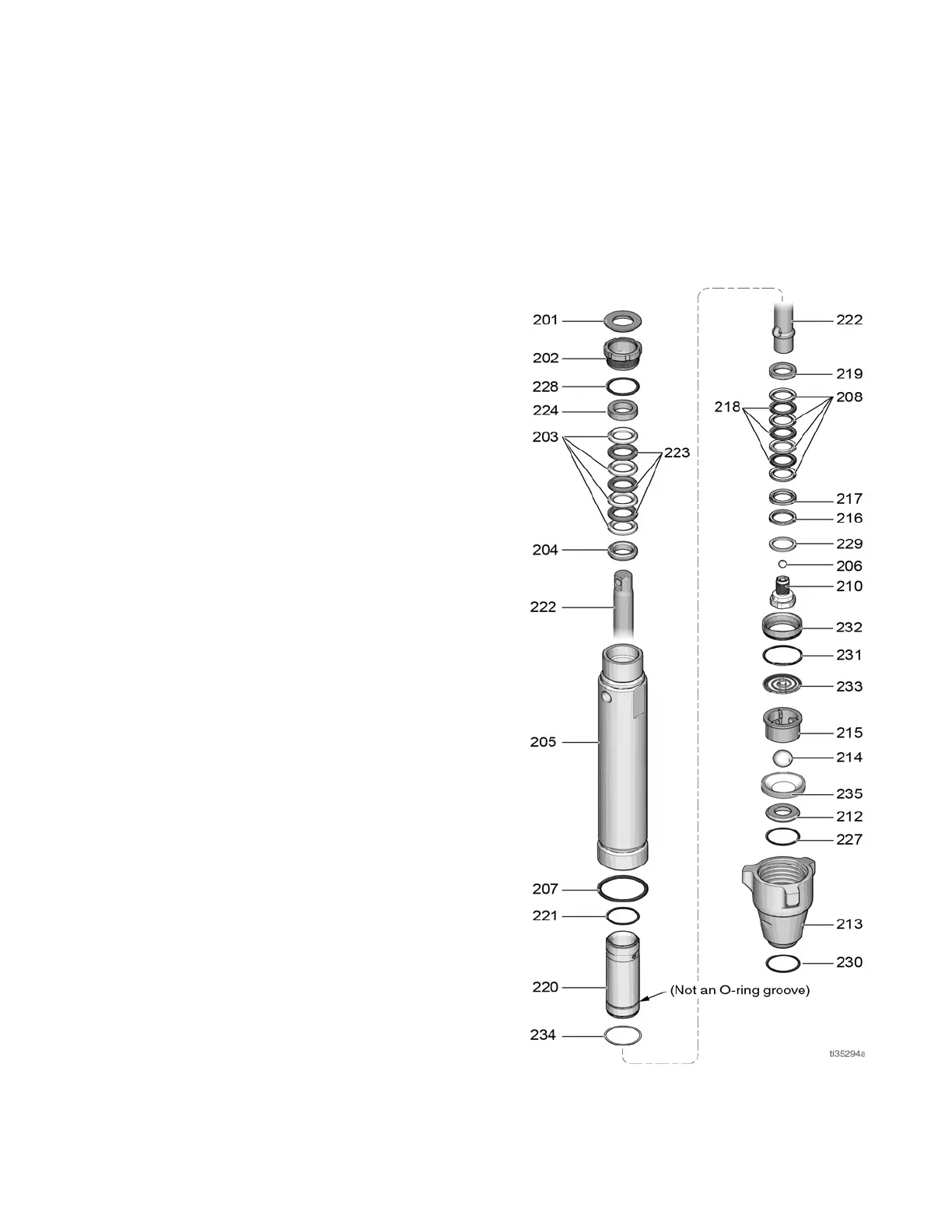

Parts - Pump 16Y706, 17H829, 17H830
Ref. Part Description Qty.
201*†
183171 SEAL, throat
1
202 193032 NUT, packing
1
203*†

193124 V-PACKING, throat, V-Max,
UHMWPE, blue
4
204*†

15C989 GLAND, male, throat
1
205 CYLINDER, pump
1
243347 Model 16Y706
196754 Model 17H829
17A032 Model 17H830
206 BALL, check
1
101947* Model 16Y706 (Stainless steel)
124249†

Model 17H829, 17H830 (Ceramic)
207 PACKING, o-ring
1
156633*† Model 16Y706, 17H829
160325

Model 17H830
208*†

193125 V-PACKING, piston, V-MAX,
UHMWPE, blue
4
210 24U993 VALVE, piston
1
212 KIT, seat, carbide
1
244199 Model 16Y706 (includes 214, 227)
244571 Model 17H829 (includes 214, 227)
24N013 Model 17H830 (includes 214, 227, 233)
213 VALVE, intake (foot)
1
15E654 Model 16Y706
196753 Model 17H829
15A303 Model 17H830
214 BALL, check, inlet
1
102972* Model 16Y706 (Stainless steel)
17Y533
†
Model 17H829 (Ceramic)
17R046

Model 17H830 (Ceramic)
215 GUIDE, ball
1
193027 Model 16Y706
17Y280 Model 17H829
17Y281 Model 17H830
216*†

118504 WIPER, piston, Model 16X429, 16Y601
1
217*†

183185 GLAND, female, piston
1
218*†

15E329 V-PACKING, leather, piston
3
219*†

183178 GLAND, male, piston
1
220 248210 SLEEVE, cylinder
1
221*†

107098 O-RING, ptfe
1
222 ROD, piston
1
248207 Model 16Y706
249028 Model 17H829
241285 Model 17H830
223*†

183175 V-PACKING, leather, throat
3
224*†

15C990 GLAND, female, throat
1
227 O-RING, ptfe
1
108526*† Model 16Y706, 17H829
107098

Model 17H830
228*†

C20987 O-RING
1
229*†

15C998 WASHER, backup
1
230* 118494 O-RING, fluoroelastomer (not used on 17H829,
17H830)
1
231

17E793 O-RING, FX90 (Model 17H830 only)
1
232 16M291 SPACER, sleeve (Model 17H830 only)
1
233 24E027 SPRING, intake, ball (Model 17H830 only)
1
234*†

17E792 O-RING, FX90
1
235 SEAL, ball guide (not used on 16Y706)
17Y287 Model 17H829
1
17Y288 Model 17H830
1
* These parts are also included in Repair Kit 17H839, which may be purchased
separately.
† These parts are also included in Repair Kit 17H846, which may be purchased
separately.
 These parts are also included in Repair Kit 17H847, which may be
purchased separately.
Ref. Part Description Qty.
