Service
14 3A6584A

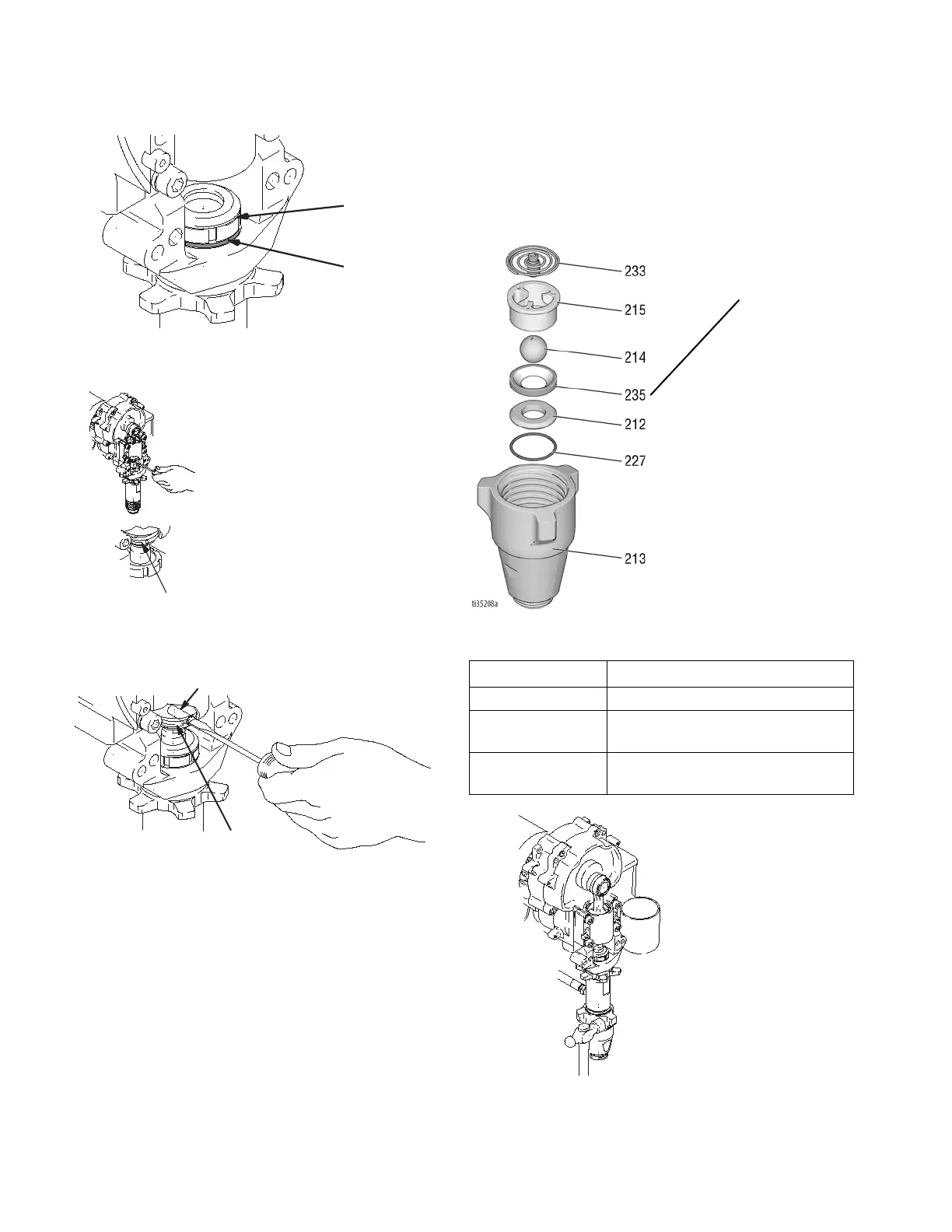

22. Push up retaining spring (26) with screwdriver.
23. Push in pin (29). Ensure spring covers pin after
assembly.
24. Reassemble intake valve with new o-rings (227),
seat (212), and ball (214). Seat may be flipped over
and used on other side. Clean seat thoroughly.
NOTE: Spring (233) only used on 17H830, 16X423, and
17H831.
25. Install intake valve on cylinder. Torque as follows:
Models Torque
16Y598, 17H828 70 ± 5 ft-lb (95 ± 7 N•m)
16Y706, 17H829,
17H830
80 ± 5 ft-lb (108.5 ± 6.8 N•m)
16X423, 17H831,
25E689
200 ± 10 ft-lb (271.2 ± 13.6 N•m)
NOTE: All Mark
and HD pumps
only
To Next Page
