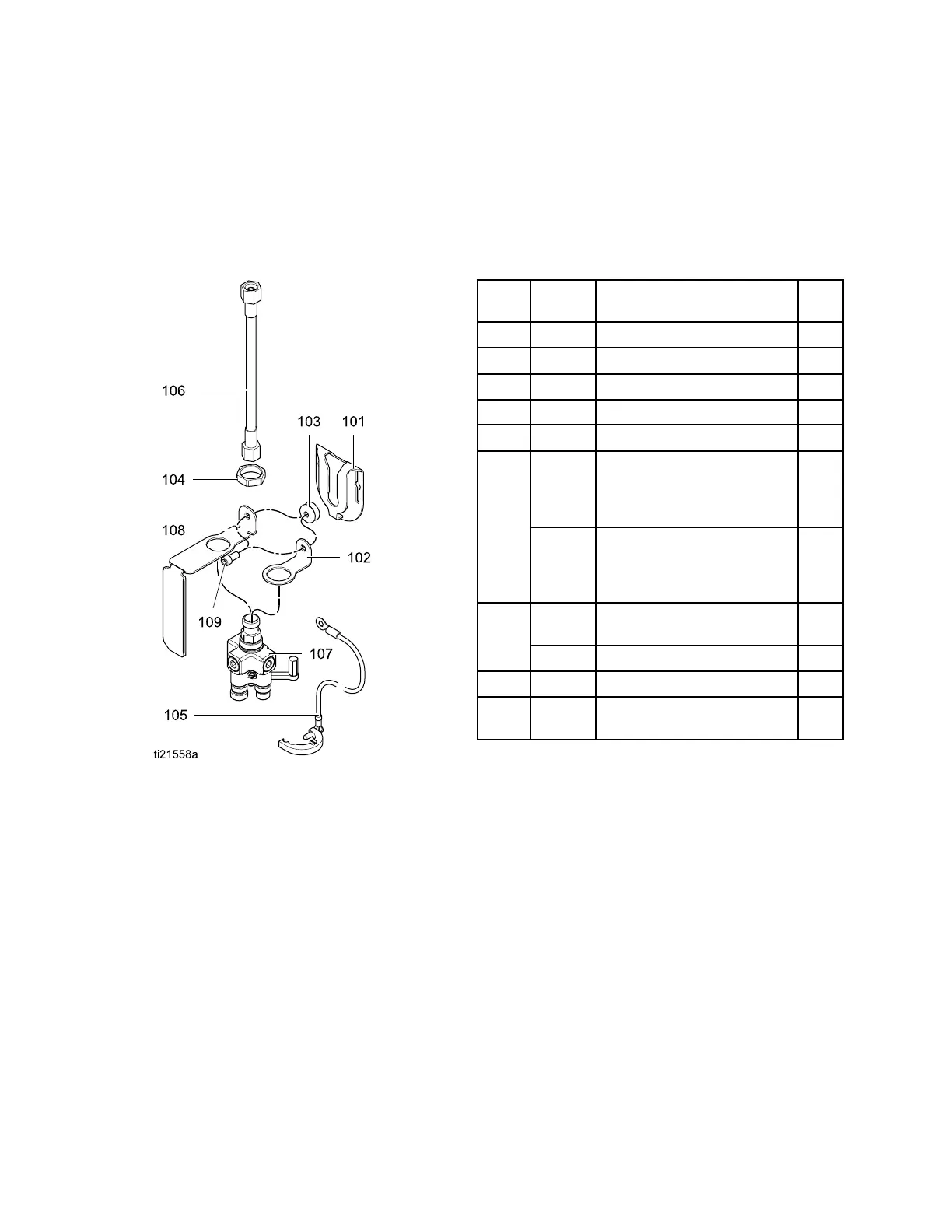

Mix Manifold Kit Parts
Part No. 24R9
91 Low Pressure Mix Manifold Kit
Part No. 24R9
92 High Pressure Mix Manifold Kit
Part No. 24T2
73 High Pressure Mix Manifold Kit, for acid catalyzed materials
Ref.
No.
Part
No.
Description
Qty
101 16W557
BRACKET, belt
1
102 16W558
BRACKET, gun/belt
1
103 16W559 RETAINER, bracket 1
104 16W560 NUT, retaining 1
105 16W562
WIRE, ground; 25 ft (7.6 m)
1
16W564
HOSE, static mixer; low
pressure; for 24R991; 3/8
npsm (fbe); 9.25 in. (235 mm)
long
1
106
16W563
HOSE, static mixer; high
pressure; for 24R992; 3/8
npsm x 1/4 npsm (fbe); 8.0 in.
(203 mm) long
1
16W556
MANIFOLD, mix; for 24R991
and 24R992
1107
16W616
MANIF
OLD, mix; for 24T273
1
108 16W561
HANDLE, mix manifold
1
109 101550
SCREW, cap, socket head;
1/4–20 x 0.5 in. (13 mm)
1
