Graco EcoQuip 2 Instruction Manual
4
of 1
of 1 rating
52 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Parts
36
3A3489T

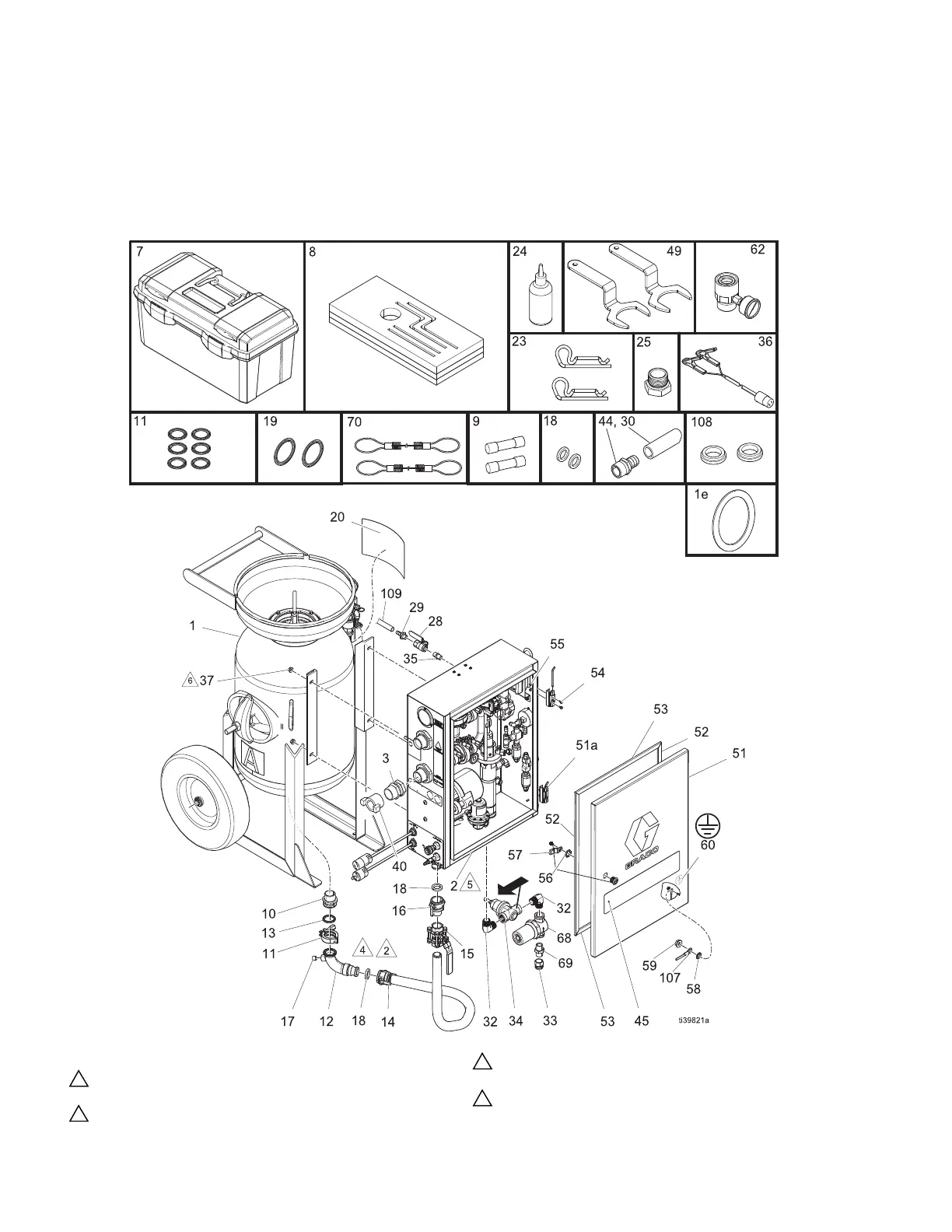

Parts
EQm Parts
1.
Apply thread sealant to all non-swivel pipe threads.
Apply anti-seize to threads.
Torque to 15 +/- 2 ft-lb (20.3 +/- 2.7 N•m)
2
4
Apply anti-seize to enclosure mounting studs.
Torque to 25-30 ft-lb (34-40.6 N•m).
5
6
35
37
Table of Contents
Default Chapter
2
Table of Contents
2
Related Manuals
3
Models
3
Packages
3
Series Change
4
System Series D (262950, 262951)
4
Warnings
5
Component Identification
8
Mediatrak Controls
9
Installation
10
Grounding (ATEX Systems Only)
10
Lifting the System
10
Blast Hose Selection
11
Blasting on Higher Surfaces
11
Pinch Hose Inspection
11
Connect the Blast Hose and Air Hose
12
Connect the Water Supply
13
Setup
14
Fill Pot with Abrasive Media
14
Pressurize the Pot
16
Operation
17
Pressure Relief Procedure
17
Adjust Blast Pressure
18
Adjust Abrasive Media
19
Refill the Pot with Media
20
Set the Abrasive Metering Value
20
Optimize the Abrasive Metering Value
20
General Application Guides
21
Nozzle Selection Guide
22
Blast Pressure Vs. Air Flow Guide
22
Use the Wash Feature
23
Standby
24
Shutdown
24
Drain the Pot
25
Winterize the Equipment
26
Use the Water Dose Meter
26
Troubleshooting
27
Repair
33
Replace the Datatrak Battery
33
Replace the Datatrak Fuse
34
Replace the Pinch Hose
35
Parts
36
Eqm Parts
36
Enclosure Box Parts
39
Enclosure Parts (Eqm Only)
43
Blast Hoses
45
Vapor Abrasive Blast Systems and Accessories
47
50 Ft (15 M) Blast Hoses with Control Hose/Cable
47
50 Ft (15 M) Blast Hoses Without Control Hose/Cable
47
Control Hoses/Cable with Blast Hose
47
Nozzles
47
Other Accessories
48
Common Spare Parts
48
Tubing Schematic
49
Dimensions
50
Eqm Models
50
Technical Specifications
51
Eqm
51
California Proposition 65
51
Graco Standard Warranty
52
