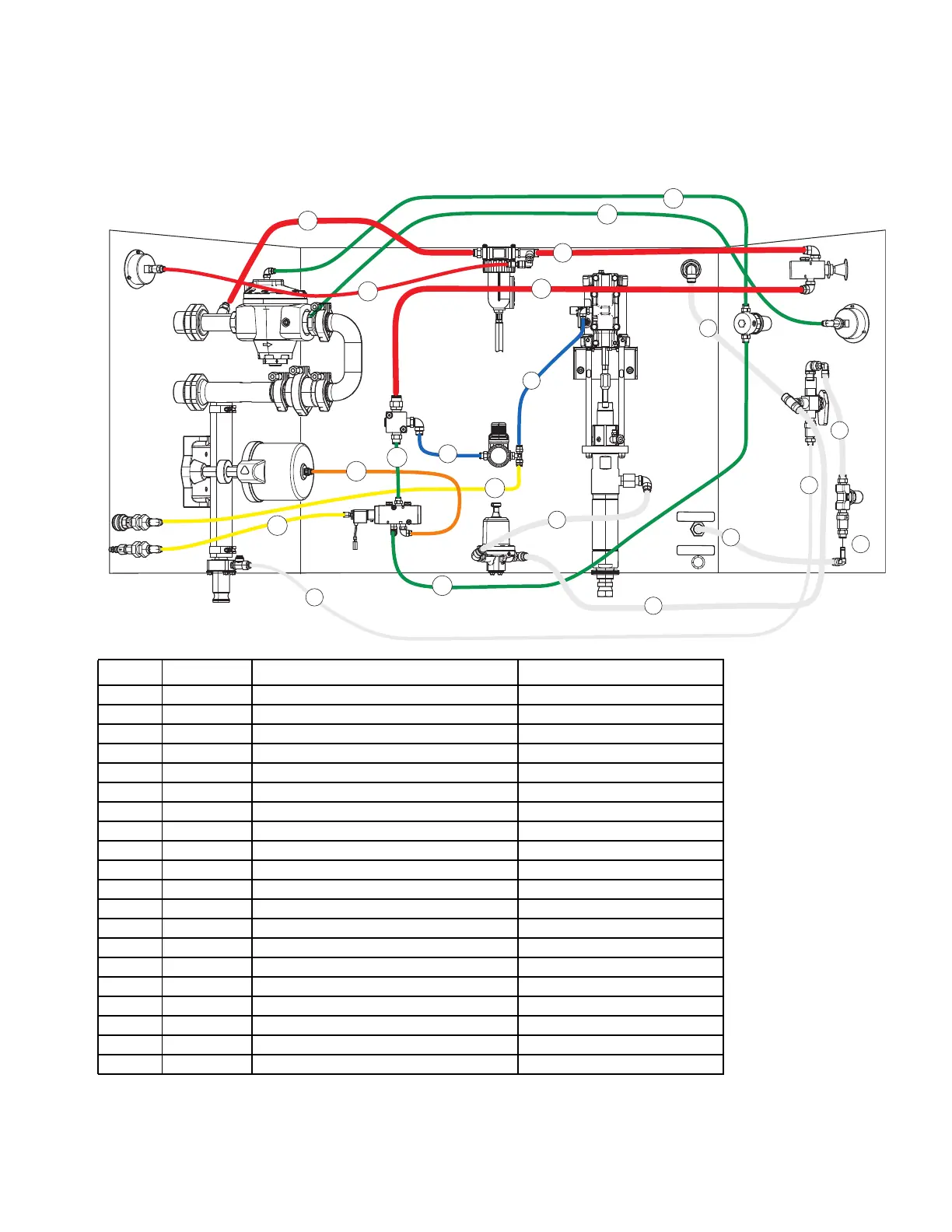

Tubing Schematic
3A3489T 49
Tubing Schematic
Ref. Part Color, Tube Size Cut Length inches (mm)
1 EQ1273 Natural, 3/8 in. OD 12.25 (311)
2 EQ1273 Natural, 3/8 in. OD 15.5 (394)
3 EQ1273 Natural, 3/8 in. OD 19 (483)
4 EQ1273 Natural, 3/8 in. OD 5.25 (133)
5 EQ1273 Natural, 3/8 in. OD 2.25 (57)
6 EQ1273 Natural, 3/8 in. OD 6 (152)
9 EQ1881 Natural, 1/4 in. OD 24 (610)
10 EQ1297 Red, 3/8 in. OD 10.5 (267)
11 EQ1297 Red, 3/8 in. OD 6.25 (159)
12 EQ1297 Red, 3/8 in. OD 18.75 (476)
13 EQ1882 Red, 1/4 in. OD 9.5 (241)
14 EQ1883 Blue, 1/4 in. OD 7.5 (191)
15 EQ1883 Blue, 1/4 in. OD 21.5 (572)
16 EQ1885 Yellow, 1/4 in. OD 22.5 (572)
17 EQ1885 Yellow, 1/4 in. OD 9.25 (235)
18 EQ1884 Green, 1/4 in. OD 12.5 (318)
19 EQ1884 Green, 1/4 in. OD 23 (584)
20 EQ1884 Green, 1/4 in. OD 23 (584)
21 EQ1884 Green, 1/4 in. OD 18 (457)
22 EQ1296 Orange, 1/4 in. OD 13 (330)
WLD
