Nozzle Selection Guide
Use the Blast Pressure vs. Air Flow Guide to determine which nozzle to use to achieve the desired blast pressure
based on compressor output.

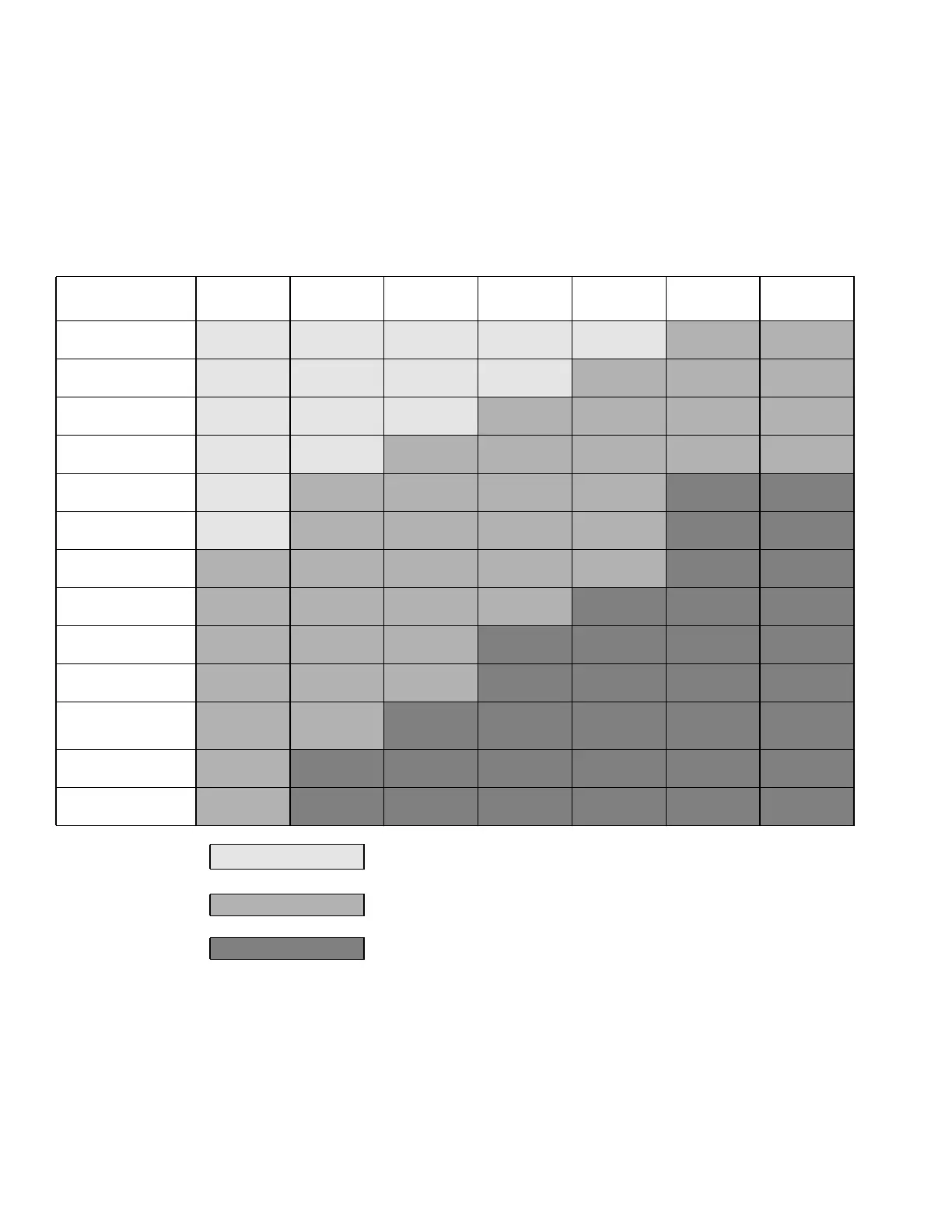

Blast Pressure vs. Air Flow Guide
Blast Pressure
#6HP CFM
(m^3/min)
#7 CFM
(m^3/min)
#7HP CFM
(m^3/min)
#8 CFM
(m^3/min)
#8HP CFM
(m^3/min)
#10 CFM
(m^3/min)
#10HP CFM
(m^3/min)
30 psi
(2.0 bar, 0.20 MPa)
78
(2.2)
117
(3.3)
137
(3.9)
151
(4.3)
161
(4.6)
229
(6.5)
224
(6.9)
40 psi
(2.8 bar, 0.28 MPa)
90
(2.5)
129
(3.7)
161
(4.6)
181
(5.1)
212
(6.0)
254
(7.2)
286
(8.1)
50 psi
(3.5 bar, 0.35 MPa)
117
(3.3)
161
(4.6)
193
(5.5)
200
(5.7)
225
(6.4)
308
(8.7)
337
(9.5)
60 psi
(4.1 bar, 0.41 MPa)
137
(3.9)
190
(5.4)
225
(6.4)
234
(6.6)
256
(7.2)
362
(10.3)
391
(11.1)
70 psi
(4.8 bar, 0.48 MPa)
166
(4.7)
225
(6.4)
251
(7.1)
269
(7.6)
293
(8.3)
422
(11.9)
447
(12.7)
80 psi
(5.5 bar, 0.55 MPa)
188
(5.3)
244
(6.9)
281
(8.0)
298
(8.3)
337
(9.5)
460
(13.0)
498
(14.1)
90 psi
(6.2 bar, 0.62 MPa)
210
(5.9)
266
(7.5)
293
(8.3)
317
(9.0)
374
(10.6)
520
(14.7)
562
(16.0)
100 psi
(6.9 bar, 0.69 MPa)
239
(6.8)
283
(8.0)
327
(9.3)
378
(10.7)
413
(11.7)
561
(15.9)
601
(17.0)
110 psi
(7.6 bar, 0.76 MPa)
256
(7.2)
325
(9.2)
347
(9.8)
420
(11.9)
457
(12.9)
634
(18.0)
664
(18.8)
120 psi
(8.3 bar, 0.83 MPa)
273
(7.7)
344
(9.7)
378
(10.7)
452
(12.8)
476
(13.5)
691
(19.6)
720
(20.4)
130 psi
(9.0 bar, 0.90 MPa)
288
(8.2)
374
(10.6)
415
(11.8)
493
(14.0)
527
(16.2)
721
(20.4)
759
(21.5)
140 psi
(9.7 bar, 0.97 MPa)
313
(8.9)
405
(11.5)
449
(12.7)
530
(15.0)
571
(16.2)
758
(21.5)
797
(22.6)
150 psi
(10.3 bar, 1.0 MPa)
331
(9.5)
430
(12.2)
476
(13.5)
558
(15.8)
601
(17.0)
796
(22.54)
853
(24.2)
Legend: < 185 CFM
185 - 375 CFM
> 375 CFM
