307-913 41
Accessories
USE ONL Y GENUINE GRACO P ARTS AND ACCESSORIES
French 185–956
Spanish 185–961
German 186–041
Greek 186–045
Korean 186–049
English 185–5953
Apply other
language here
DANGER LABELS
The English language DANGER label shown on
page
5 is also on your sprayer . If you have painters
who do not read English, order one of the following

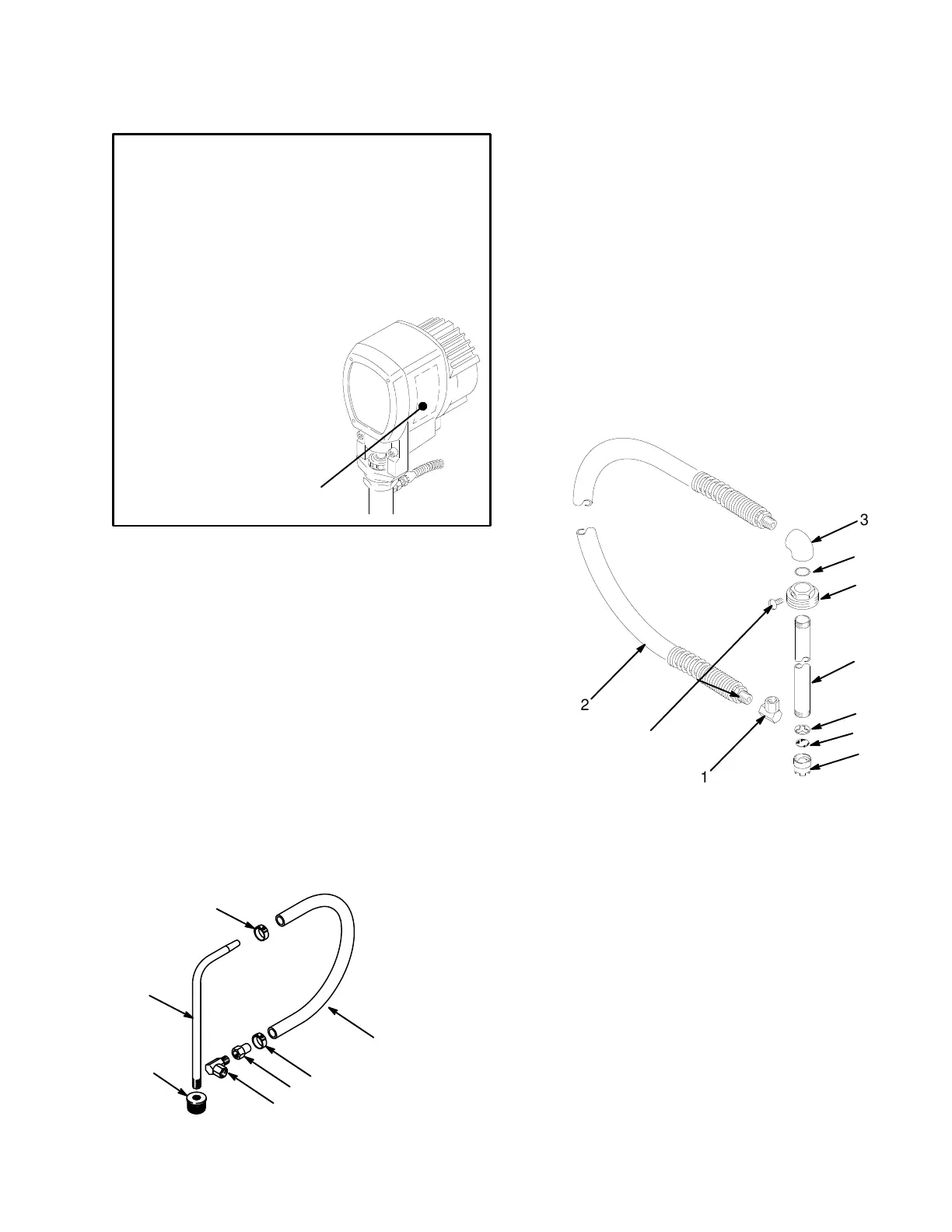

labels to apply to your sprayer. The drawing below
shows the best placement of these labels for good
visibility.
Order the labels directly from Graco, free of
charge.
Toll Free: 1–800–328–0211
0505
DISPLACEMENT PUMP REP AIR KIT 220–877
Repair instructions are included with the kit.
SLEEVE REMOV AL TOOL 220–991
Required for removing the displacement pump sleeve
during
service.
SUCTION TUBE KIT 208–920
5 gallon (19 liter) size
Includes:
REF
NO. P ART NO. DESCRIPTION QTY
1 101–818 CLAMP, hose 2
2 160–327 UNION, 90
 swivel; 3/4 npt(m x f) 1
3 170–705 ADAPTER, intake 1
4 170–706 HOSE, 1” ID x 48”; nylon 1
5 170–957 TUBE, suction 1
6 181–072 STRAINER 1
0161
1
5
6
4
1
3
2
SUCTION
TUBE KIT 208–259
55 gallon (200 liter) size
Includes:
REF
NO. P ART NO. DESCRIPTION QTY
1 156–589 UNION, 90  ADAPTER, 3/4 npt(f) x
3/4 np(f) swivel 1
2 214–961
HOSE, coupled 3/4 npt(mbe)
3/4” ID; nylon, 6 ft (1.8 m);
spring guard one end 1
3 156–591 ELBOW
, 90  ; 3/4 npt x 1–1/2 – 24 NS 1
4 156–593 P
ACKING, o–ring, nitrile rubber 1
5 100–220 THUMBSCREW
, 5/16–18 x 1” 1
6 176–684
ADAPTER, bung 1
7 156–592 TUBE, riser 1
8 159–100 RETAINER, screen 1
9 161–377 SCREEN, filter 1
10 159–101 NUT
, screen retainer 1
Ä
Ä
Ä
2
1
3
4
7
6
5
8
9
10
0162
