Field
& W
iring Harness

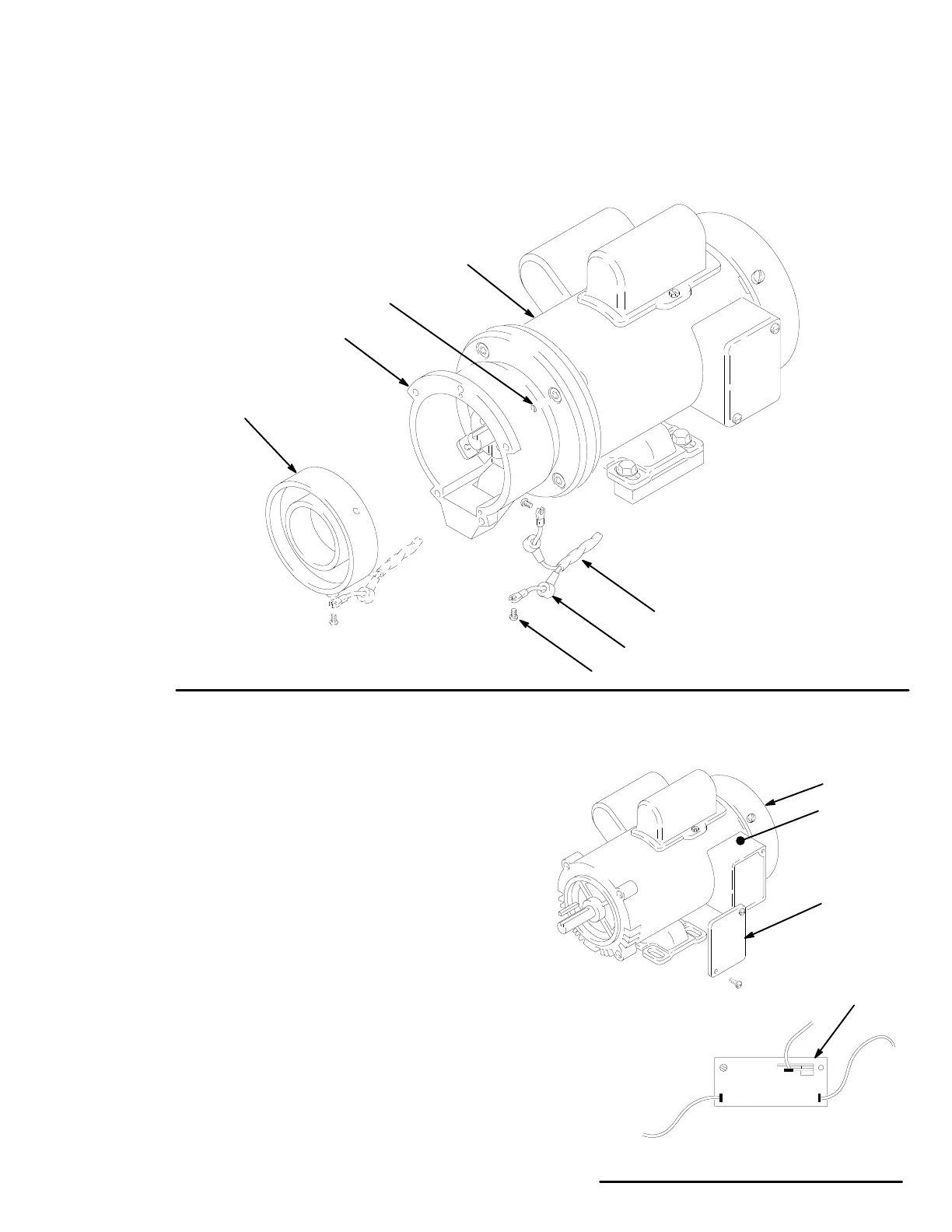

NOTE: Refer
to Fig. 28.
1.
Remove the motor from the cart. See page 26.
2. Pull the plastic caps (B) off the wire screws (34) in
both places on the field (6). Loosen the screws and
release
the wires (90).
3. Loosen the four setscrews (12) holding the field (6)
to
the clutch housing (2).
4.
Pull out the field.
5.
Skip ahead to
Reassembly
,
page 29, Step 4..
12
2
6
34
90
B
0496
1
Fig. 28
Circuit
Board
NOTE: Early series of sprayers had two circuit boards.
The other board should be removed from its
bracket
and its wires spliced as follows and then
insulated
and placed in the box.
Black to Y
ellow
Orange to nothing
1. Remove the cover (B) from the motor junction box
(A).
2. Remove the screws which secure the circuit board
mounting bracket. Remove the board (1a) and
bracket.
3. Remove
the wires from
the board, noting their origi
-
nal
locations.
4. Connect
the
wires to the new board in the same loca
-
tion as the old board. Secure the board inside the
box.
5. Replace
the box cover
.
RED
PINK
GRAY
0497
1a
1
A
B
Fig. 29
To Next Page
