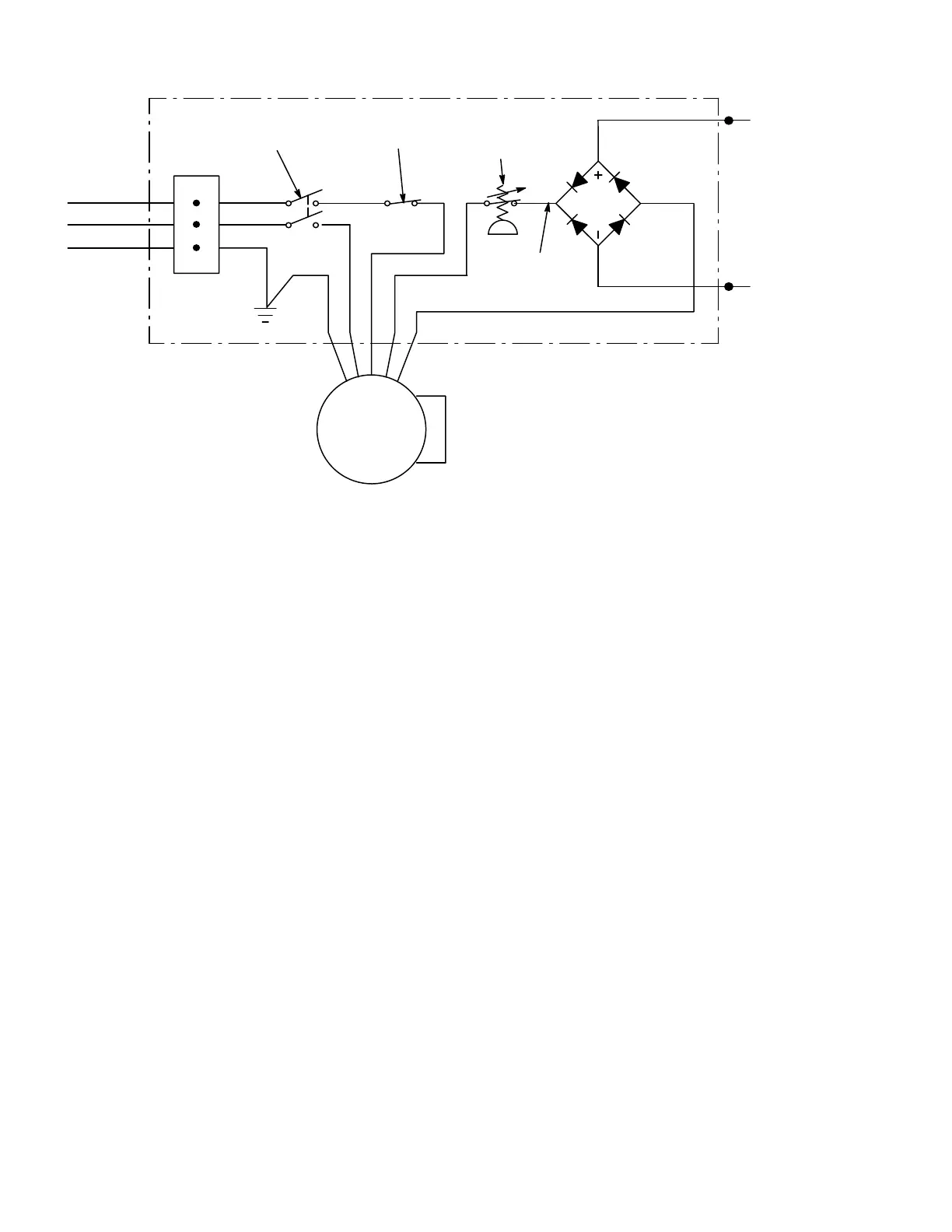

Pressure Control – W iring Schematic
WHITE
YELLOW
BLACK
BROWN
*MOTOR
BROWN
BLUE
GREEN
YELLOW
BLUE
BROWN
BROWN
CNO
MANUAL
RESET
SWITCH
DPST
ON/OFF
SWITCH
ADJ. PRSSURE SWITCH
WIRED N.O. HELD
CLOSED IN THE
UNPRESSURIZED STATE
PURPLE
YELLOW
BROWN
BLUE
GREEN/YELLOW
*
Startswitch Circuit Board
(See Page XX)
CLUTCH
FIELD
CLUTCH
FIELD

T echnical Data
Maximum W orking Pressure 21.0 MPa, 210 bar . . . . . .
Cycles/liter 53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum Delivery 4.7 liter/min . . . . . . . . . . . . . . . . . . . . .
Maximum T ip Size 1 gun with 0.031 tip . . . . . . . . . . . . . .
2 guns with 0.021 tip
Inlet Paint Strainer 190 micron . . . . . . . . . . . . . . . . . . . . . .
Stainless Steel screen, reusable
Outlet Paint Filter 250 micron . . . . . . . . . . . . . . . . . . . . . . .
Stainless Steel screen, reusable
Pump inlet Size 3/4 npt (m). . . . . . . . . . . . . . . . . . . . . . . .
Fluid Outlet Size 1/4 npsm from fluid filter . . . . . . . . . . .
Wetted Parts
Displacement Pump Carbon Steel, Polyurethane . . .
UHMW polyethylene, Delrin  , Leather
Filter Aluminum, Carbon Steel, Stainless Steel . . . . .
NOTE: For information on converting your sprayer to
one
that can safely pump fluids containing halo -
genated hydrocarbons, contact Graco Product
Service.
NOTE: Delrin
is a registered trademark of the DuPont
Company.
Dimensions
Model 222–246
without hose or gun
W
eight (dry , without packaging) 55 Kg . . . . . . . . . . . . . .
Height 803 mm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Length 775 mm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Width 572 mm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
