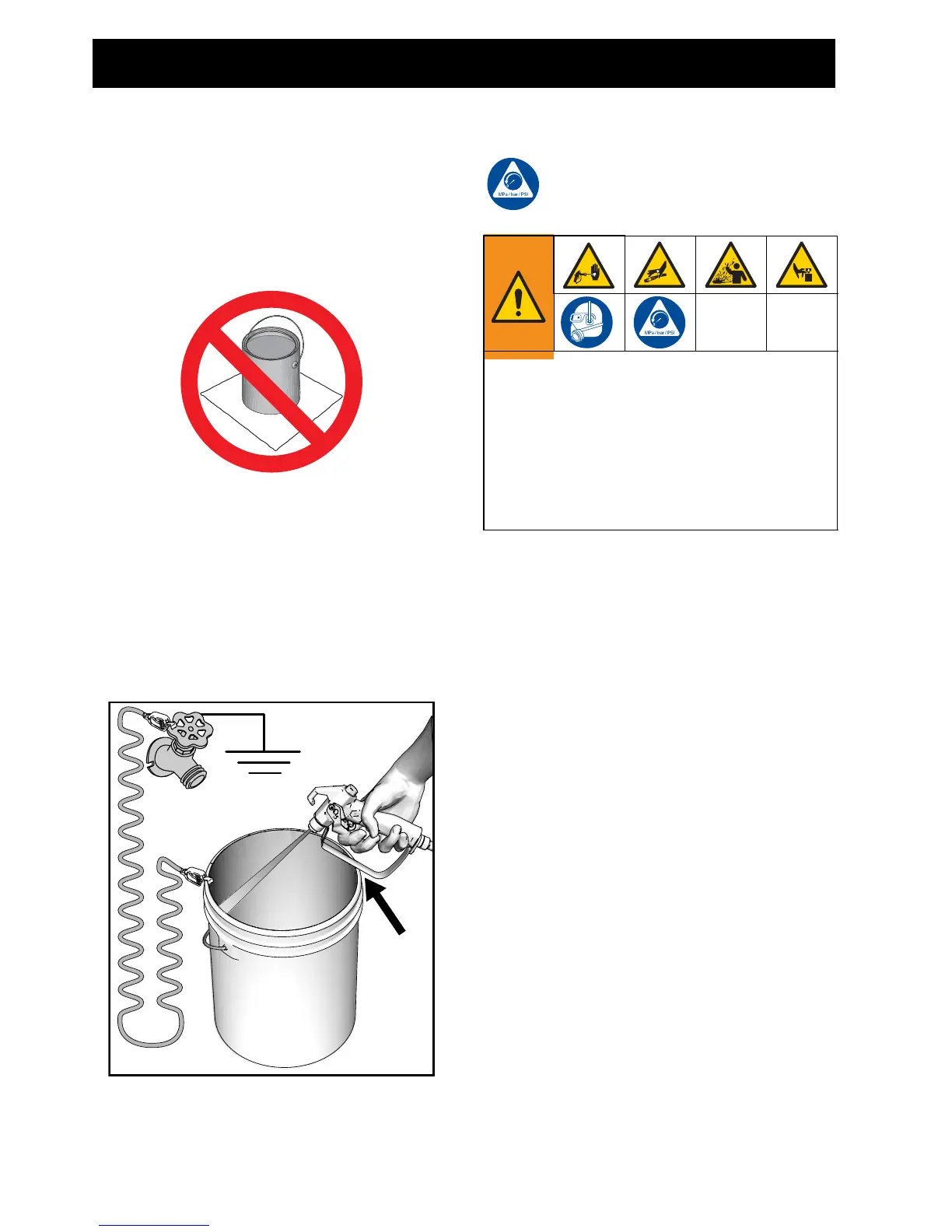

Grounding
14 334558D
Grounding of Pails
Solvent pails used when flushing: Follow
local code. Use only conductive metal pails,
placed on a grounded surface. Do not place
the pail on a non-conductive surface, such as
paper or cardboard, which interrupts
grounding continuity.
Always ground a metal pail: connect a
ground wire to the pail. Clamp one end to the
pail and the other end to a true earth ground
such as a water pipe.
To maintain ground continuity when
sprayer is flushed or pressure is relieved:
hold metal part of spray gun firmly to the side
of a grounded metal pail then trigger the gun.
Pressure Relief Procedure
Follow the Pressure Relief
Procedure whenever you see this
symbol.
1. Engage trigger lock.
2. Turn sprayer OFF:
• Turn gas engine or electric motor
ON/OFF switch to OFF.
OR
• Move Diesel throttle lever to STOP.
OR
• Unplug power cord to electric motor.
3. Move pump valve to OFF and turn
pressure control knob fully counter-
clockwise to lowest setting.
4. Disengage trigger lock. Hold metal part
of gun firmly to side of grounded metal
pail, and trigger gun to relieve pressure.
5. Engage gun trigger lock.
6. Turn prime valve down to DRAIN posi-
tion. Leave prime valve down until
ready to spray again.
7. If you suspect the spray tip or hose is
clogged or that pressure has not been
fully relieved:
a. VERY SLOWLY loosen tip guard
retaining nut or hose end coupling to
relieve pressure gradually.
b. Loosen nut or coupling completely.
c. Clear hose or tip obstruction.
ti25360a
ti24585a
This equipment stays pressurized until
pressure is manually relieved. To help
prevent serious injury from pressurized
fluid, such as skin injection, splashing fluid
and moving parts, follow the Pressure
Relief Procedure when you stop
spraying and before cleaning, checking,
or servicing the equipment.
