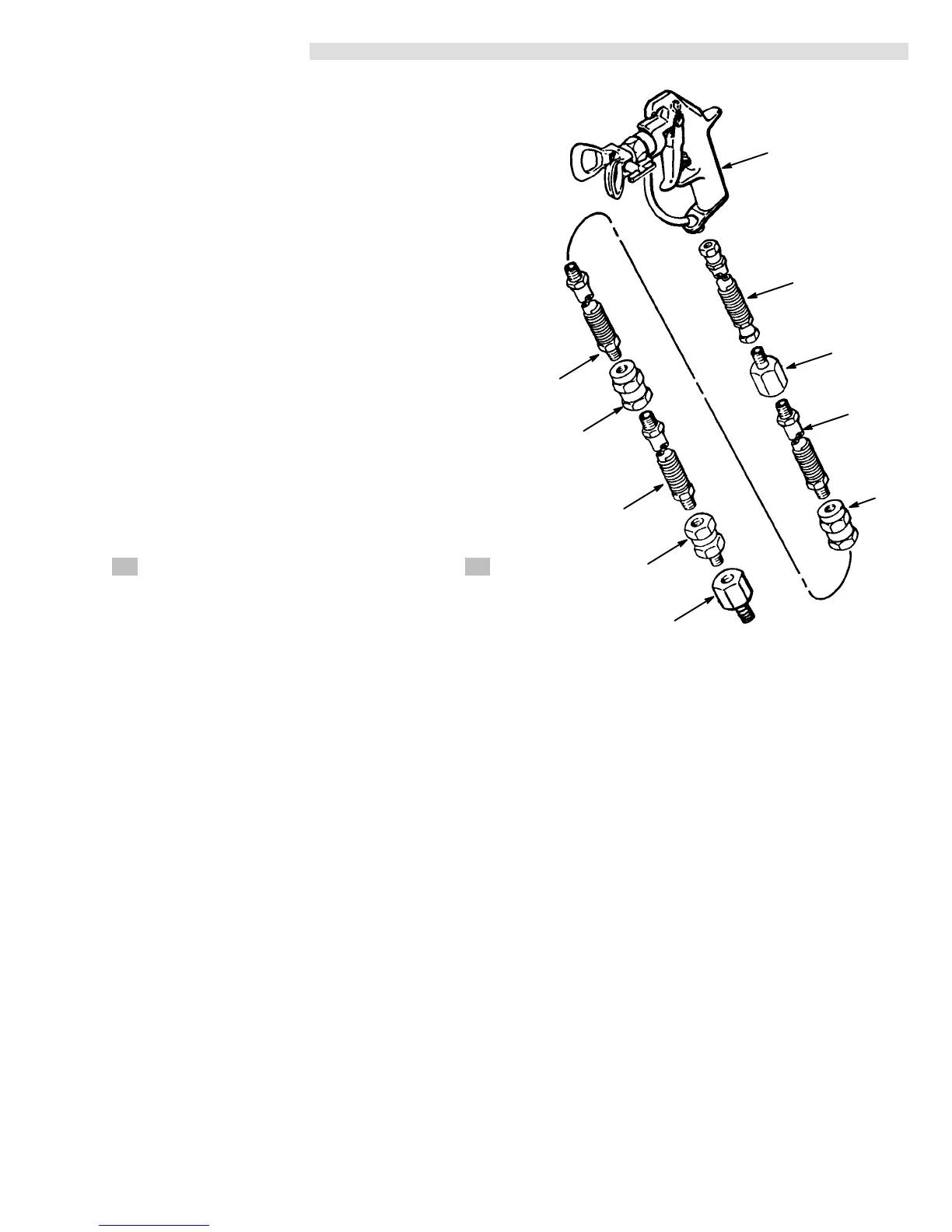

PARTS
DRA
WING
Model
230–974
, GH 533
Sprayer
Includes items 301 to 309 as listed
REF
NO. PART NO. DESCRIPTION QTY
301 231–533 GH533 SPRAYER 1
302 150–287*
ADAPTER, 1/4 npt(m) x 3/8 npt(f)
1
304 214–705
HOSE, nylon, 3/8” dia., cpld 3/8 npt(mbe)
50 ft. (15 m) long
3
305 156–173
ADAPTER, 3/8 npt(f) x 3/8 npsm
swivel 2
306 155–665
ADAPTER, 3/8 npt(m) x 3/8 npsm
swivel 1
307 150–287
ADAPTER, 1/4 npt(m) x 38 npt(f)
1
308 214–635
HOSE, nylon, 1/4” dia. cpld 1/4 npsm(fbe),
28” (0.7 m) long
1
309 235–463 SILVER PLUS SPRAY GUN
See manual 308–236 for parts
1
*Install
this adapter in place of the fluid outlet nipple in the fluid
filter.
MANUAL
CHANGE SUMMAR
Y
The
CE symbol was added to the first page and the
Tech-
nical
Data
section was updated to add the Sound Level
data. Instruction to wear ear protection was added to
EQUIPMENT
MISUSE HAZARD
of
WARNINGS.
309
308
307
304
305
304
305
304
306
302
