Graco GH 533 User Manual

307-615
4
TERMS
WARNING: Alerts user to avoid or correct conditions
that
could cause bodily injury .
CAUTION: Alerts user to avoid or correct conditions
that
could damage or destroy equipment.
NOTE: Identifies essential procedures or addition infor -
mation.
INSTALLATION

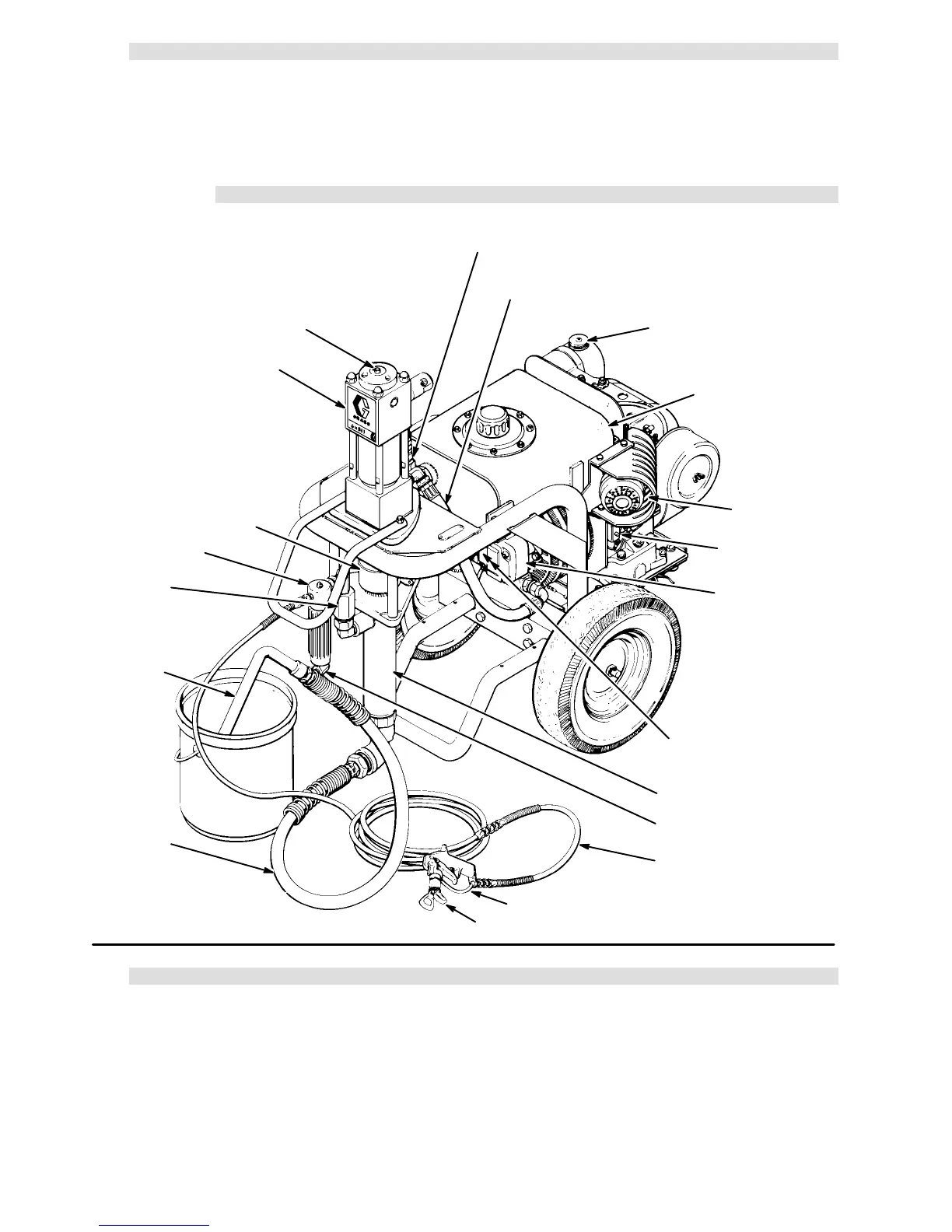

HYDRAULIC SUPPLY LINE TO MOTOR
HYDRAULIC
RESERVOIR
GASOLINE FILL CAP
MOTOR RESET BUTTON
HYDRAULIC MOTOR
HYDRAULIC
PUMP
SUCTION HOSE
SUCTION TUBE
PRESSURE
CONTROL KNOB
CHECK VALVE
PRESSURE DRAIN VALVE
PACKING NUT/WET–CUP
DISPLACEMENT PUMP
RAC IV DripLess TIP GUARD
HYDRAULIC RETURN LINE TO MOTOR
Fig 2
FILTER
SILVER GUN
SPRAY HOSE
MUFFLER
STOP BUTTON
SETUP
1. Connect the Hose and Gun
a. Remove the plastic cap plug from the outlet tee
and screw an accessory, conductive or
grounded
spray hose onto the 1/4 npsm(f) outlet
nipple. See Fig 2.
b. Connect a small diameter , 3 ft (0.9 m) whip hose
between the main hose and a spray gun, if de-
sired, for more flexible gun movement. See Fig
2.
c. Don’t
use thread sealant on the swiveling nut of
the hose couplings, and don’ t install the spray
tip yet.
NOTE: Use thread sealant on all male threads except at
swivel unions. Swivel unions are made to self–
seal, and using thread sealant prevents the
swivel
from turning freely .
2. Fill the Packing Nut/W et Cup 1/3 full with Graco
Throat
Seal Liquid (TSL), supplied. See 2 .
