TECHNICAL
DA
TA
Engine KOHLER
Model K241–T
, 4 cycle.
. . . . . . . . . . . . . . . . .
single cylinder
, air cooled, 10
HP
, (7.5
Kw)
Gasoline
1.5 gallon (5.7 liter capacity)
.
. . . . . . . . . . . . . . . . . . .
consumes
1.3 gal/hr (4.9 liter/hr)
Hydraulic Fluid Sump
5 gallon (19 liters)
.
. . . . . . . . . . . . . . . . .
Hydraulic Pressure
900 psi (62 bar)
.
. . . . . . . . . . . . . . . . . . . . .
10.2
gpm (39 l/min)
Displacement Pump
3000
psi (210
bar)
.
. . . . . . . . . . . . . . . . .
Maximum Working Pressure
2
GPM (7.5
liter/min) output,
20 cycles/gallon
Pump Fluid Outlet Size
3/4 npsm(m)
.
. . . . . . . . . . . . . . . . . . . .
Fluid
Filter Outlet Size
1/4 npt(f)
.
. . . . . . . . . . . . . . . . . . . . . . . .
Wetted Parts:
Displacement Pump
Steel, Nitralloy
,.
. . . . . . . . . . . . . . . . . .
Tungsten
Carbide,PTFE, Leather
Filter
Aluminum, Carbon steel, Stainless Steel,
.
. . . . . . . . .
Weight
(dry w/o packaging)
500 lb (225 Kg)
.
. . . . . . . . . . . . . .
Height 48
in. (1.2 m)
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Length 48
in. (1.2 m)
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Width 29
in. (736 mm)
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound Levels*:
Sound Pressure
100 dB(A)
.
. . . . . . . . . . . . . . . . . . . . . . . . . .
Sound
Power
109 dB(A)
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
*
Measured at maximum normal load conditions.
NOTE:
GRACO PHONE NUMBERS
TO
PLACE AN ORDER
, contact your Graco distributor
, or call
this number to identify the distributor closest to you:
1–800–328–0211
T
oll Free.
FOR
TECHNICAL
ASSIST
ANCE,
service repair information or
assistance regarding the application of Graco equipment:
1–800–543–0339
T
oll Free
ACCESSORIES
Must
be purchased separately
.
GRACO–APPROVED HYDRAULIC OIL
169–236
5 Gallons (20 liters)
207–428
1 Gallon (3.8 liters)
DANGER LABELS
The English language DANGER label shown on
page
1 is also on your
sprayer
. If you have painters
who
do not read English, order one of the following
labels to apply to your sprayer.

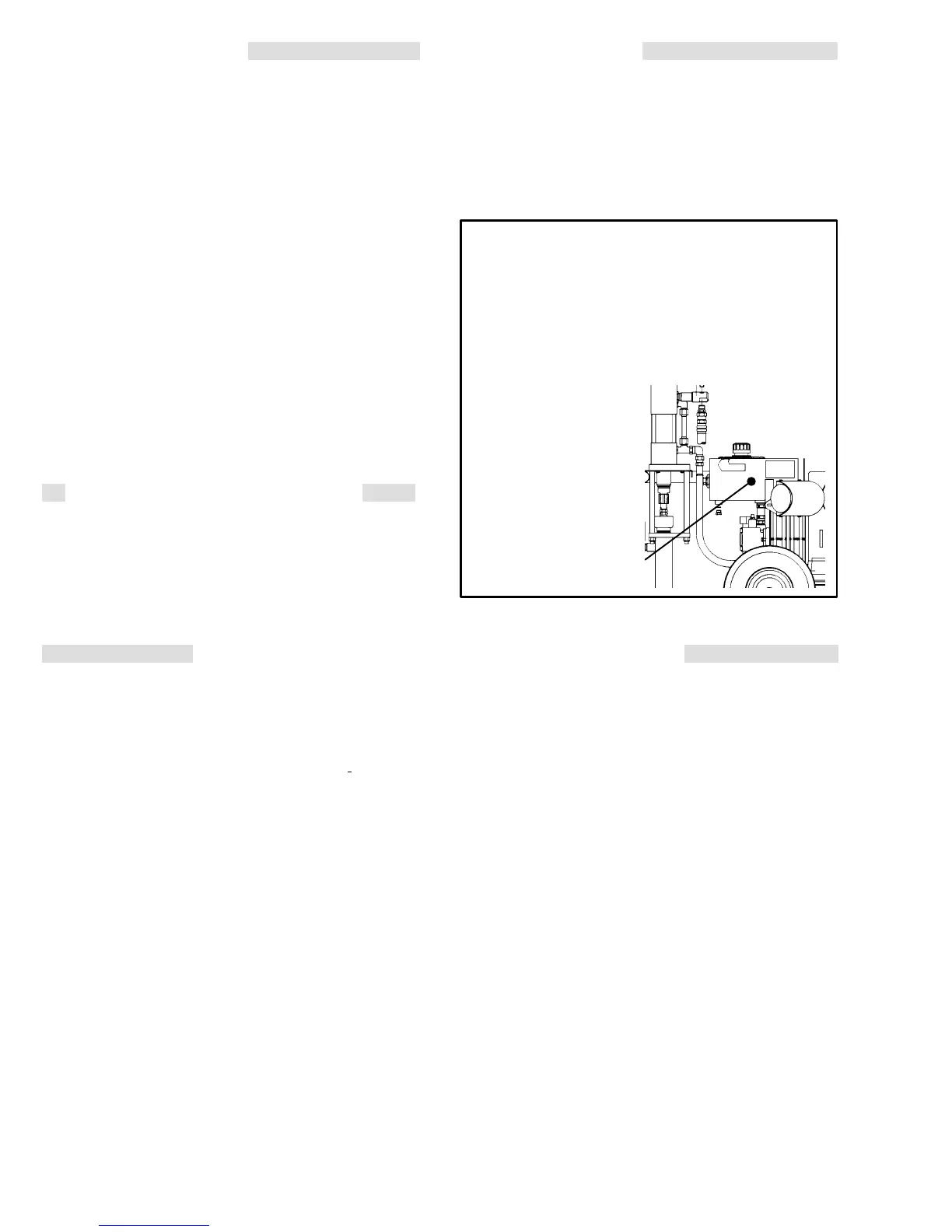

The drawing below
shows the best placement of these labels for good
visibility.
Order the labels directly from Graco, free of
charge. Toll
Free: 1–800–328–021
1
French 186–956
Spanish 185–961
German 186–041
Greek 186–045
Korean 186–049
English 185–593
Apply
other
language here
THE
GRACO W
ARRANTY AND DISCLAIMERS
WARRANTY
Graco
warrants all equipment manufactured by it and bearing its name to be free from defects in material and workmanship on the date of sale by
an authorized Graco distributor to the original purchaser for use. As purchaser
’
s sole remedy for breach of this
warranty
, Graco will, for a period of
twelve
months from the date of sale, repair or replace any part of the equipment proven defective, with the exception of defects in parts on the drive
train/gear
box on EM and GM sprayers or power train on EH and GH sprayers, which will be repaired or replaced for twenty-four months from the
date of sale for Gas–Hydraulic (GH) and Gas-Mechanical (GM) sprayers and for thirty-six months from the date of sale for Electric-Mechanical
(EM), Electric-Hydraulic (EH), 390st and 490st sprayers
.
This warranty applies only when the equipment is installed, operated and maintained in
accordance with Graco’
s written recommendations.
This
warranty does not cover
, and Graco shall not be liable for
, any malfunction, damage or wear caused by faulty installation, misapplication, abra
-
sion,
corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco component parts. Nor shall
Graco
be liable for malfunction, damage or wear caused by the incompatibility with Graco equipment of structures, accessories, equipment or mate
-
rials
not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or
materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the
claim. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will
be returned to the origi
-
nal
purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at
a
reasonable charge, which charges may include the costs of parts, labor and transportation.
DISCLAIMERS AND LIMIT
ATIONS
The
terms of this warranty constitute purchaser
’
s sole and exclusive remedy and are in lieu of any other warranties (express
or implied),
including
warranty
of merchantability or warranty of fitness for a particular purpose,
and of any non–contractual liabilities, including product liabilities,
based
on negligence or strict liability
. Every form of liability for direct, special or consequential damages or loss is
expressly excluded and denied. In
no
case shall Graco’
s liability exceed the amount of the purchase price. Any action for breach of warranty must be brought within two (2) years of
the date of sale.
EQUIPMENT NOT COVERED BY GRACO W
ARRANTY
Graco
makes no warranty
, and disclaims all implied
warranties of merchantability and fitness for a particular purpose
, with
respect to accesso
-
ries,
equipment, materials, or components
sold but not manufactured by Graco. These items sold, but not manufactured by Graco (such as electric
motor,
switches, hose, etc.) are subject to the warranty
, if any
, of their manufacturer
. Graco will provide purchaser with reasonable assistance in
making any claim for breach of these warranties.
Sales
Offices:
Atlanta, Chicago, Detroit, Los Angeles
Foreign Offices:
Belgium; Canada; England; Korea; Switzerland; France; Germany; Hong Kong; Japan
GRACO INC. P.O. BOX 1441
MINNEAPOLIS, MN
55440–1441
PRINTED
IN U.S.A. 307–615
6–83
Revised August 1995
