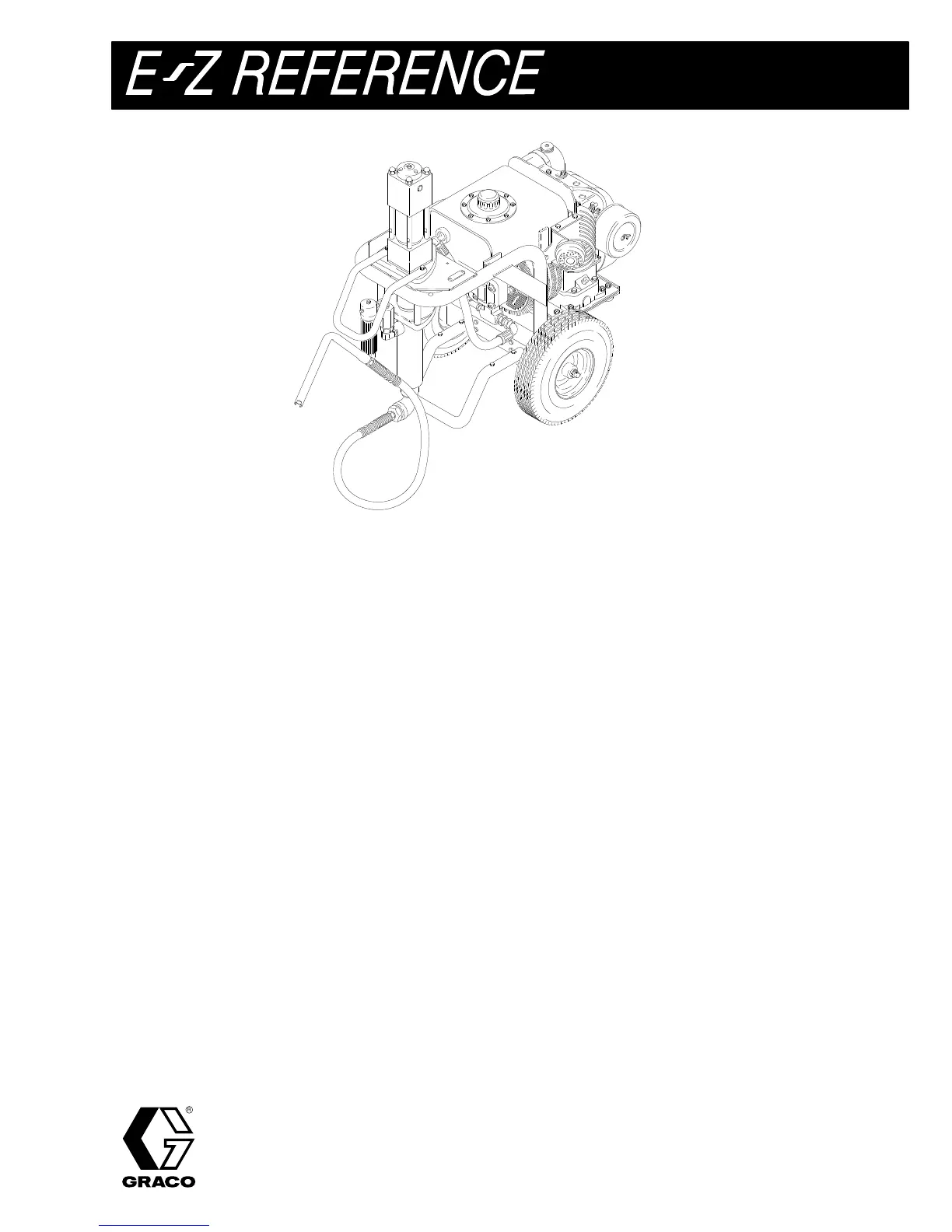

GH 533
Model 231–533, Basic Sprayer
Model 230–974, Complete Sprayer
With 50 ft (15.2 m), 3/8 in. I.D. hose or 100 ft (30.5 m) hose, 3 ft (0.9 m) 3/16 in. I.D.
whip hose, and Silver gun with RAC IV DripLess  T ip Guard and 517 SwitchT ip 

Technical Data
Maximum W orking Pressure 3000 psi (210 bar) . . . . . .
Gasoline Engine Kohler , 10 HP , fan cooled . . . . . . . . . .
4-stroke, single cylinder
Fuel T ank Capacity 1.5 gal (5.7 liter) . . . . . . . . . . . . . . . .
Delivery 2.0 gpm (7.6 lpm). . . . . . . . . . . . . . . . . . . . . . . . .
Cycles Per Gallon (liter) 20 (5.3). . . . . . . . . . . . . . . . . . . .
Tip Size one gun with 0.043 in. tip . . . . . . . . . . . . . . . . . .
two guns with 0.031 in. tip
with latex at 2000 psi (138 bar)
Pump Fluid Outlet Size 3/4 npsm (m). . . . . . . . . . . . . . . .
Fluid Filter Outlet Size 1/4 npt(m). . . . . . . . . . . . . . . . . .
Fluid Filter Material aluminum, stainless steel, . . . . . . .
carbon steel
60 mesh (250 micron) reusable SST screen
Spray Hose Requirements grounded,. . . . . . . . . . . . . . .
50 ft (15 m) minimum, non-wire braid,
spring guards on both ends
Pump Material steel, nitralloy , tungsten carbide . . . . . .
Pump Packing Material UHMWPE, leather . . . . . . . . . .
Application
Sprays fluids from stains to most high builds and roof
coatings. Do not use with solvents such as methylene
chloride or other HHCs.
Dimensions
Height 48 in. (1219 mm) . . . . . . . . . . . . . . . . . . . . . . . . . .
Length 48 in. (1219 mm). . . . . . . . . . . . . . . . . . . . . . . . . .
Width 29 in. (736 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight 465 lb (21 1 kg) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P .O. BOX 1441
MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1989, GRACO INC.
PRINTED IN U.S.A. 3Z7–615 August 1995
TO PLACE AN ORDER , call
1–800–367–4023 T oll Free
FOR TECHNICAL ASSIST ANCE , call
1–800–543–0339 T oll Free
