Graco GX-16 - Shutoff Valve Setup; Mounting

Setup
12 313536U
11. Install chemical hoses to gun. See FIG. 5 on page
10 and F
IG. 9.
Shutoff Valve Setup
The shutoff valves are used to control chemical flow.
1. Perform pressure relief procedure. See Pressure
Relief Procedure on page 15.
2. Use four chemical hoses to connect shutoff valves
to gun. See F
IG. 10.
3. Perform gun setup procedure to connect remaining
hoses. See Gun Setup on page 11.
4. Perform Startup procedure on page 13.
Mounting
Use the following mounting dimensions to mount the
GX-16 gun body.
F
IG. 9

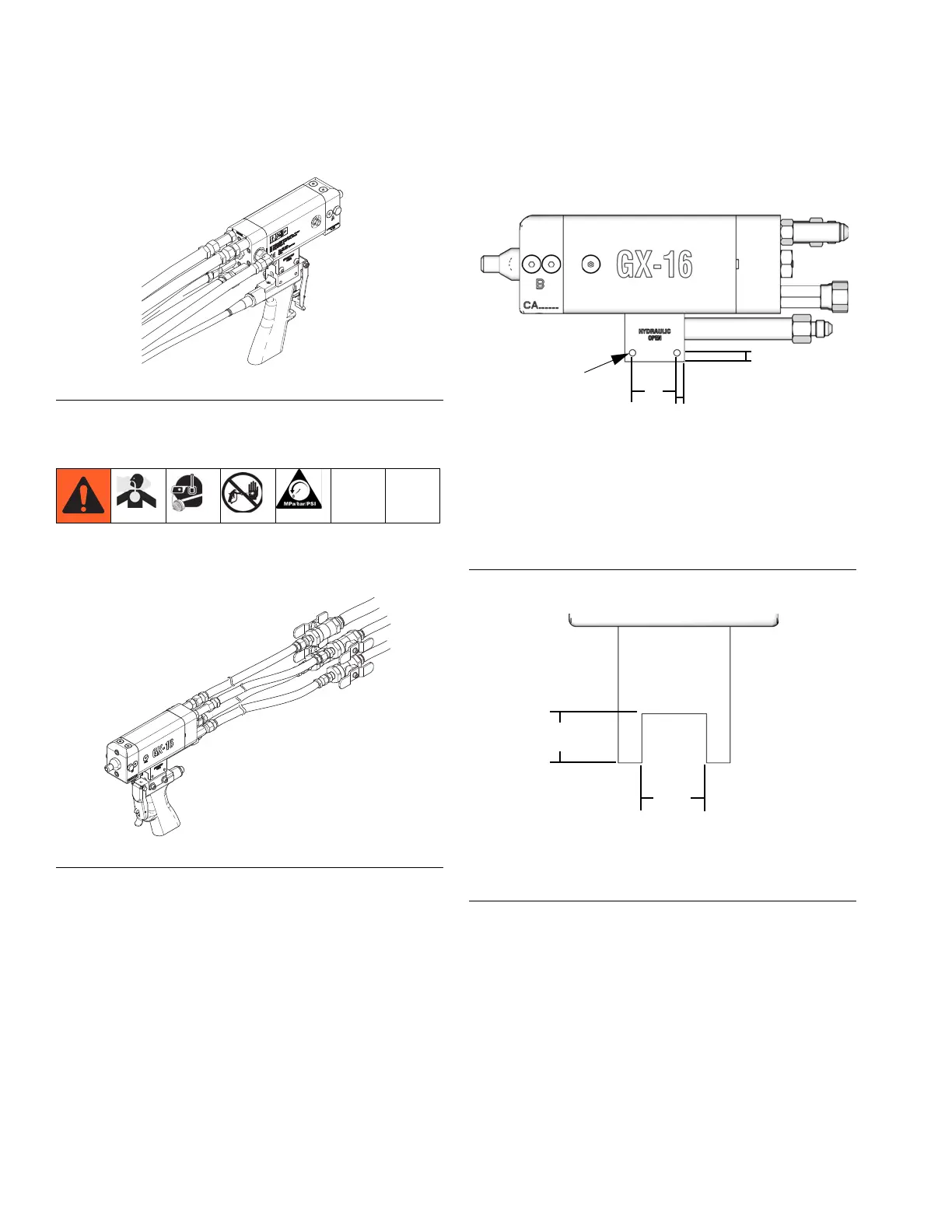

FIG. 10: Shutoff Valve Setup
ti18184a
ti18185a
FIG. 11: Mounting Hole Dimensions
F
IG. 12: Mounting Block Dimensions
A
B
ti14493a
A Width: 1.125 in. (28.58 mm)
B Diameter: 0.159 in. (4.04 mm),
10/32 UNF Thread on one side
C From edge: 0.188 in. (4.78 mm)
D From edge: 0.218 in. (5.54 mm)
D
C
A Width: 0.578 in. (14.7 mm)
B Height: 0.440 in. (11.2 mm)
A
B
ti14492a
