Parts
313536U 37

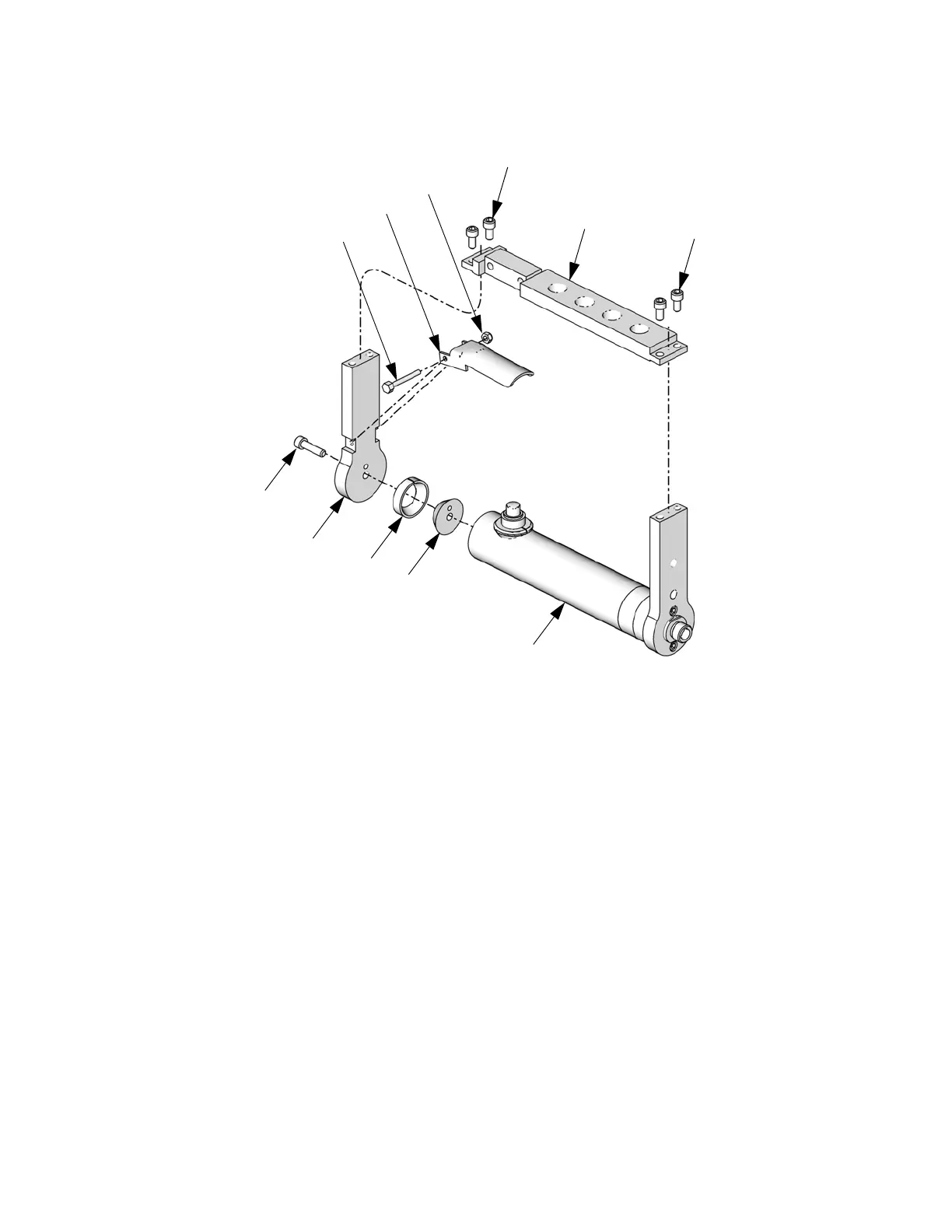

Pour Handle Models 257594, 257596
Model 257594 shown
ti14499a
1007
1010
1005
1006
1003
1004
1008
1001
1009
1002
1002
Ref. Part Description Qty
1001 295438 NUT, stop, elastic, 5-40 1
1002 122746 SCREW, shc, 10-32x.375, ms, nyloc 4
1003 257595 CONTROL, circular connector/led
(assembly 257594 only)
1
257597 CONTROL, star-shaped connector/led
(assembly 257596 only)
1
1004 295671 SCREW, mounting, trigger 1
1005 15Y276 CLIP, expander, female 1
1006 257593 CHOCK, male expander, w/pin 1
1007 122747 SCREW, shc, 110-32x0.75, ms 1
1008 15Y277 TRIGGER, pour gun 1
1009 15Y278 MODULE, pour handle mount, w/holes 1
1010 15Y280 FLANGE 1
