Graco GX-16 - Gun Handle Models 257509, 257510

Parts
34 313536U

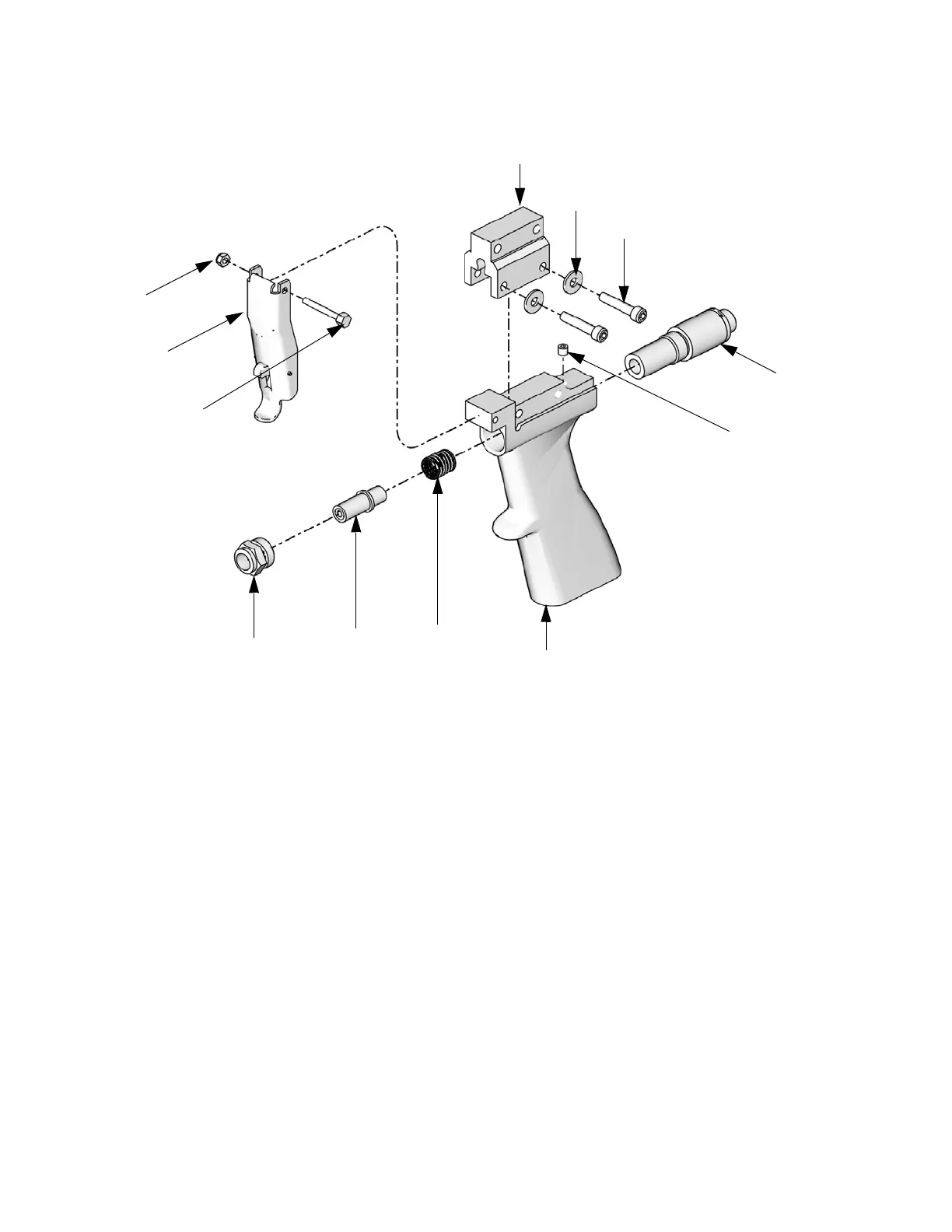

Gun Handle Models 257509, 257510
Model 257510 shown
ti13383a
806
805
804
801
802
803
812
810
809
807
808
811
Ref. Part Description Qty
801 257576 HANDLE 1
802 112095 SCREW, set 1
803 257578 SWITCH, trigger 1
804 299650 SPRING 1
805 257577 PLUNGER, spring 1
806 15Y159 NUT, retainer 1
807 257579 TRIGGER, safety, gun 1
808 295671 SCREW, mounting, trigger 1
809 295438 NUT, stop, elastic, 5-40 1
810 15Y160 ISOLATOR, handle
(Model 257510 only)
1
811 122706 WASHER, flat, #10, ms, 1/2od, 0.49 thick
(Model 257510 only)
2
812 105210 SCREW, 10-32 x 1 shcs (matrix)
(Model 257510 only)
2
