Graco GX-16 - Optional Shutoff Valve Kit

Parts
38 313536U

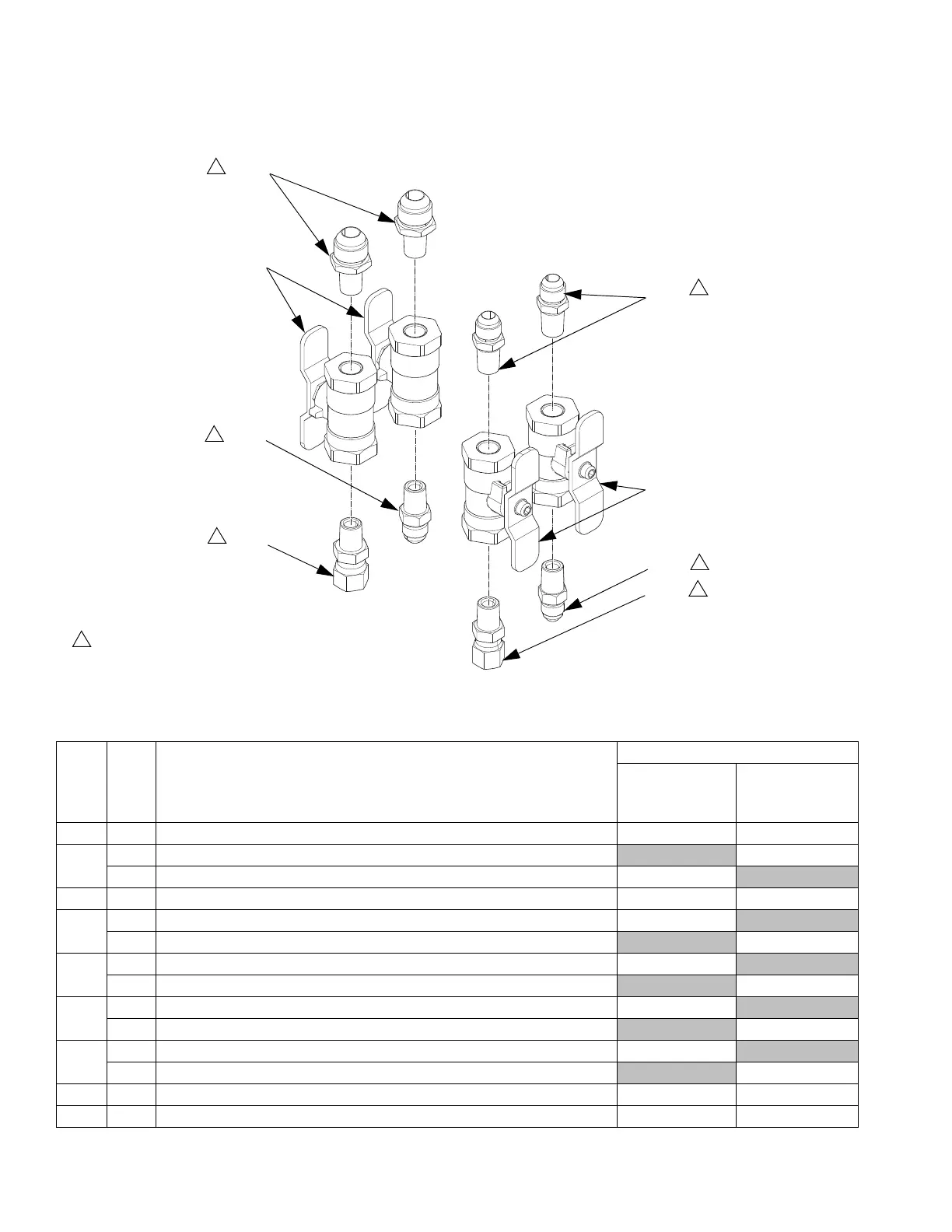

Optional Shutoff Valve Kit
ti18187a
1102
1101
1104
1107
1105
1106
1101
1103
1
Apply items 8 and 9 as required
1
1
1
1
1
1
24L498 Shown
Ref. Part Description
Quantity
24L498, KIT,
valve shutoff,
GX-16
24M596, KIT,
valve shutoff,
GX-16, NVH
1101 --- VALVE, ball, 2 way, 1/4 NPT, female 4 4
1102 --- ADAPTER, 1/2-20 JIC x 1/4 NPT 2
--- ADAPTER, JIC08x1/4, MS 2
1103 --- ADAPTER, JIC06x1/4, SS 2 2
1104 --- ADAPTER, JIC06x1/4 NPT, MS 1
--- ADAPTER, swivel, JIC05x1/4 NPT, MS 1
1105 --- ADAPTER, swivel, JIC06x1/4 NPT, MS 1
--- ADAPTER, swivel, JIC05x1/4 NPT, MS 1
1106 --- ADAPTER, JIC05x1/4 NPT, SS 1
--- ADAPTER, swivel, JIC06x1/4 NPT, MS 1
1107 --- ADAPTER, swivel, 1/4 NPTxJIC05, SS 1
--- ADAPTER, swivel, JIC06x1/4 NPT, MS 1
1108 --- TAPE, TFE, sealant 1 1
1109 --- SEALANT, pipe, SST 1 1
