Graco Magnum ProX7 User Manual

Setup
312001B 11

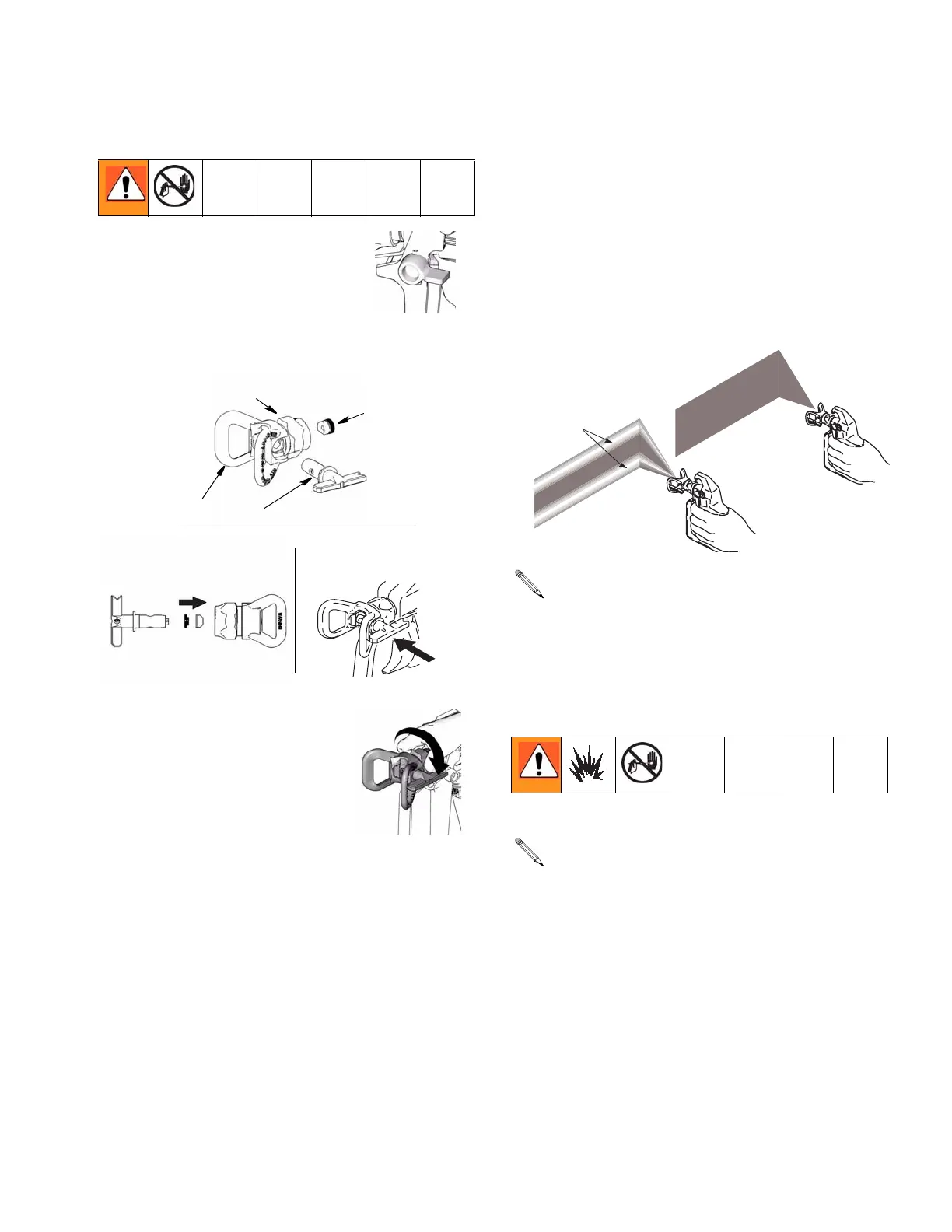

Install Tip and Guard on Gun
1. Engage trigger lock.
2. Verify tip and guard parts are assembled in order
shown.
3. Screw tip and guard assembly
on gun. Tighten retaining nut.
Spraying Techniques
Preventing Excessive Tip Wear
• Spray should be atomized (evenly distributed, no
gaps at edges). Start at low pressure setting,
increase pressure a little at a time until you see a
good spray pattern, without tails.
• Spray at lowest pressure that atomizes paint.
• If maximum sprayer pressure is not enough for a
good spray pattern, tip is too worn. See Reversible
Spray Tip Selection Chart, page 13.
Adjust Spray Pressure
This sprayer is set up for most airless spraying applica-
tions. Details on tip selection, tip wear, coat thickness,
etc. are provided on page 12.
Align setting indicator with function symbol on Pressure
Control knob, page 8.
• Turning knob to right (clockwise), increases
pressure at gun.
• Turning it left (counter-clockwise), decreases
pressure.
• General spraying instructions are provided in
Getting Started with Basic Spraying Techniques
section of this manual, page 14.
ti8908a
retaining nut
black rubber gasket and
guard
tip
ti8911a
metal seat
TIA
Use tip to align seat
Tip must be pushed
all the way into guard
in guard
ti9574a
ti9313a
If tails persist when spraying at the highest
pressure, a smaller tip is needed or the material
may need to be thinned.
Motor only runs when gun is triggered. Sprayer is
designed to stop pumping when gun trigger is
released.
GOOD
SPRAYPATTERN
TAILSGAPS
ATEDGES
PRESSURE
TOOLOW
TIA
