Maintenance and Service
312001B 23
Maintenance and Service

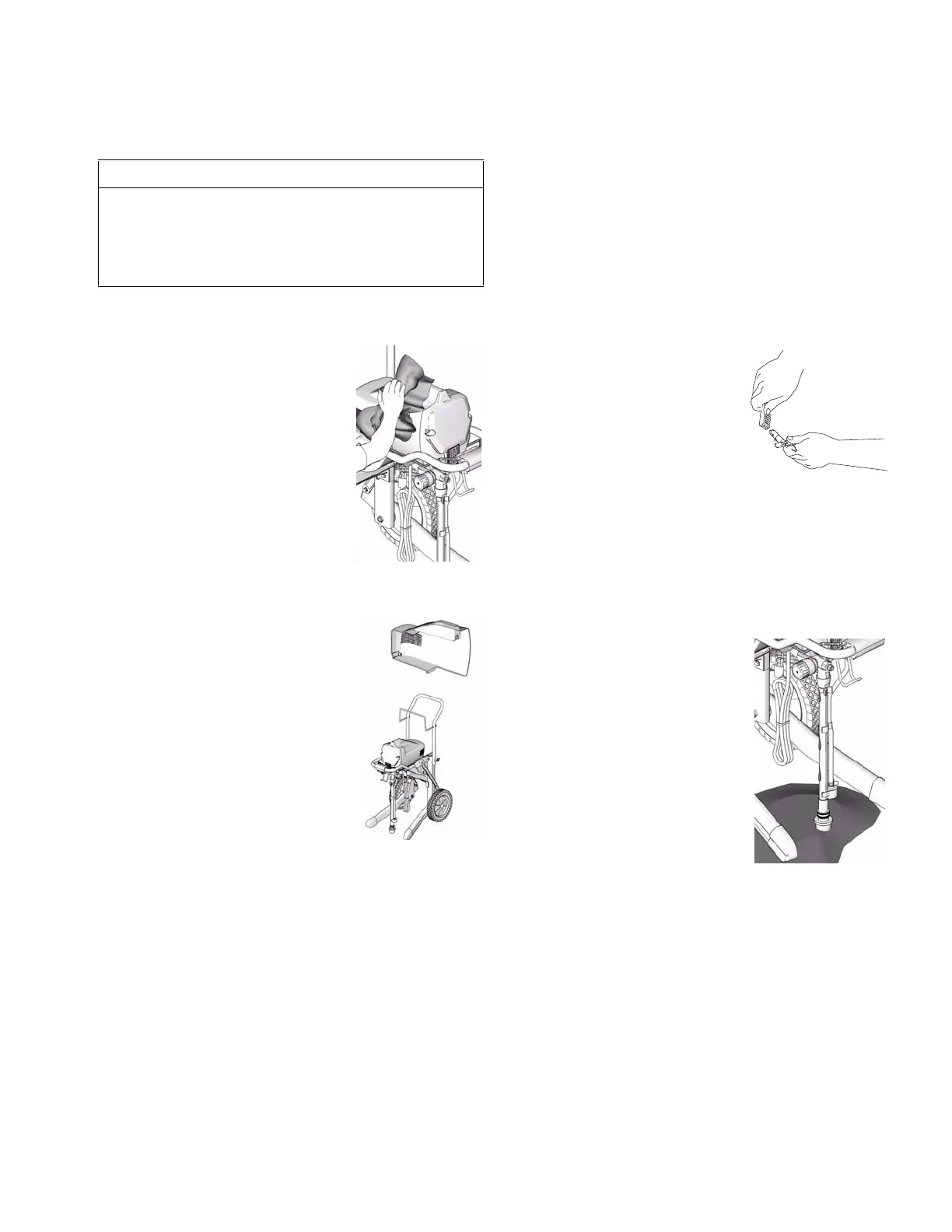

Caring for Sprayer
Keep sprayer and all accessories
clean and in good working order.
To avoid overheating motor, keep
vent holes in shroud clear for air
flow.
Do not cover sprayer while spraying.
Paint Hoses
Check hose for damage every time you spray. Do not
attempt to repair hose if hose jacket or fittings are dam-
aged. Wrench tighten, using two wrenches.
Tips
• Always clean tips with com-
patible solvent and brush
after spraying.
• Tips may require replace-
ment after 15 gallons (57
liters) or they may last
through 60 gallons (227
liters) depending on abra-
siveness of paint.
• Do not spray with worn tip.
Pump Packings
When pump packings wear, paint
will begin to leak down outside of
pump.
• Replace pump packings at
first sign of leaking or addi-
tional damage could occur.
• Purchase a pump repair kit
and install according to
instructions provided with kit.
• Consult a Graco/M
AGNUM
authorized service center.
CAUTION
Protect the internal drive parts of this sprayer
from water. Openings in shroud allow cooling of
mechanical parts and electronics inside. If water gets
into these openings, the sprayer could malfunction or
be permanently damaged.
ti9354a
ti9355a
WLD
ti9356a
