Setup
12 312001B

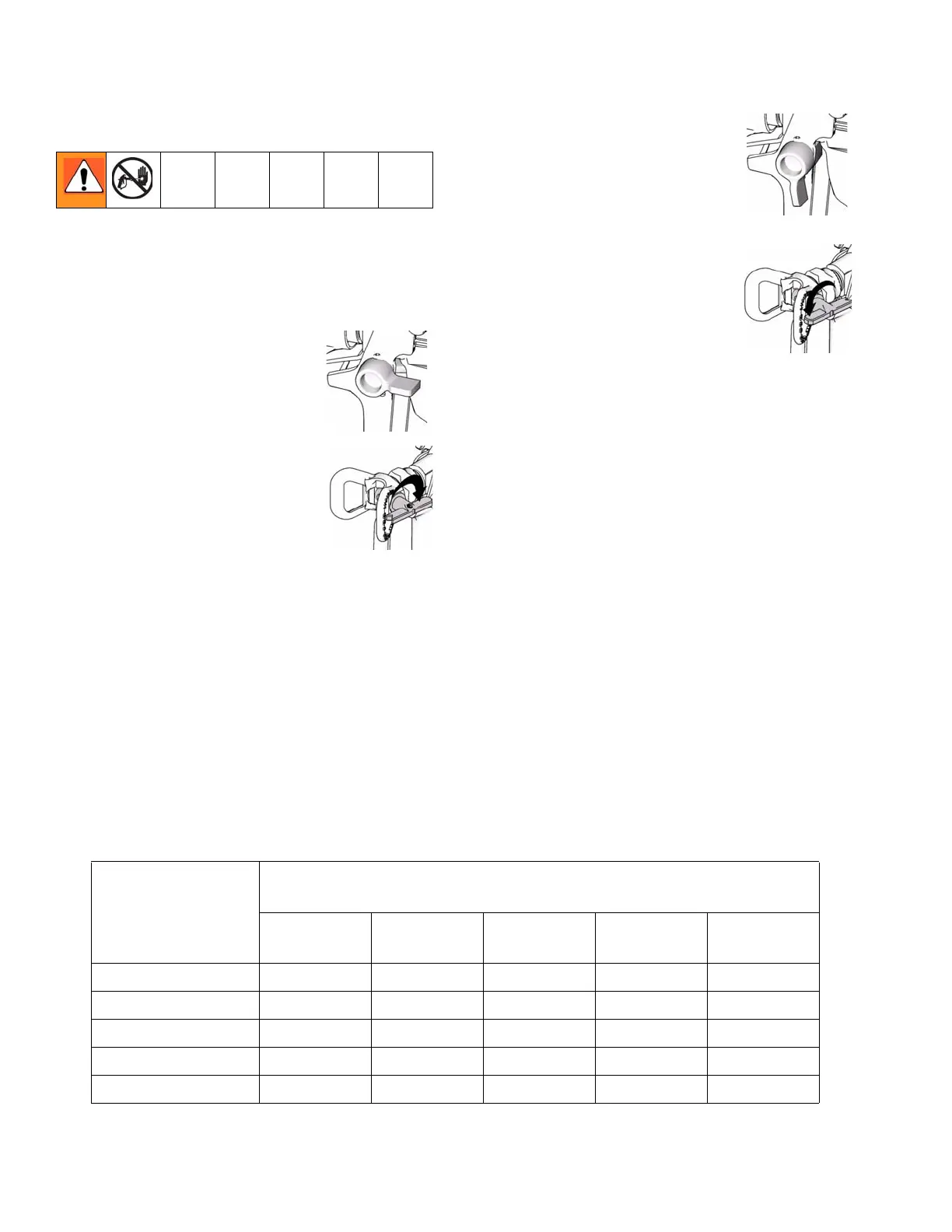

Unclogging Spray Tip
To avoid fluid splashback:
• Never pull gun trigger when arrow-shaped handle is
between SPRAY and UNCLOG positions.
• Tip must be pushed all the way into guard.
1. To UNCLOG tip obstruction,
engage trigger lock.
2. Point arrow-shaped handle back-
ward to UNCLOG position.
3. Aim gun at piece of scrap or
cardboard.
4. unlock trigger lock. Pull trigger to
clear clog.
5. When obstruction is cleared,
engage trigger lock and rotate
arrow-shaped handle back to
SPRAY position.
Point the arrow-shaped handle on the spray tip forward
to SPRAY and backward to UNCLOG obstructions.
Tip Selection
Selecting Tip Hole Size
Tips come in a variety of hole sizes for spraying a range
of fluids. Your sprayer includes an 0.015 in (0.38 mm) tip
for use in most spraying applications. Use the following
table to determine the range of recommended tip hole
sizes for each fluid type. If you need a tip other than the
one supplied, see the Reversible Tip Selection Chart
on page 13.
HINTS:
• As you spray, the tip wears and enlarges. Starting
with a tip hole size smaller than the maximum will
allow you to spray within the rated flow capacity of
the sprayer.
• Maximum tip hole sizes supported by the sprayer:
– ProX7: 0.017 in. (0.43 mm)
– ProX9: 0.019 in. (0.48 mm)
ti8908a
ti9048a
to8909a
ti9049a
Coatings
Tip Hole Size
Stains Enamels Primers
Interior
paints
Exterior
paints
0.011 in. (0.28 mm)
✔
0.013 in. (0.33 mm)
✔✔✔
✔
0.015 in. (0.38 mm)
✔✔✔✔
0.017 in. (0.43 mm)
✔✔✔
0.019 in. (0.48 mm)
✔
