Graco Mark X User Manual

LED Display
34 3A6342A

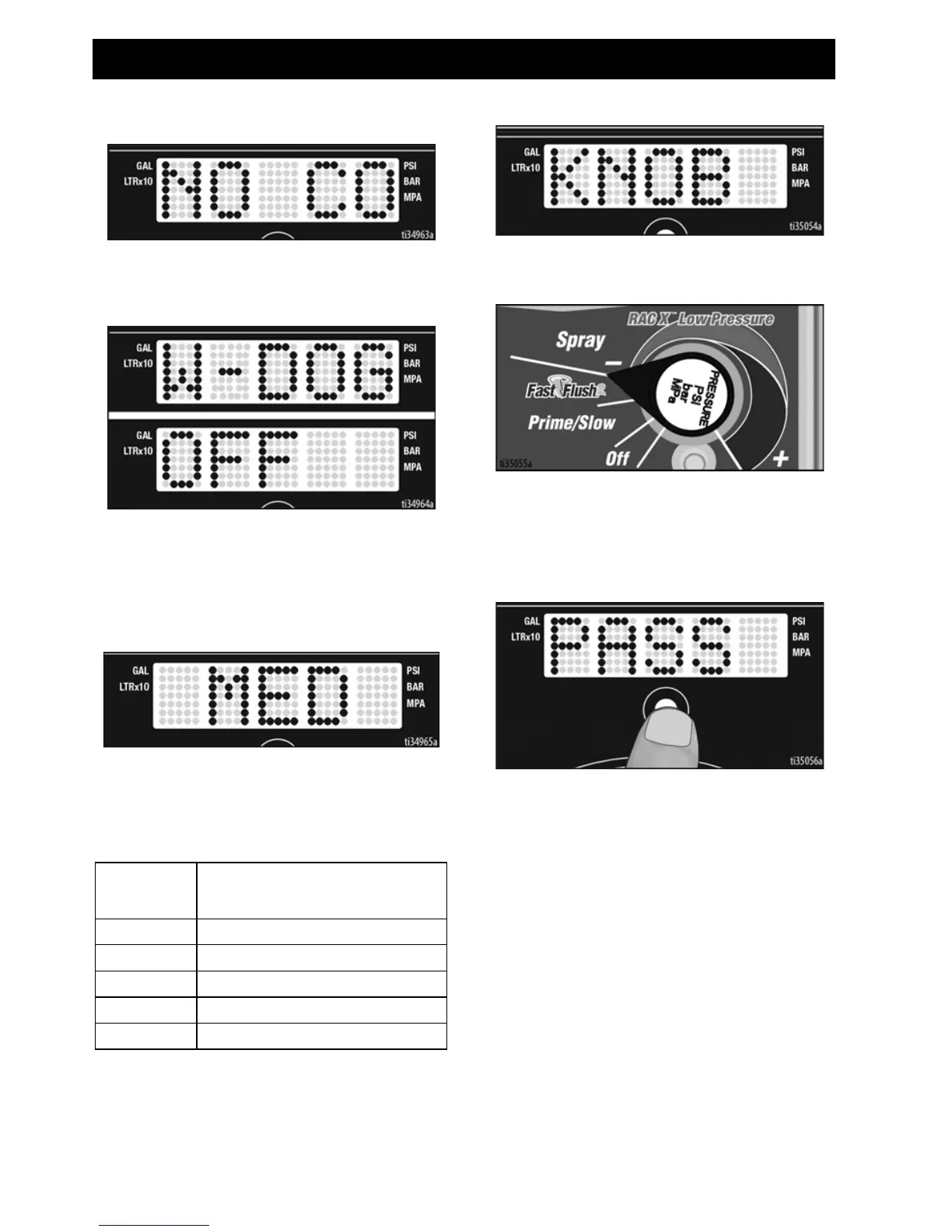

6. Press and hold DISPLAY button
to clear code. NO CODE STORED will
be displayed after clearing the code
7. Short press DISPLAY button. W-DOG
is displayed then OFF displays if watch-
dog is OFF. ON displays if Watchdog is
ON.
8. Short press DISPLAY button to move
to WatchDog sensitivity menu. Press
and hold DISPLAY button and Watch-
dog can be set to low, medium, or high
sensitivity. Release DISPLAY button
when desired sensitivity setting is dis-
played. Default is medium.
9. Short press DISPLAY button to move
to SOFTWARE REV.
10. Short press DISPLAY button. MOTOR
ID RESISTOR scrolls by and model
code number (see below).
11. Short press DISPLAY button to move
to Pressure Control Knob Calibration.
KNOB displays. If you wish to calibrate
the Pressure Control Knob, follow the
procedure below. Otherwise, short
press the DISPLAY button to return to
SERIAL NUMBER.
a. Align the Pressure Control Knob to
the line between Fast Flush and the
minus (-) symbol.
b. Press and hold DISPLAY button to
calibrate the Pressure Control
Knob. PASS is displayed if the knob
is aligned correctly, then the menu
returns to SERIAL NUMBER. Knob
calibration is complete.
NOTE: If the knob is not aligned correctly,
FAIL displays, then KNOB displays again.
Ensure the Pressure Control Knob is aligned
correctly, then try the calibration procedure
again.
Motor ID
Number Models
0 695/230V Mark IV
2 795 / 120V Mark IV
4 1095 / 230V Mark V
6 1595 / 120V Mark V / Mark VII
10 Mark X
