Graco Merkur series User Manual

Parts
24 332245G

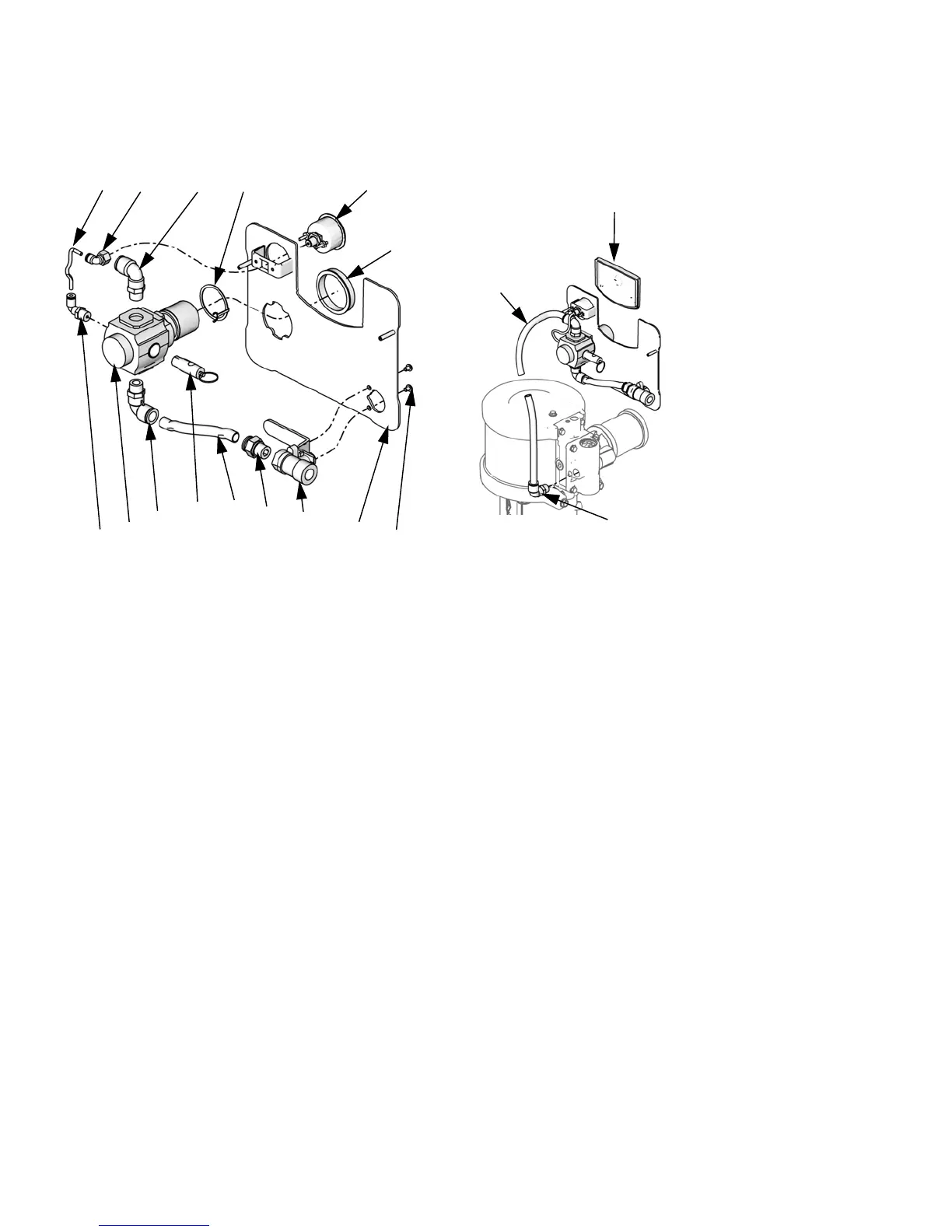

Pump Only Control Panel Kits
16U948, X48 Air Control Kit
16U947, X72 Air Control Kit
ti13567a
301
303
314
317
326
311
305
304
310
313
306
307 308 304
ti13567b
327
319
321
303
ti13468a
Ref. Part Description Qty.
301 114362 VALVE, ball 1
303 ----- TUBE, 1/2 OD, cut to fit,
order Tubing Kit 24D496
1.5 ft.
304 121212 ELBOW, swivel, 1/2T x 3/8 npt(m) 2
305 15T536 REGULATOR, air, 3/8 npt 1
306 ----- ELBOW, swivel, 5/32Tx1/4npt 1
307 ----- TUBE, black, cut to fit,
order Tubing Kit 24D496
5in.
308 ----- SWIVEL, 90°, 5/32T x 1/8 npt(f) 1
310 15T500 GAUGE, pressure 1
311 113498 VALVE, safety 1
313 15T538 NUT, regulator 1
314 114381 SCREW, cap, button head 2
317 ----- PANEL 1
318 ----- LABEL, panel (not shown) 1
319 ----- INSERT 1
320 105332 NUT, lock (not shown) 2
321 ----- ELBOW, 1/2T x 1/2 npt 1
322 ----- COVER, lens, 12 sticker sheet (not
shown), order Kit 24A540 for 5
sheets
1
326 ----- FITTING, straight, 1/2T x 3/8 npt(m) 1
327 24P814 RING, grounding 1
