Parts
332245G 23
16V175, Merkur X48 Pump System
16V174, Merkur X72 Pump System

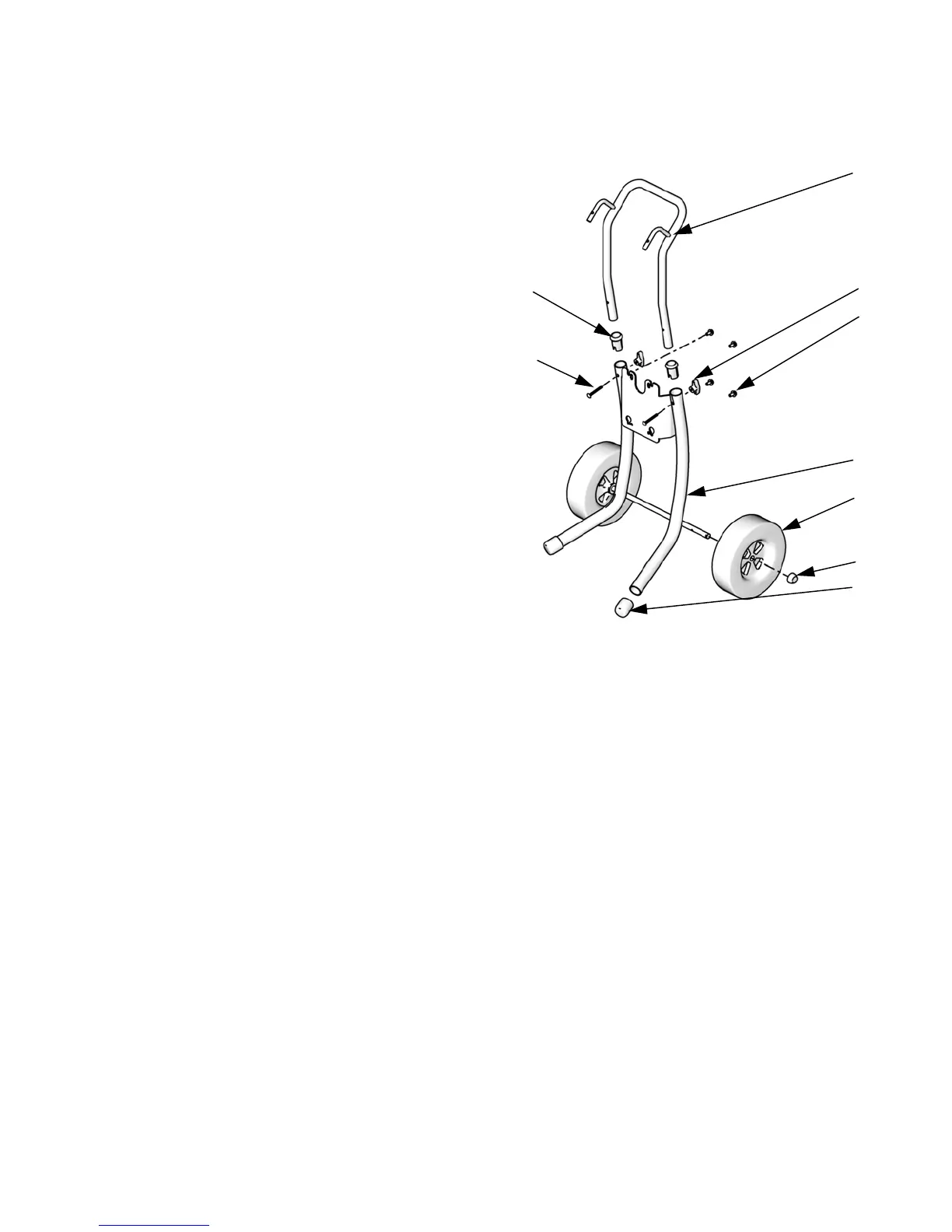

Cart Mount Kit 289694
Ref. Part Description Qty.
101 M18LN0 MOTOR, air, 7.5 in 1
102 16U916 LOWER, assy, 50cc; 16V174 1
16U917 LOWER, assy, 75cc; 16V175 1
103 15T392 ADAPTER, pump lower 1
104 15M662 ROD, tie 3
105 15U606 NUT, lock, m16 x 2 3
106 15T311 NUT, coupler 1
107 184128 COLLAR, coupling 2
108 111799 SCREW, cap, hex hd 4
109 238909 WIRE, grounding assembly 1
110 289694 KIT, cart 1
118 16U944 GUARD, spring 1
Ref. Part Description
Qty
.
201 ----- CART, frame 1
202 ----- HANDLE, cart 1
203 15C871 CAP, leg 2
204 ----- SLEEVE, cart handle 2
205 119451 WHEEL, semi-pneumatic 2
206 119452 CAP, hub 2
207 115480 KNOB, t-handle 2
208 116630 SCREW, carriage 2
209 111799 SCREW, cap, M8 x 1.25 4
201
202
203
204
205
206
207
208
209
ti12634a
To Next Page
