Performance Charts
26 332245G
Performance Charts
Calculate Fluid Outlet Pressure
To calculate fluid outlet pressure (psi/MPa/bar) at a spe-
cific fluid flow (gpm/lpm) and operating air pressure
(psi/MPa/bar), use the following instructions and pump
data charts.
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected
fluid outlet pressure curve. Follow left to scale to
read fluid outlet pressure.
Calculate Pump Air Flow/Consumption
To calculate pump air flow/consumption (scfm or
m
3
/min) at a specific fluid flow (gpm/lpm) and air pres-
sure (psi/MPa/bar), use the following instructions and
pump data charts.
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected
air flow/consumption curve. Follow right to scale to
read air flow/consumption

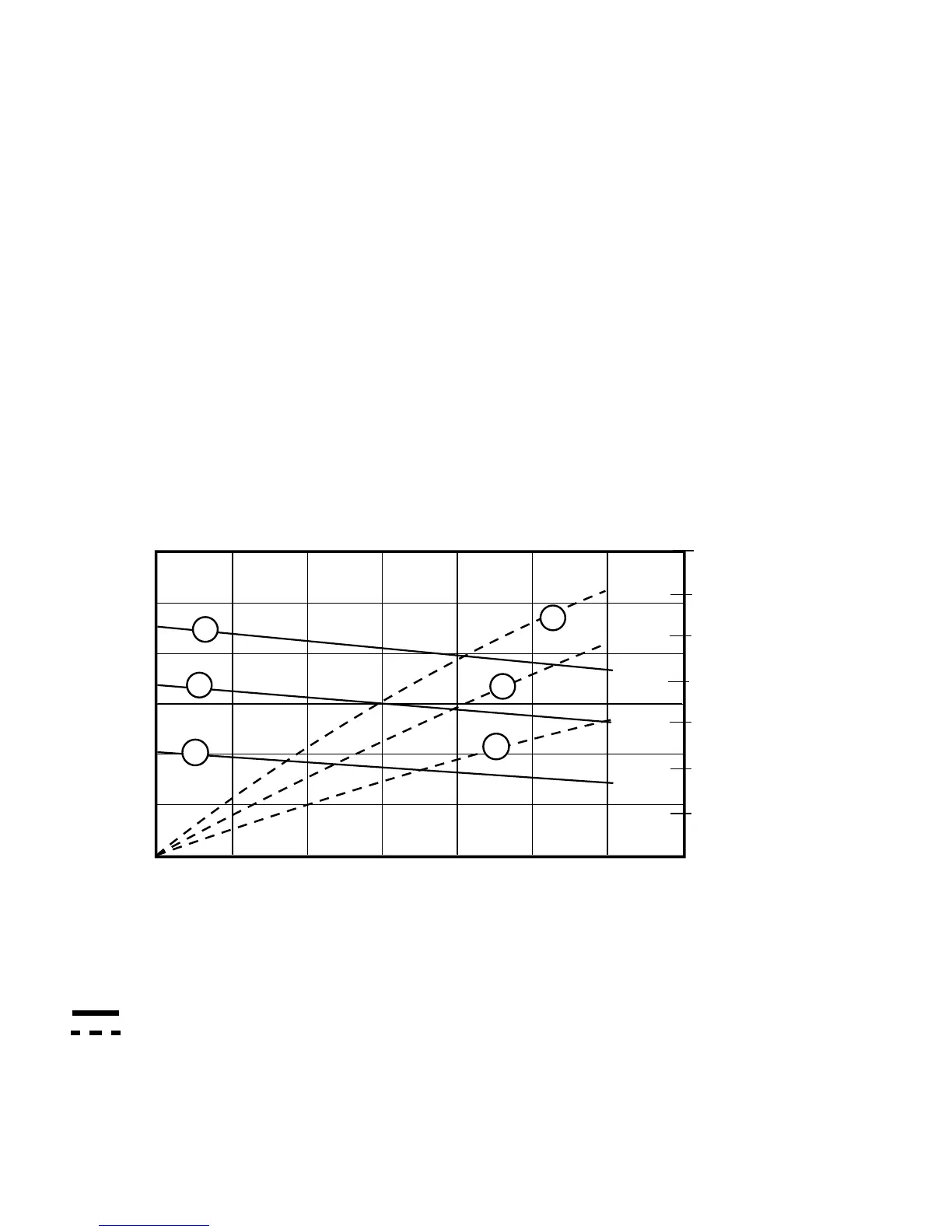

Merkur X48
48:1 Ratio, 75 cc/cycle
Cycles per Minute
0
0
Fluid Flow gpm (lpm) tested in No. 10 weight oil
Fluid Outlet Pressure psi (MPa, bar)
Air Flow scfm (m
3
/min)
0.2
(0.75)
0.4
0.6
0.8
1.0
(1.5)
(2.3)
(3.0)
(3.8)
1.2
(4.5)
10
20 30
40
50 60
1000
(7, 70)
3000
4000
5000
6000
(14, 140)
(21, 210)
(28, 280)
(35, 350)
(42, 420)
2000
10
20
30
40
50
60
(0.3)
(0.6)
(0.9)
(1.1)
(1.4)
(1.7)
A
B
C
A
B
C
Key:
A 100 psi (0.69 MPa, 6.9 bar)
B 70 psi (0.48 MPa, 4.8 bar)
C 40 psi (0.28 MPa, 2.8 bar)
Fluid Flow
Air Flow
